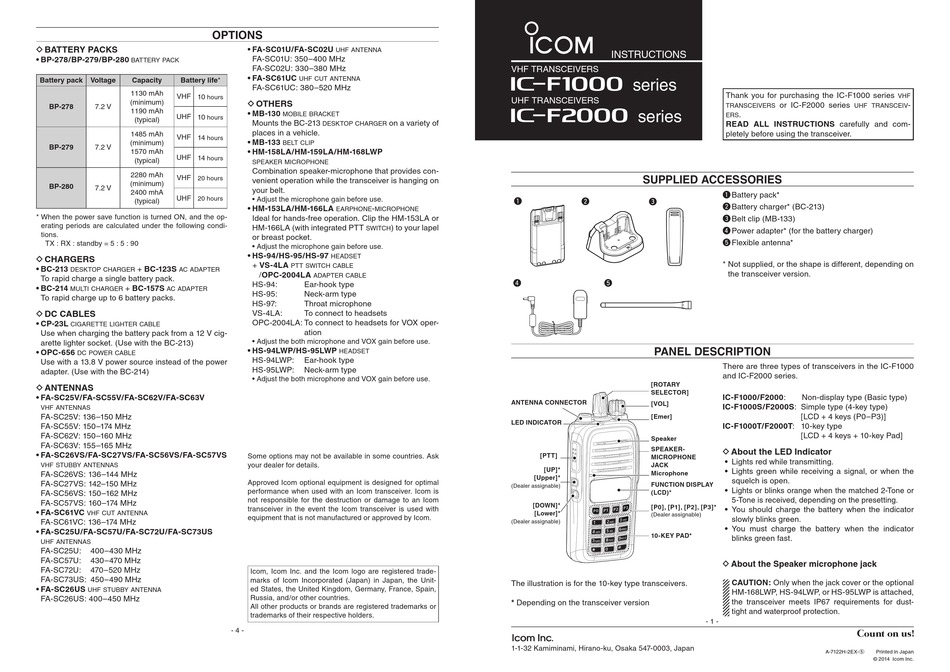

Icom IC-F1000 SERIES Instructions

OPTIONS
D BATTERY PACKS
• BP-278/BP-279/BP-280
battery pack
Battery pack Voltage Capacity Battery life*
1130 mAh
VHF 10
hours
(minimum)
BP-278 7.2 V
1190 mAh
UHF 10
hours
(typical)
1485 mAh
VHF 14
hours
(minimum)
BP-279
7.2 V
1570 mAh
UHF 14
hours
(typical)
2280 mAh
VHF
20 hours
(minimum)
BP-280
7.2 V
2400 mhA
UHF
20 hours
(typical)
* When the power save function is turned ON, and the op-
erating periods are calculated under the following condi-
tions.
TX : RX : standby = 5 : 5 : 90
D CHARGERS
• BC-213 + BC-123S
desktop charger ac adapter
To rapid charge a single battery pack.
• BC-214 + BC-157S
multi charger ac adapter
To rapid charge up to 6 battery packs.
D DC CABLES
• CP-23L
cigarette lighter cable
Use when charging the battery pack from a 12 V cig-
arette lighter socket. (Use with the BC-213)
• OPC-656
dc power cable
Use with a 13.8 V power source instead of the power
adapter. (Use with the BC-214)
D ANTENNAS
• FA-SC25V/FA-SC55V/FA-SC62V/FA-SC63V
vhf antennas
FA-SC25V: 136–150 MHz
FA-SC55V: 150–174 MHz
FA-SC62V: 150–160 MHz
FA-SC63V: 155–165 MHz
• FA-SC26VS/FA-SC27VS/FA-SC56VS/FA-SC57VS
vhf stubby antennas
FA-SC26VS: 136–144 MHz
FA-SC27VS: 142–150 MHz
FA-SC56VS: 150–162 MHz
FA-SC57VS: 160–174 MHz
• FA-SC61VC
vhf cut antenna
FA-SC61VC: 136–174 MHz
• FA-SC25U/FA-SC57U/FA-SC72U/FA-SC73US
uhf antennas
FA-SC25U: 400–430 MHz
FA-SC57U: 430–470 MHz
FA-SC72U: 470–520 MHz
FA-SC73US: 450–490 MHz
• FA-SC26US
uhf stubby antenna
FA-SC26US: 400–450 MHz
• FA-SC01U/FA-SC02U
uhf antenna
FA-SC01U: 350–400 MHz
FA-SC02U: 330–380 MHz
• FA-SC61UC
uhf cut antenna
FA-SC61UC: 380–520 MHz
D OTHERS
• MB-130
mobile bracket
Mounts the BC-213 on a variety of
desktop charger
places in a vehicle.
• MB-133
belt clip
• HM-158LA/HM-159LA/HM-168LWP
speaker microphone
Combination speaker-microphone that provides con-
venient operation while the transceiver is hanging on
your belt.
• Adjust the microphone gain before use.
• HM-153LA/HM-166LA -
earphone microphone
Ideal for hands-free operation. Clip the HM-153LA or
HM-166LA (with integrated ptt ) to your lapel
switch
or breast pocket.
• Adjust the microphone gain before use.
• HS-94/HS-95/HS-97
headset
+ VS-4LA
ptt switch cable
/OPC-2004LA
adapter cable
HS-94: Ear-hook type
HS-95: Neck-arm type
HS-97: Throat microphone
VS-4LA: To connect to headsets
OPC-2004LA: To connect to headsets for VOX oper-
ation
• Adjust the both microphone and VOX gain before use.
• HS-94LWP/HS-95LWP
headset
HS-94LWP: Ear-hook type
HS-95LWP: Neck-arm type
• Adjust the both microphone and VOX gain before use.
Some options may not be available in some countries. Ask
your dealer for details.
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver. Icom is
not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with
equipment that is not manufactured or approved by Icom.
Icom, Icom Inc. and the Icom logo are registered trade-
marks of Icom Incorporated (Japan) in Japan, the Unit-
ed States, the United Kingdom, Germany, France, Spain,
Russia, and/or other countries.
All other products or brands are registered trademarks or
trademarks of their respective holders.
- 4 -
INSTRUCTIONS
VHF TRANSCEIVERS
Iç-F1000 series
UHF TRANSCEIVERS
Iç-F2000 series
SUPPLIED ACCESSORIES
q w e
r t
PANEL DESCRIPTION
[ROTARY
SELECTOR]
ANTENNA CONNECTOR
[VOL]
[Emer]
LED INDICATOR
Speaker
SPEAKER-
[PTT]
MICROPHONE
JACK
[UP]*
Microphone
[Upper]*
FUNCTION DISPLAY
(Dealer assignable)
(LCD)*
[DOWN]*
[P0], [P1], [P2], [P3]*
[Lower]*
(Dealer assignable)
(Dealer assignable)
10-KEY PAD*
The illustration is for the 10-key type transceivers.
* Depending on the transceiver version
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan

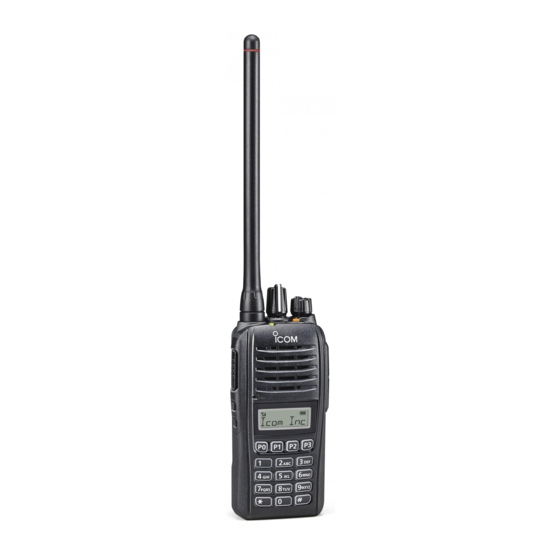

Thank you for purchasing the IC-F1000 series
or IC-F2000 series
transceivers uhf transceiv
.
ers
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
q Battery pack*
w Battery charger* (BC-213)
e Belt clip (MB-133)
r Power adapter* (for the battery charger)
t Flexible antenna*
* Not supplied, or the shape is different, depending on
the transceiver version.
There are three types of transceivers in the IC-F1000
and IC-F2000 series.
IC-F1000/F2000: Non-display type (Basic type)
IC-F1000S/F2000S: Simple type (4-key type)
[LCD + 4 keys (P0–P3)]
IC-F1000T/F2000T: 10-key type
[LCD + 4 keys + 10-key Pad]
D About the LED Indicator
• Lights red while transmitting.
• Lights green while receiving a signal, or when the
squelch is open.
• Lights or blinks orange when the matched 2-Tone or
5-Tone is received, depending on the presetting.
• You should charge the battery when the indicator
slowly blinks green.
• You must charge the battery when the indicator
blinks green fast.
D About the Speaker microphone jack
CAUTION: Only when the jack cover or the optional
HM-168LWP, HS-94LWP, or HS-95LWP is attached,
the transceiver meets IP67 requirements for dust-
tight and waterproof protection.
- 1 -
A-7122H-2EX-t Printed in Japan
© 2014 Icom Inc.
