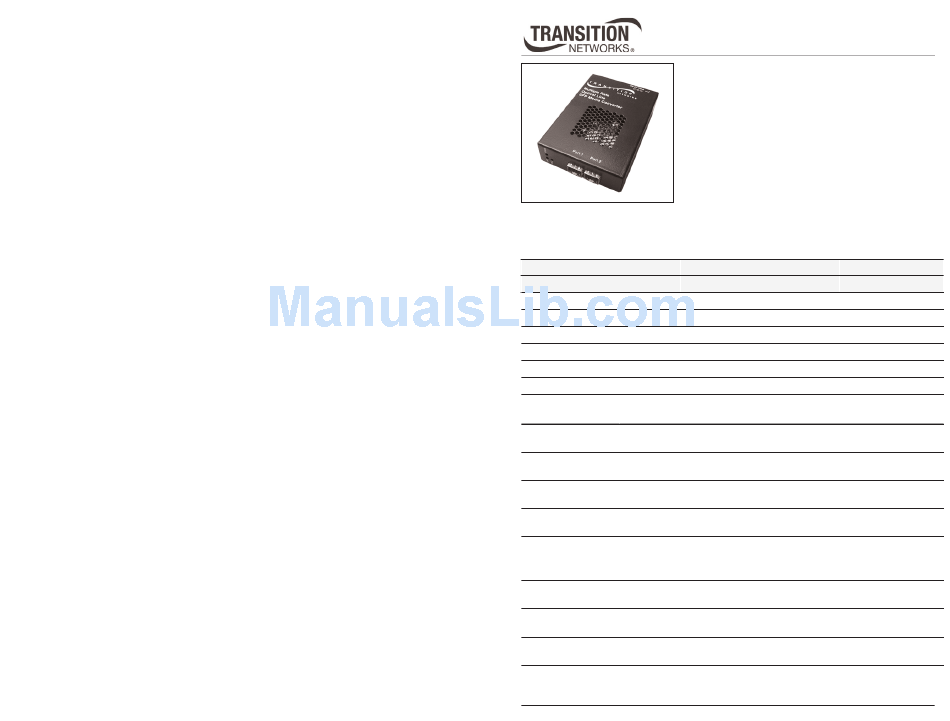

User's Guide
SFMFF4040-100
Optical Line Converter for
Small Form Factor Pluggable (SFP)
Transceiver Modules
The Transition Networks SFMFF4040-100 optical line
converter is designed to accommodate two (2) small
form factor pluggable (SFP) transceiver modules.
The following SFP transceiver modules are compatible with the SFMFF4040-100 converter
and are available from Transition Networks (sold separately).
Port 1
SFMFF4040-100
empty
Part Number
Description
TN-SFP-SX
LC, 1000Base-SX, 850 nm multimode, 220-500 mm (720-1640 ft)
TN-SFP-LX1
LC, 1000Base-LX, 1310 nm single mode, 10 km (6.2 miles), DMI
TN-SFP-LX3
LC, 1000Base-LX, 1310 nm single mode, 30 km (18.8 miles), DMI
TN-SFP-LX5
LC, 1000Base-LX, 1550 nm single mode, 50 km (31.2 miles), DMI
TN-SFP-LX8
LC, 1000Base-LX, 1550 nm single mode, 80 km (50.0 miles), DMI
TN-SFP-LX12
LC, 1000Base-LX, 1550 nm single mode, 120 km (74.56 miles)
DMI
TN-SFP-OC3M
LC, 100Base-FX/OC-3 SFP 1300 nm multimode 2km (1.2 miles),
DMI
TN-SFP-OC3S
LC, 100Base-FX/OC-3 SFP 1310 nm single mode 20km (12.4miles),
DMI
TN-SFP-OC12M
LC, OC-12/STM-4 SFP 1300 nm multimode 1 km (0.6 miles),
DMI
TN-SFP-OC12S
LC, OC-12/STM-4 SFP 1310 nm single mode 20 km (12.4 miles),
DMI
TN-SFP-FC2XM
LC, 2x/1x/OC-48/STM-16/1000Base-SX, 850 nm multimode, DMI,
150 m (492 ft)* on 62.5/125 µm fiber,
300 m (984ft)* on 50/125 µm fiber
TN-SFP-FC2XS2
LC, 2x/1x/OC-48/STM-16/1000Base-LX, 1310 nm single mode, 2
km (1.2 miles), DMI
TN-SFP-FC2XS15
C, 2x/1x/OC-48/STM-16/1000Base-LX, 1310 nm single mode, 15
km (9.3 miles), DMI
TN-SFP-FC2XS40
LC, 2x/1x/OC-48/STM-16/1000Base-LX, 1310 nm single mode, 40
km (24.9 miles), DMI
Port 2
empty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFMFF4040-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks SFMFF4040-100

  • Page 1 The Transition Networks SFMFF4040-100 optical line converter is designed to accommodate two (2) small form factor pluggable (SFP) transceiver modules. The following SFP transceiver modules are compatible with the SFMFF4040-100 converter and are available from Transition Networks (sold separately). Port 1...
  • Page 2: Installation

    NOTE: Third-party Multi-Source Agreement (MSA) compliant Small Form Factor Pluggables (SFPs) can be used in the SFMFF4040-100. With any two of Transition Networks SFP transceiver modules installed, the SFMFF4040-100 converter can perform the following mode and wavelength line conversions. Mode conversions: •...
  • Page 3: Operation

    SFMFF4040-100 Operation Status LEDs The SFMFF4040-100 optical line converter is designed to operate without user intervention. Use the status LEDs to view the operation of the converter in the network. PWR (Power) On = Connection to external power. (Fiber Link - Port 1) On = Fiber port 1 is receiving a signal.
  • Page 4: Troubleshooting

    Part Number: SFMFF4040-100 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SFMFF4040-100 to which this declaration refers is in conformity with the following standards. EN 55022:1998 Class A; EN 55024: 1998+A1+A13164:2002; FCC Part 15 subpart B; 21CFR subpart J I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
  • Page 5: Compliance Information

    Compliance Information CISPR22/EN55022 Class A + EN55024; CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
