J/RS232-xx-01
Installation
-- Continued

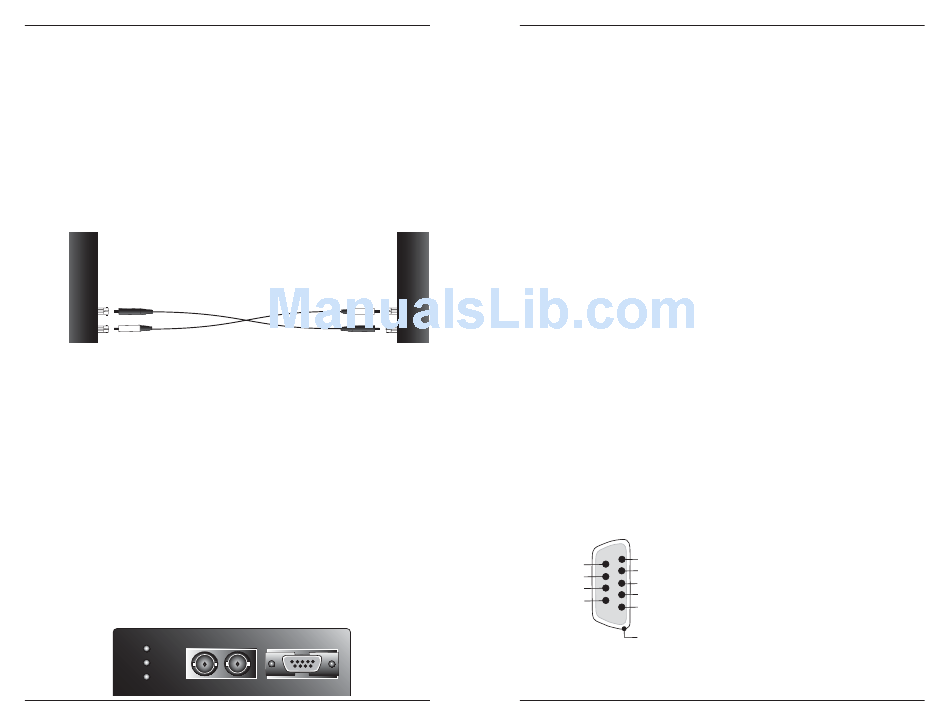

Install the Fiber Cable
1. Locate or build fiber cable with male, two-stranded TX to RX connectors
installed at both ends.
2. Connect the fiber cables to the first J/RS232-xx-01 media converter as
described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other J/RS232-xx-01 media converter as
described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
Connect the fiber cable
to the first media converter
as shown.
RX
TX
Power the Media Converter
NOTE: The external power supply provided with this product is UL listed by
the power supply's manufacturer.
• Connect the barrel connector on the power adapter to the media
converter's power port (located on the back of the media converter).
• Connect the power adapter plug to AC power. Verify that the media
converter is powered by observing the illuminated LED power indicator
light. (For DC power see the SPS1872-xx DC external power supply.)

Operation

Use the status LEDs to monitor the media converter operation in the network.
RX On = A link has been established with the RS-232 connector.
Flashing = The RS-232 connector is receiving data.
FL On = A link has been established with the fiber connector.
PWR On = The media converter is connected to external power.
TX
PWR
FL
RX
4
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Connect the fiber cable
to the second media
converter, as shown
RX
Fiber Fiber RS-232 RS-232

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.
Fiber Cable
Bit Error Rate:
Multimode fiber (recommended):
Multimode fiber (optional):
J/RS232-CF-01
Fiber Optic Transmitter Power:
Fiber Optic Receiver Sensitivity:
Link Budget:
J/RS232-CF-01(SC)
Fiber Optic Transmitter Power:
Fiber Optic Receiver Sensitivity:
Link Budget:
J/RS232-TF-01
Fiber Optic Transmitter Power:
Fiber Optic Receiver Sensitivity:
Link Budget:
J/RS232-TF-01(SC)
RX
Fiber Optic Transmitter Power:
TX
Fiber Optic Receiver Sensitivity:
Link Budget:
The fiber optic transmitters on this device meets Class I Laser safety
requirements per IEC-825/CDRH standards and complies with 21
CFR1040.10 and 21CFR1040.11.
RS-232 Cable
Gauge:
Maximum data rate:
Maximum Cable Distance:
RS-232 Signals:
6
7
8
9
NOTE: The J/RS232-xx-01 only uses pins 2, 3 and 5.
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
<10-9
62.5/125 µm
100/140, 85/140, 50/125 µm
1300 nm multimode
min: -19.0 dBm
min: -30.0 dBm
11.0 dB
1300 nm multimode
min: -19.0 dBm
min: -30.0 dBm
11.0 dB
1300 nm multimode
min: -19.0 dBm
min: -30.0 dBm
11.0 dB
1300 nm multimode
min: -19.0 dBm
min: -30.0 dBm
11.0 dB
24 to 22 AWG
120 Kb/s, asynchronous
15 m (50 ft)
1
2 Receive Data
3 Transmit Data
4
5 Signal Ground
max: -14.0 dBm
max: -14.0 dBm
max: -14.0 dBm
max: -14.0 dBm
max: -14.0 dBm
max: -14.0 dBm
max: -14.0 dBm
max: -14.0 dBm
5
