Port One - Copper Port Two - Duplex Fiber-Optic
J/GE-CF-01(SX)
RJ-45 1000Base-T
100 m (328 ft)*
J/GE-CF-01(LX1)
RJ-45 1000Base-T
100 m (328 ft)*
J/GE-CF-01(LX2)
RJ-45 1000Base-T
100 m (328 ft)*
J/GE-CF-01(LX6)
RJ-45 1000Base-T
100 m (328 ft)*
J/GE-CF-01(LX100) RJ-45 1000Base-T
100 m (328 ft)*
J/GE-CF-01(LX101) RJ-45 1000Base-T
100 m (328 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
User's Guide
J/GE-CF-01
Stand-Alone Media Converter
• Gigabit Ethernet
• Copper to Fiber
• 1000Base-T to 1000Base-SX/LX
Transition Networks J/GE-CF-01 gigabit
Ethernet media converter connects
1000Base-T shielded or unshielded
twisted-pair copper cable to 1000Base-
SX or 1000Base-LX, fiber-optic cable.
SC, 1000Base-SX, 850 nm multimode
220 m (722 ft)* (62.5/125
m cable)
µ
500 m (1,640 ft)* (50/125
m cable)
µ
SC, 1000Base-LX, 1310 nm single mode
10 km (6.2 miles)*
SC, 1000Base-LX, 1310 nm single mode
25 km (15.5 miles)*
SC, 1000Base-LX, 1550 nm single mode
65 km (40.4 miles)*
SC, 1000Base-LX, 1310(TX)/1550(RX)nm
single mode 20K (12.4 miles)
SC, 1000Base-LX, 1550(TX)/130(RX)nm
single mode 20K (12.4 miles)
Installation . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . .3
Cable Specifications . . . . . . . . .4
Technical Specifications . . . . .5
Troubleshooting . . . . . . . . . . . .6
Compliance Information . . . . .7
Advertisement
Table of Contents
Related Manuals for Transition Networks J/GE-CF-01(LX1)
Summary of Contents for Transition Networks J/GE-CF-01(LX1)

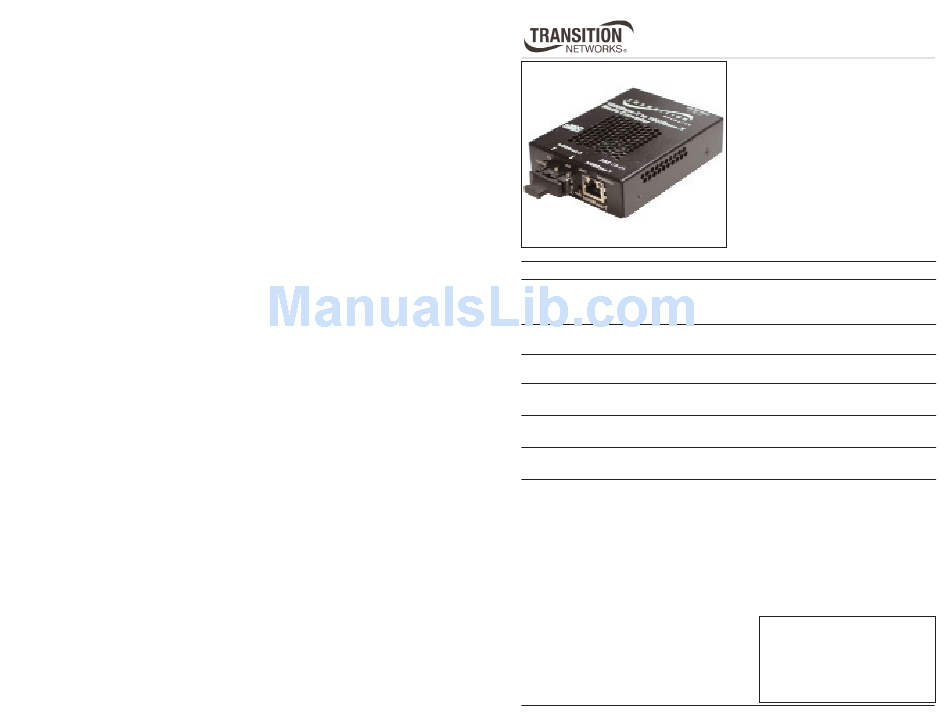

- Page 1 User’s Guide J/GE-CF-01 Stand-Alone Media Converter • Gigabit Ethernet • Copper to Fiber • 1000Base-T to 1000Base-SX/LX Transition Networks J/GE-CF-01 gigabit Ethernet media converter connects 1000Base-T shielded or unshielded twisted-pair copper cable to 1000Base- SX or 1000Base-LX, fiber-optic cable. Part Number Port One - Copper Port Two - Duplex Fiber-Optic J/GE-CF-01(SX) RJ-45 1000Base-T...
-
Page 2: Installation
J/GE-CF-01 Installation Install the Fiber Cable Locate or build 1000Base-SX/LX compliant fiber cable with male, two- stranded TX to RX connectors installed at both ends. Connect the fiber cables to the J/GE-CF-01 media converter as described: • Connect the male TX cable connector to the female TX port. •... -
Page 3: Cable Specifications
J/GE-CF-01 Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm J/GE-CF-01(SX) 850 nm multimode Fiber Optic Transmitter Power: min: -10.0 dBm Fiber Optic Receiver Sensitivity:... -
Page 4: Troubleshooting
952-941-7600, toll free: 800-526-9267, fax: 952-941-2322 Declaration of Conformity Name of Mfg: Transition Networks 6475 City West Pkwy, Minneapolis MN 55344 U.S.A. Model: J/GE-CF-01 Series Media Converters Part Number(s): J/GE-CF-01(SX), J/GE-CF-01(LX1), J/GE-CF-01(LX2), J/GE-CF-01(LX6), J/GE-CF-01(LX100), J/GE-CF-01(LX101) Regulation: EMC Directive 89/336/EEC... -
Page 5: Compliance Information
Compliance Information CISPR22/EN55022 Class A + EN55024; CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
