Part Number
Port One - Twisted-Pair
J/E-CX-TBT-02
RJ-45, 10Base-T
100 m (328 ft)*
* Typical maximum cable distance. The actual maximum cable distances are
dependent upon the physical characteristics of the network installation.
User's Guide
J/E-CX-TBT-02
Stand-Alone Media Converter
• Coax to twisted pair
• 10Base-2 to 10Base-T

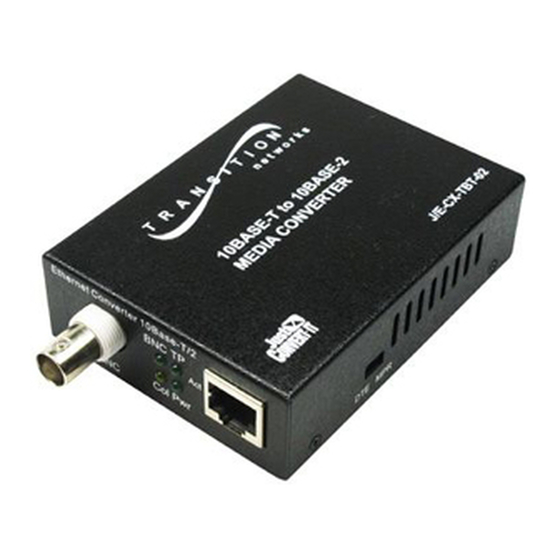

The Transition Networks J/E-CX-TBT-02
Ethernet media converter connects
10Base-T shielded or unshielded
twisted-pair copper cable to 10Base-2
coaxial copper cable.
The J/E-CX-TBT-02 supports up to 24
daisy-chained devices on one coax
segment per twisted-pair segment.
Port Two - Coax
BNC, 10Base-2
185 m (610 ft)*
Installation . . . . . . . . . . . . . . . . . .2
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . .7
Advertisement
Table of Contents
Related Manuals for Transition Networks J/E-CX-TBT-02
Summary of Contents for Transition Networks J/E-CX-TBT-02
- Page 1 User’s Guide J/E-CX-TBT-02 Stand-Alone Media Converter • Coax to twisted pair • 10Base-2 to 10Base-T The Transition Networks J/E-CX-TBT-02 Ethernet media converter connects 10Base-T shielded or unshielded twisted-pair copper cable to 10Base-2 coaxial copper cable. The J/E-CX-TBT-02 supports up to 24 daisy-chained devices on one coax segment per twisted-pair segment.
-
Page 2: Installation
J/E-CX-TBT-02 Installation -- continued Installation Install the coax cable Checklist 1. Locate or build 10Base-2 compliant coax cable with female, BNC The box should contain the following: connectors installed at both ends. • Converter 2. Connect the BNC cable connector at one end of the cable to the BNC port •... -
Page 3: Cable Specifications
J/E-CX-TBT-02 Technical Specifications Cable Specifications For the Transition Networks Model J/E-CX-TBT-02 or equivalent. 10Base-2 cable Standards: IEEE 802.3 Cable type: Stranded coaxial RG-58 Dimensions: 1" x 2.75" x 3.7" (26 mm x 71 mm x 94 mm) 50 Ω Impedance: Maximum cable distance: 185 m (610 ft.) Weight:... -
Page 4: Troubleshooting
J/E-CX-TBT-02 Troubleshooting Contact Us If the media converter fails, isolate and correct the fault by determining the Technical support answers to the following questions and then taking the indicated action: Technical support is available 24 hours a day. US and Canada: 1-800-260-1312 Is the PWR LED on the media converter illuminated? International:... -
Page 5: Compliance Information
Compliance Information CISPR22/EN55022 Class A CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
