User's Guide
SPS-1872-xx
External Power Supply
18-60 VDC and 24-30 VRMS
SPS-1872-CC
SPS-1872-PS
The Transition Networks SPS-1872-xx external power supply provides a wide range
of input power (18-60 VDC and 24-30 VRMS) to accommodate most industrial,
telecom, and commercial applications. The SPS-1872-xx can deliver 12 watts of
power, enough to power all Transition Networks stand-alone media converters as
well as the single-slot (p/n CPSMC0100-20x) and the dual-slot (p/n CPSMC0200-2xx)
chassis.
The 18-60 VDC input allows for the installation of the SPS-1872-xx external power
supply in all popular telecom, commercial, and industrial applications. The 24-30
VRMS input allows for installation of the SPS-1872-xx in remaining industrial
applications as well as HVAC and building control environments.
The 'piggy-back' feature of the SPS-1872-CC, SPS-1872-PS, and SPS-1872-DPS
allows it to physically attach to the media converter chassis and eliminate the power
cable between the power supply and the media converter.

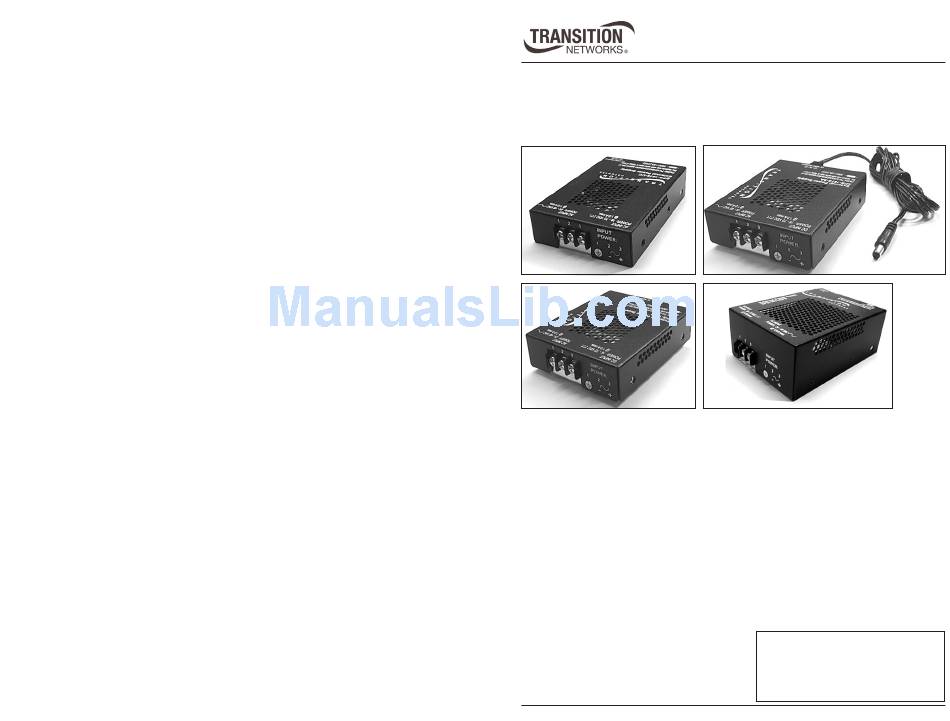

SPS-1872-CC (Conversion Center™)
SPS-1872-DPS (Dual PointSystem™)
SPS-1872-PS (PointSystem™)
SPS-1872-SA (Stand-Alone)
SPS-1872-SA
SPS-1872-DPS
Installation . . . . . . . . . . . . . . . . . .2
Maintenance . . . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Compliance Information . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Advertisement
Table of Contents
Related Manuals for Transition Networks SPS-1872-CC
Summary of Contents for Transition Networks SPS-1872-CC
- Page 1 VRMS input allows for installation of the SPS-1872-xx in remaining industrial applications as well as HVAC and building control environments. The 'piggy-back' feature of the SPS-1872-CC, SPS-1872-PS, and SPS-1872-DPS allows it to physically attach to the media converter chassis and eliminate the power cable between the power supply and the media converter.
-
Page 2: Installation And Service
SPS-1872-CC / SPS-1872-PS / SPS-1872-DPS The SPS-1872-CC, SPS-1872-PS, and SPS-1872-DPS are designed for three different types of media converters. Each has slightly different dimensions and each has the barrel connector in a different location to ensure that each power supply is used for the proper application. - Page 3 SPS-1872-CC (Conversion Center™) Remove the left-rear and right-rear screws from the Conversion Center™ media converter. Connect the barrel connector on the SPS-1872-CC to the power port of the media converter The flange of the SPS-1872-CC should slide over the rear of the media converter as the two devices are connected. The screw holes on the left and right sides should align.
- Page 4 SPS-1872-xx Installation -- Continued Supplying Power to the SPS-1872-xx CAUTION: The power source MUST BE TURNED OFF when connecting it to the SPS-1872-xx external power supply. Failure to observe this caution could result in damage to, and subsequent failure of, the SPS-1872-xx and any attached device.
-
Page 5: Technical Specifications
SPS-1872-SA - 3.875 x 3.125 x 1.0 in (98 x 79 x 25 mm) (length x width x height) SPS-1872-CC - 4.625 x 3.125 x 1.062 in (117 x 79 x 27 mm) SPS-1872-PS - 4.625 x 3.375 x 1.062 in (117 x 86 x 27 mm) SPS-1872-DPS - 4.625 x 3.375 x 1.75 in (117 x 86 x 45 mm) -
Page 6: Compliance Information
6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: SPS-1872-xx External Power Supply Part Number: SPS-1872-SA, SPS-1872-CC, SPS-1872-PS, SPS-1872-DPS Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SPS-1872-xx to which this declaration refers is in conformity with the following standards. - Page 7 Trademark Notice All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2003, 2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means –...
