Transition Networks J/FE-CF-03(LH) User Manual

Stand-alone media converter
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
to extend over fiber, the distance between two 100BASE-TX devices (hub, switch,
workstation, etc.).
Part Number
Port One - Copper
J/FE-CF-03
RJ-45, 100Base-TX
100 m (328 ft)*
J/FE-CF-03(SC) RJ-45, 100Base-TX
100 m (328 ft)*
J/FE-CF-03(SM) RJ-45, 100Base-TX
100 m (328 ft)*
J/FE-CF-03(LH) RJ-45, 100Base-TX
100 m (328 ft)*
Single Fiber Optic (install as a pair)
Part Number
Port One - Copper
J/FE-CF-03-100 RJ-45, 100Base-TX
100 m (328 ft)*
J/FE-CF-03-101 RJ-45, 100Base-TX
100 m (328 ft)*
Note: Install the J/FE-CF-03-100 and the J/FE-CF-03-101 in the same network as local
and remote peers.
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.

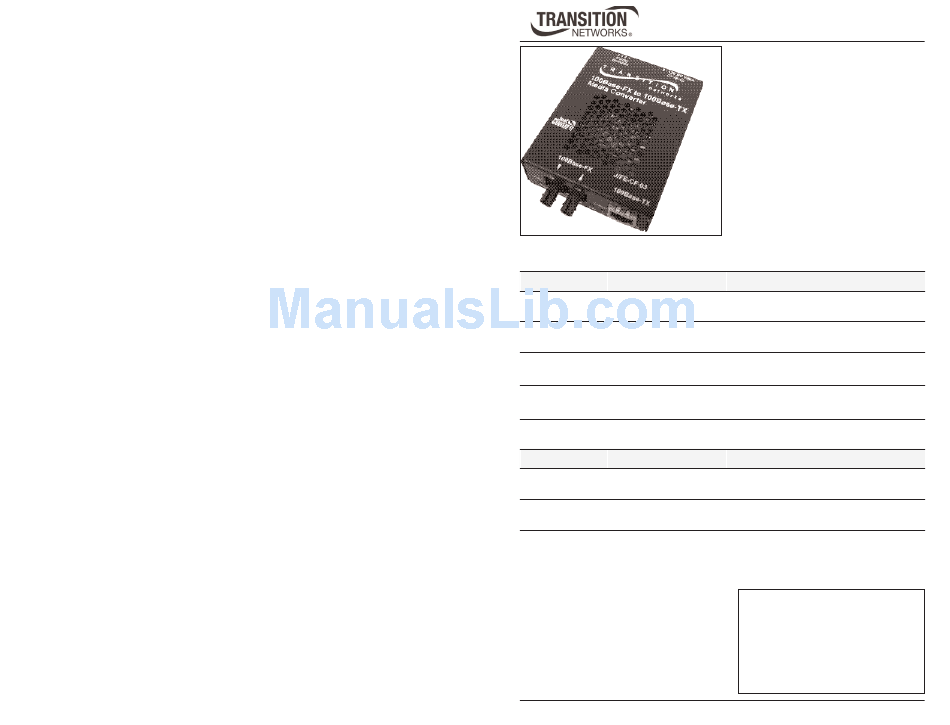

USER'S GUIDE
J/FE-CF-03
Stand-Alone media converter
• Fast Ethernet™
• Copper to Fiber
• 100Base-TX to 100Base-FX

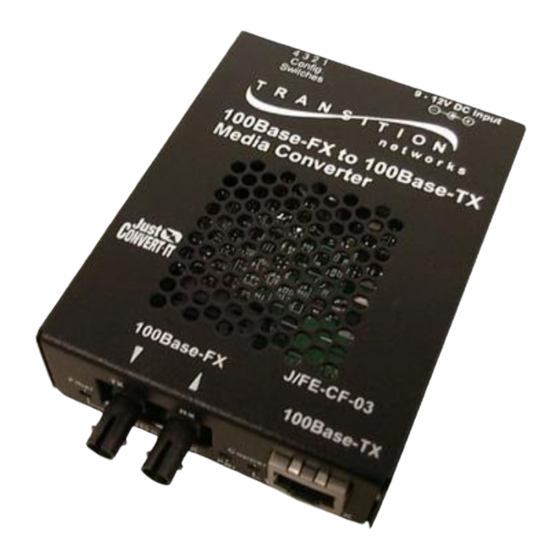

Transition Networks J/FE-CF-03 Fast
Ethernet™ media converter connects 100
Mb/s twisted-pair copper cable to a duplex
100 Mb/s fiber-optic cable.
Use the J/FE-CF-03 series media converter
(or up to two media converters in series)
Port Two - Duplex Fiber-Optic
ST, 100Base-FX, 1300 nm multimode
2 km (1.2 miles)*
SC , 100Base-FX, 1300 nm multimode
2 km (1.2 miles)*
SC, 100Base-FX, 1300 nm singlemode
20 km (12.4 miles)*
SC, 100Base-FX, 1300 nm singlemode
40 km (24.9 miles)*
Port Two - Duplex Fiber-Optic
SC, 1310 mn TX/1550 nm RX, 20 km
(12.4 miles)*
SC, 1550 mn TX/1310 nm RX, 20 km
(12.4 miles)*
Installation . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . . . .6
Technical Specifications . . . . . . . . . .7
Troubleshooting . . . . . . . . . . . . . . . .8
Contact Us . . . . . . . . . . . . . . . . . . . . .9
Compliance Information . . . . . . . . .11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J/FE-CF-03(LH) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks J/FE-CF-03(LH)

Summary of Contents for Transition Networks J/FE-CF-03(LH)

  • Page 1 Mb/s twisted-pair copper cable to a duplex 100 Mb/s fiber-optic cable. Use the J/FE-CF-03 series media converter (or up to two media converters in series) to extend over fiber, the distance between two 100BASE-TX devices (hub, switch, workstation, etc.). Part Number...

  • Page 2: Installation

    J/FE-CF-03 Options Accessories (sold separately) Part Number Description WMBS Optional Wall Mount Brackets Length: 3.2 in. (81 mm), Fits converter length: 3.9 in. (99 mm) SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Wide-Input; Output: 12.6VDC, 1.0 A SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-Back Wide-Input; Output: 12.6VDC, 1.0 A Installation Installing the Cable...

  • Page 3: Operation

    J/FE-CF-03 Installation -- Continued Power the media converter AC power: Install the power adapter cord to the back of the media converter. Connect the power adapter plug to AC power. Verify that the media converter is powered by observing the illuminated LED power indicator light.

  • Page 4: Cable Specifications

    J/FE-CF-03 Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber cable Bit Error Rate: <10-9 Singlemode fiber (recommended): 9 μm Multimode fiber (recommended): 62.5/125 μm Multimode fiber (optional): 100/140, 85/140, 50/125 μm J/FE-CF-03 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity:...

  • Page 5: Troubleshooting

    J/FE-CF-03 Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the Power LED on the media converter illuminated? • Is the power adapter the proper type of voltage and cycle frequency for the AC outlet? •...

  • Page 6: Compliance Information

    J/FE-CF-03 Declaration Of Conformity Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: J/FE-CF-03 Series Media Converters Part Number(s): J/FE-CF-03, J/FE-CF-03(SC), J/FE-CF-03(SM), J/FE-CF-03(SH), J/FE-CF-03(LH), J/FE-CF-03-100, J/FE-CF-03-101 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the J/FE-CF-03 to which this declaration refers is in conformity with the following standards.
  • Page 7 J/FE-CF-03 Trademark Notice All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2003 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.

This manual is also suitable for:

J/fe-cf-03(sc)J/fe-cf-03(sm)J/fe-cf-03J/fe-cf-03-100J/fe-cf-03-101
