User's Guide
J/E-PSW-FX-03
Stand-Alone Media Converter
• Just Convert-IT
• 10/100 Bridging (2-Port)
• 10Base-T/100Base-TX to 100Base-FX

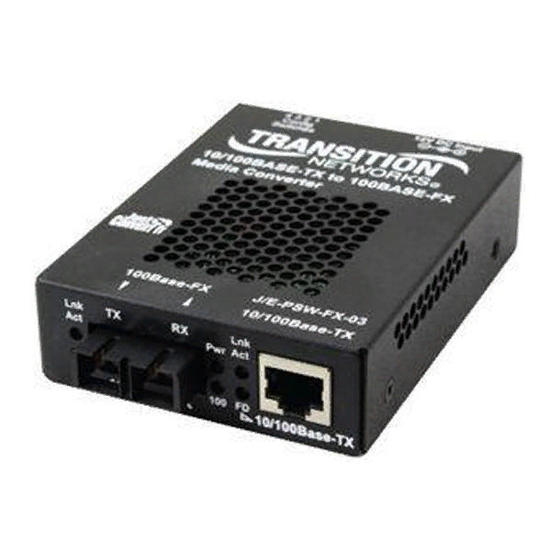

The J/E-PSW-FX-03 Ethernet/Fast Ethernet 2-port
bridging media converter connects 10Base-T
Ethernet or 100Base-TX Fast Ethernet twisted-pair copper network devices to network
devices on a 100Base-FX Fast Ethernet fiber network.
Part Number
Port 1 - Copper
10Base-T/100Base-TX
RJ-45
J/E-PSW-FX-03
100 m (328 ft)*
J/E-PSW-FX-03(SC)
RJ-45
100 m (328 ft)*
J/E-PSW-FX-03(SM)
RJ-45
100 m (328 ft)*
RJ-45
J/E-PSW-FX-03(100)
100 m (328 ft)*
J/E-PSW-FX-03(101)
RJ-45
100 m (328 ft)*
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network.
**Single Fiber, install in pairs.
Preliminary 4/07/10
Port 2- Duplex Fiber Optic
100Base-FX
ST, 1310 nm multimode
2 km (1.2 miles)
SC, 1310 nm multimode
2 km (1.2 miles)
SC, 1310 nm single mode
20 km (12.4 miles)
SC, 1310 nm TX/1550 nm RX
SM, 20 km(12.4 miles)**
SC, 1550 nm RX/1310 nm TX
SM, 20 km(12.4 miles)**
Installation . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . . . . .9
Technical Specifications . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . .11
Declaration of Conformity . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . . . .15
