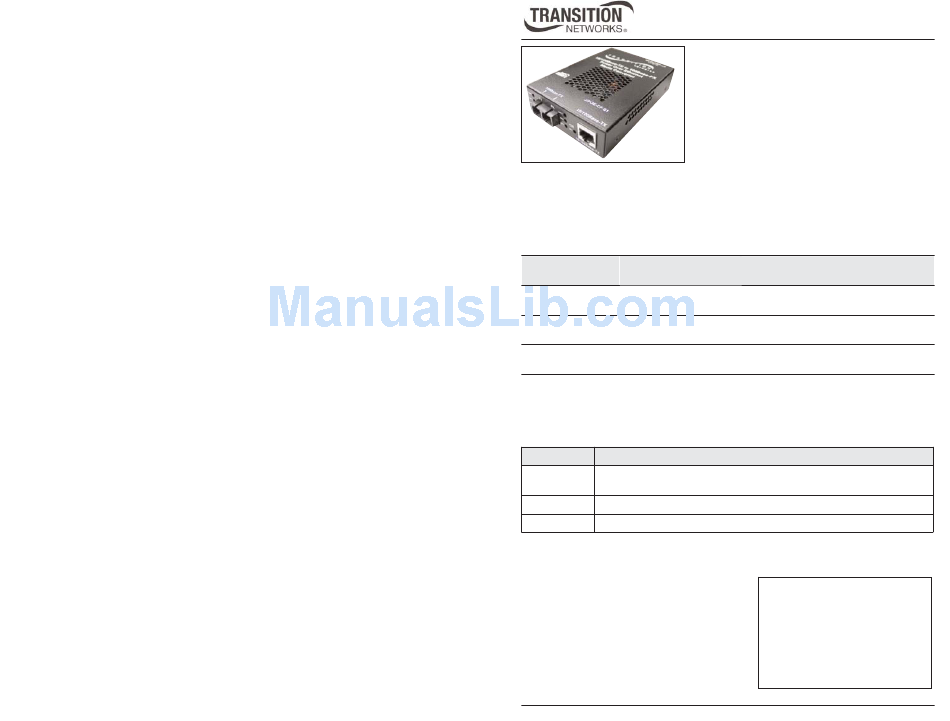

J/POE-CF-01 User's Guide
• Stand-Alone Media Converter
• Power Over Ethernet (POE)
• 10/100Base-TX to 100Base-FX
The J/POE-CF-01 Power over Ethernet (POE) is a
two port 10/100Base-TX to 100Base-FX media
converter capable of providing power to Data Terminal Equipment (DTE) Power
Devices (PD) via the Media Dependent Interface (MDI) twisted pair cable. The
J/POE-CF-01 emulates Power Sourcing Equipment (PSE) and provides power via the
10/100Base-TX interface for a remote PD device that complies with the
IEEE802.3af™ standard.
Part Number
Port One - Copper
10/100Base-TX
J/POE-CF-01
RJ-45
100 m (328 ft.)*
J/POE-CF-01 (SC) RJ-45
100 m (328 ft.)*
J/POE-CF-01 (SM) RJ-45
100 m (328 ft.)*
*Cable distances are the typical maximum cable distance. Actual distance is
dependent upon the physical characteristics of the network installation.
(sold separately)
Optional Accessories
Part Number Description
WMBL
Wall Mount Brackets
Length: 4.0 in. (102 mm), Fits converter length: 4.7 in. (119 mm)
WMBD
DIN Rail Mount Bracket; Length: 5.0 in. (127 mm)
WMBV
Vertical Wall Mount Plate; Length: 5.0 in. (127 mm)
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)
SC, 1300 nm multimode
2 km (1.2 miles)
SC, 1310 nm single mode
20 km (12.4 miles)
Installation . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . .7
Troubleshooting . . . . . . . . . .9
Contact Us . . . . . . . . . . . . .11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J/POE-CF-01(SC) and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks J/POE-CF-01(SC)

Summary of Contents for Transition Networks J/POE-CF-01(SC)

  • Page 1: Table Of Contents

    J/POE-CF-01 User’s Guide • Stand-Alone Media Converter • Power Over Ethernet (POE) • 10/100Base-TX to 100Base-FX The J/POE-CF-01 Power over Ethernet (POE) is a two port 10/100Base-TX to 100Base-FX media converter capable of providing power to Data Terminal Equipment (DTE) Power Devices (PD) via the Media Dependent Interface (MDI) twisted pair cable.

  • Page 2: Installation

    • Prevents loss of valuable data transmitted unknowingly over invalid link • Allows quick diagnosis and resolution of network problem Transition Networks’ media converters that include the FEF feature will work with other network devices that support Far End Fault per IEEE standards.

  • Page 3: Install The Fiber Cable

    J/POE-CF-01 Installation -- continued CAUTION: Associated Ethernet wiring shall be limited to inside the building. Install the fiber cable Locate or build 100Base-FX fiber cable with male, two-stranded TX to RX connectors installed at both ends. See Figure below. Connect the fiber cables to the SFEPE10xx-1xx media converter as described: •...

  • Page 4: Copper Cable

    J/POE-CF-01 Operation Status LEDs The J/POE-CF-01 media converter front panel is shown below. LACT LACT 100Bas e-F X 10/100Bas e-TX Description Green: Power ON Fiber LACT Green: ON = Link, Blinking = activity Fiber DPX Green: ON = Full, OFF = Half, Blinking = collision TP* LACT Green: ON = Link, Blinking = activity TP SPD...

  • Page 5: Technical Specifications

    J/POE-CF-01 Technical Specifications For use with Transition Networks Model J/POE-CF-01or equivalent Standards IEEE 802.3™, IEEE 802.3af Data Rate 10/100 Mb/s Packet Size (Max) 1522 bytes Mac Address Dimensions 3.25" x 1” x 4.8" (82 mm x 25.4mm x 120mm) Weight 0.8 lbs.

  • Page 6: Contact Us

    Declaration of Conformity Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: J/POE-CF-01 Series Media Converters Part Number(s): J/POE-CF-01, J/POE-CF-01(SC), J/POE-CF-01(SM) Regulation: EMC Directive 89/336/EEC Purpose: To declare that the J/POE-CF-01 to which this declaration refers is in conformity with the following standards.

  • Page 7: Compliance Information

    Compliance Information CISPR22/EN55022 Class A CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
