J/RS232-xx-01

Installation

DTE and DCE
Each J/RS232-xx-01 model is configured as a:
• DTE (Data Terminal Equipment) with a male RS-232 port, or a
• DCE (Data Communication Equipment) with a female RS-232 port.
So, the type of media converter and the application in which it is used
determines which type of RS-232 cable is needed:
• Straight-through configuration cable, or
• Null-modem configuration cable.

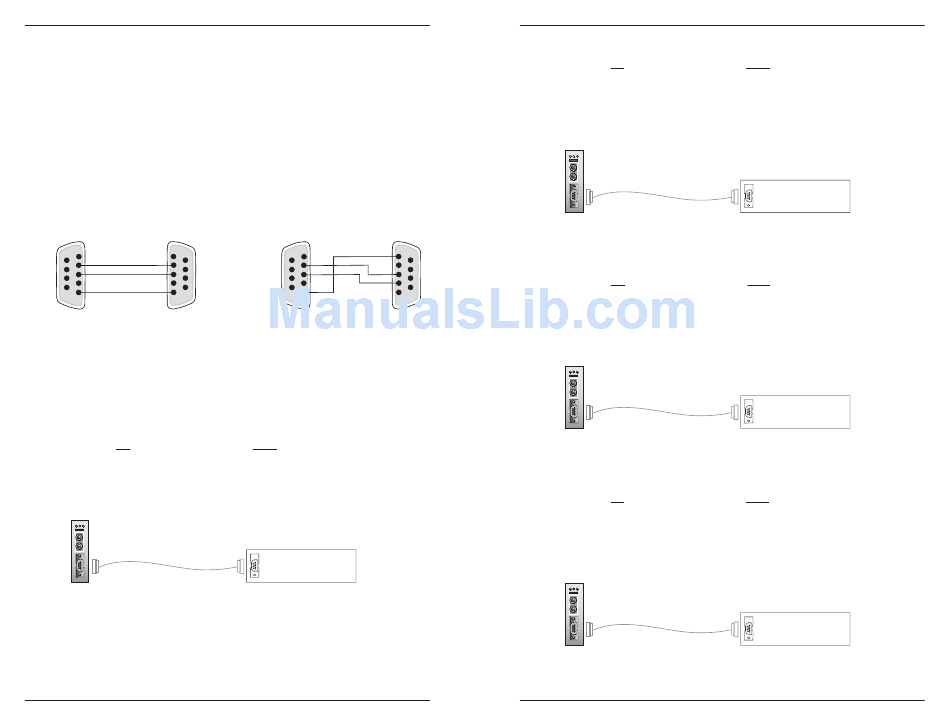

Straight-through configuration cable
with handshaking signals
1 1
6 6
2 2
7 7
3 3
8 8
4 4
9
9
5 5
NOTE: The J/RS232-xx-01 only uses pins 2, 3 and 5.
Install the RS-232 Cable
Sections 1-4 (below and on page 3) illustrate which type of RS-232 cable
should be used for the various applications:
1. J/RS232-CF-01 Media Converter / DCE Device
Use a null-modem RS-232 cable with a male connector when connecting
a J/RS232-CF-01 or J/RS232-CF-01(SC) media converter to a DCE device.
J-RS232-CF-01 or J-RS232-CF-01(SC)
(DCE configuration with a female RS-232 port)
null-modem
RS-232 cable with a male connector
2
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Null-modem configuration cable
with handshaking signaling
1 5
6 9
2 4
7 8
3 3
8 7
4 2
6
9
5 1
DCE device
Installation
-- Continued
2. J/RS232-TF-01 Media Converter / DCE Device
Use a straight-through RS-232 cable with a female connector when
connecting a J/RS232-TF-01 or J/RS232-TF-01(SC) media converter to a
DCE device.
J-RS232-TF-01 or J-RS232-TF-01(SC)
(DTE configuration with a male RS-232 port)
straight-through
RS-232 cable with a female connector
3. J/RS232-CF-01 Media Converter / DTE Device
Use a straight-through RS-232 cable with a male connector when
connecting a J/RS232-CF-01 or J/RS232-CF-01(SC) media converter to a
DTE device.
J-RS232-CF-01 or J-RS232-CF-01(SC)
(DCE configuration with a female RS-232 port)
straight-through
RS-232 cable with a male connector
4. J/RS232-TF-01 Media Converter / DTE Device
Use a null-modem RS-232 cable with a female connector when
connecting a J/RS232-TF-01 or J/RS232-TF-01(SC) media converter to a
DTE device.
J-RS232-TF-01 or J-RS232-TF-01(SC)
(DTE configuration with a male RS-232 port)
null-modem
RS-232 cable with a female connector
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
DCE device
DTE device
DTE device
3
