SHB130 LGA1150 Full-size CPU Card

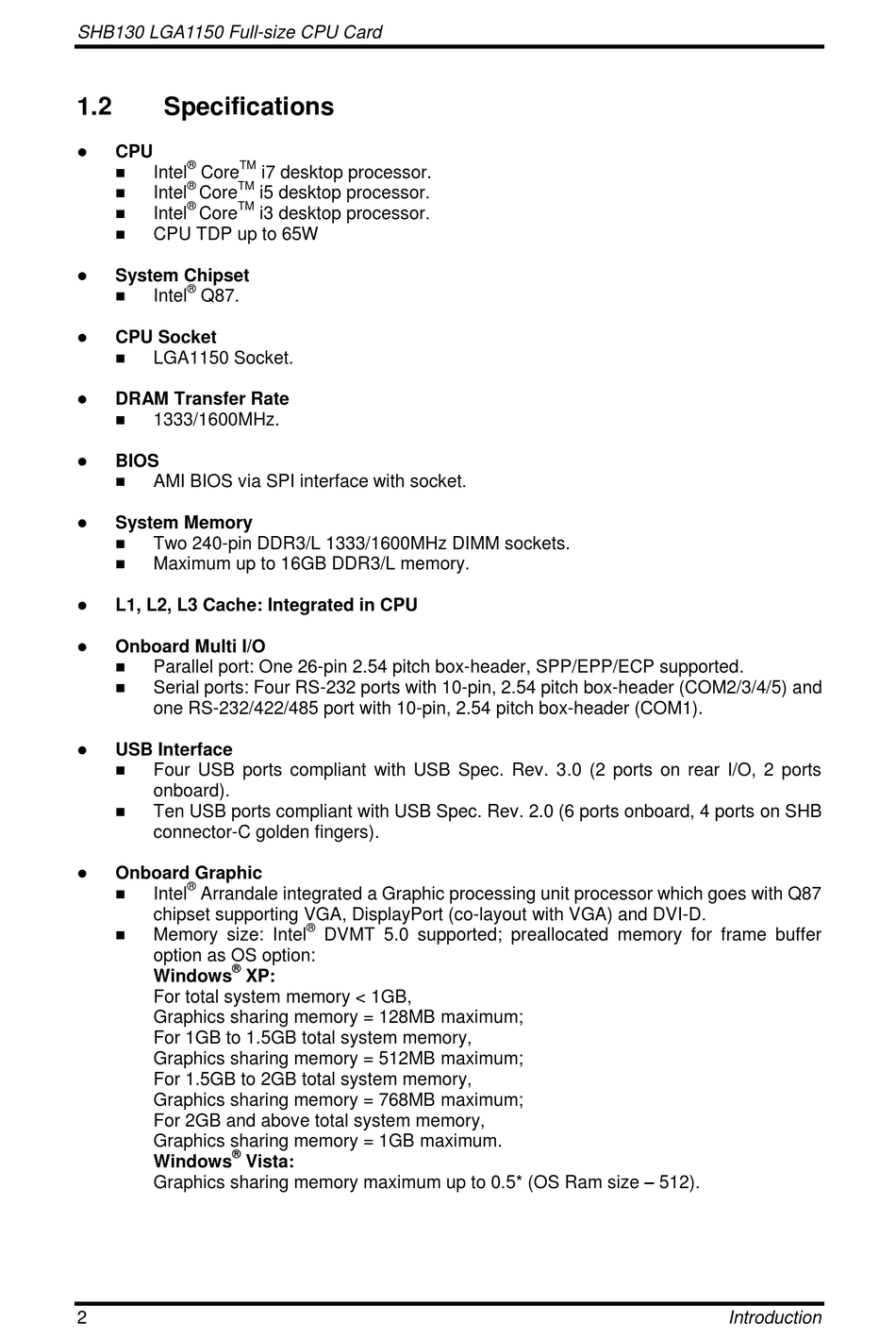

1.2

Specifications

 CPU
® TM
 Intel Core
® TM
 Intel Core
® TM

Intel Core
 CPU TDP up to 65W
 System Chipset
®
 Intel Q87.
 CPU Socket

LGA1150 Socket.
 DRAM Transfer Rate
 1333/1600MHz.
 BIOS
 AMI BIOS via SPI interface with socket.
 System Memory
 Two 240-pin DDR3/L 1333/1600MHz DIMM sockets.
 Maximum up to 16GB DDR3/L memory.
 L1, L2, L3 Cache: Integrated in CPU

Onboard Multi I/O
 Parallel port: One 26-pin 2.54 pitch box-header, SPP/EPP/ECP supported.
 Serial ports: Four RS-232 ports with 10-pin, 2.54 pitch box-header (COM2/3/4/5) and
one RS-232/422/485 port with 10-pin, 2.54 pitch box-header (COM1).
 USB Interface
 Four USB ports compliant with USB Spec. Rev. 3.0 (2 ports on rear I/O, 2 ports
onboard).
 Ten USB ports compliant with USB Spec. Rev. 2.0 (6 ports onboard, 4 ports on SHB
connector-C golden fingers).
 Onboard Graphic
®
 Intel Arrandale integrated a Graphic processing unit processor which goes with Q87
chipset supporting VGA, DisplayPort (co-layout with VGA) and DVI-D.
 Memory size: Intel
option as OS option:
®
Windows XP:
For total system memory < 1GB,
Graphics sharing memory = 128MB maximum;
For 1GB to 1.5GB total system memory,
Graphics sharing memory = 512MB maximum;
For 1.5GB to 2GB total system memory,
Graphics sharing memory = 768MB maximum;
For 2GB and above total system memory,
Graphics sharing memory = 1GB maximum.
®
Windows Vista:
Graphics sharing memory maximum up to 0.5* (OS Ram size – 512).
2
i7 desktop processor.
i5 desktop processor.
i3 desktop processor.
®
DVMT 5.0 supported; preallocated memory for frame buffer
Introduction
