AXIOMTEK SHB105 Series Quick Installation Manual

Cpu board

Advertisement

Quick Links

SHB105 Series Quick Installation Guide
V.

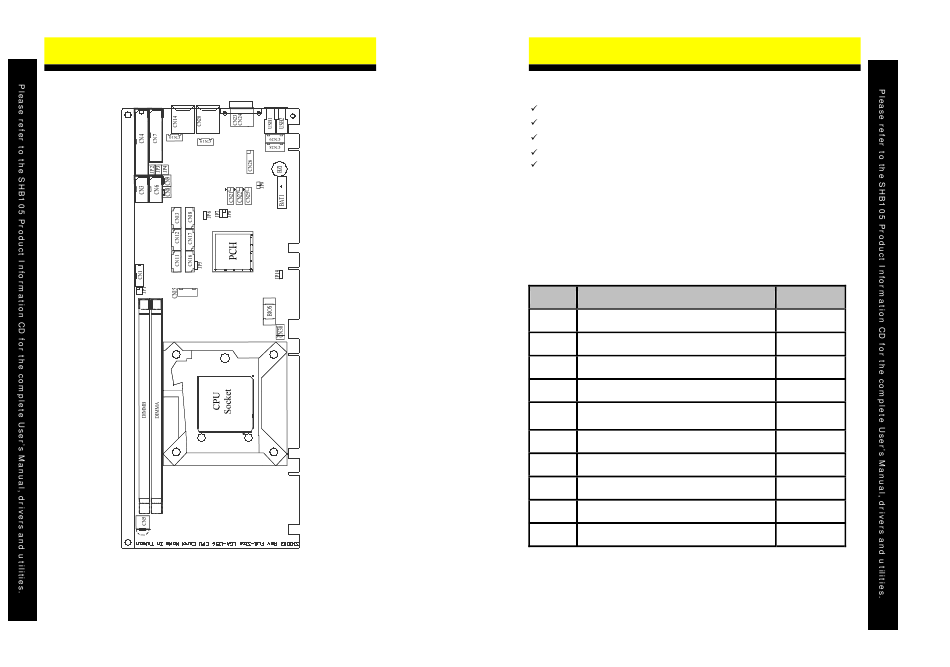

Board Layout
4
©Copyright 2011 Axiomtek Co., Ltd.
Version A2 November 2011
Printed in Taiwan
9418C105020E
SHB105 Series Quick Installation Guide
I.
Checklist
CPU Board x 1
Quick Installation Guide x 1
Product Information CD-ROM x 1
SATA Cable x 1
COM , Printer Port Cable with Bracket, Pitch=2.0mm x 1
Note: Please contact your local vendors if any damaged or missing
items. DO NOT apply power to the board if any damaged
components.
II.
Jumper Settings
Before applying the power to SHB105 Series, please make sure
all jumper settings are defaulted as the following table:
JUMPER
DEFAULT
JP1
Audio Line Out/Speaker Out : Line Out
JP2
COM1 Operate Mode Select : RS-232
JP3
COM1 Operate Mode Select : RS-232
JP4
COM1 Operate Mode Select : RS-232
JP5
CPU Clock:133Mhz
JP6
TPM Setting
JP7
ME Manufacture Mode
JP8
Clear CMOS
JP9
Auto Power Button On
JP10
TPM Setting
©Copyright 2011 Axiomtek Co., Ltd.
Version A2 November 2011
Printed in Taiwan
9418C105020E
SETTING
Short 1-3, 2-4
Short 1-2
Short 3-5,4-6
Short 3-5,4-6
Short 1-2
Short 1-2
Short 1-2,
Short 1-3
Short 1-2
Short 2-3
1
