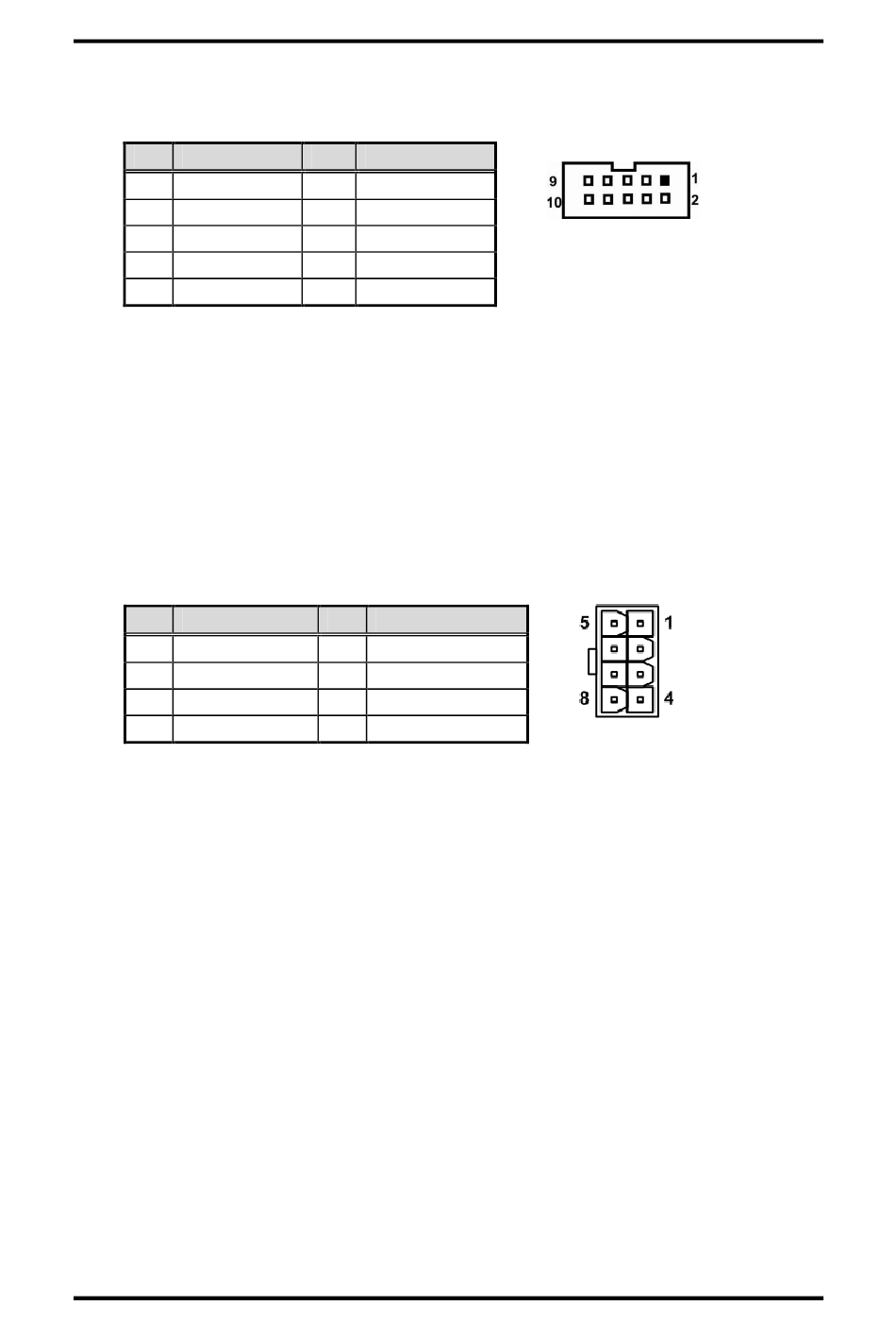

Audio Connector (AUDIO1)

The AUDIO1 is an internal audio connector.
Pin Signal
1 MIC IN
3 LINE_IN_L
5 LINE_IN_R
7 LINE_OUT_L
9 LINE_OUT_R
2.4.19

Power Connector (ATX2)

Steady and sufficient power can be supplied to all components on the board by
connecting power connector. Please make sure all components and devices are
properly installed before connecting the power connector.
External power supply plug fits into this connector in only one orientation. Properly press
down power supply plug until it completely and firmly fits into this connector. Loose
connection may cause system instability.
The ATX2 is a 8-pin ATX power connector. Its pin assignments are given in table below.
Pin Signal
1 GND
2 GND
3 GND
4 GND
Board and Pin Assignments
Pin Signal
2 GND
4 GND
6 GND
8 GND
10 GND
Pin Signal
5 +12V
6 +12V
7 +12V
8 +12V
