Aeotec

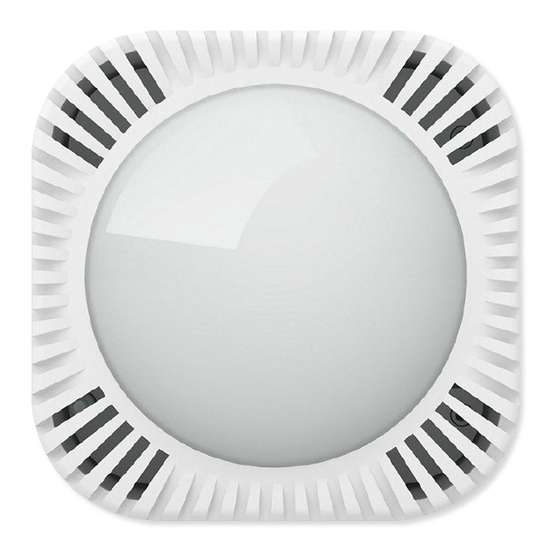

MultiSensor 7
SKU: AEOEZWA024
Quickstart
This is a secure Alarm Sensor for Europe. To run this device please insert fresh 2 * CR123A batteries. Please make sure the internal battery is fully
charged.
Z W
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer,
distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this
equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.
What is Z-Wave?
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
Z W
1/37

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiSensor 7 and is the answer not in the manual?

Questions and answers

Related Manuals for Aeotec MultiSensor 7

Summary of Contents for Aeotec MultiSensor 7

  • Page 1 Aeotec MultiSensor 7 SKU: AEOEZWA024 Quickstart This is a secure Alarm Sensor for Europe. To run this device please insert fresh 2 * CR123A batteries. Please make sure the internal battery is fully charged. Important safety information Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material.

  • Page 2: Product Description

    24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Z-Wave is the international wireless protocol for communication in the Smart Home. This device is suited for use in the region mentioned in the Quickstart section. Z-Wave ensures a reliable communication by reconfirming every message (two-way communication) and every mains powered node can act as a repeater for other nodes (meshed network) in case the receiver is not in direct wireless range of the transmitter.
  • Page 3 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 3/37...
  • Page 4 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 4/37...
  • Page 5 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 To install your TriSensor with the Back-Mount Plate; 1. You can affix the Back-Mount Arm by Double-Sided Tape or using the provided KA2.5ƒ-20 mm screws. Tips: We suggest you choose the second method (using screws to affix the Back-Mount Arm) which would be more stable. 2.
  • Page 6 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 3. The Back-Mount Arm may be locked at various angles by turning the Friction Lock clockwise and counter-clockwise to respectively tighten or loosen the angle of the arm. You can rotate the Friction Lock to change the measurement area of sensor. https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 6/37...

  • Page 7: Product Usage

    24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Inclusion/Exclusion On factory default the device does not belong to any Z-Wave network. The device needs to be added to an existing wireless network to communicate with the devices of this network. This process is called Inclusion. Devices can also be removed from a network.
  • Page 8 Solid Red Quick Wakeup LED will disappear as soon as you release its button. The MultiSensor 7 will send a wakeup report to your Z-Wave Controller to take in any queued z-wave commands waiting in your controller. Press and hold [5, 9 seconds) Solid Orange...

  • Page 9: Communication To A Sleeping Device (Wakeup)

    To wakeup the device please perform the following action: Waking up MultiSensor 7.   In order to configure Multisensor 7, you must either (1) wake up Multisensor 7 using the below button press function, or (2) temporarily put your Multisensor 7 on USB power.   ...

  • Page 10: Quick Troubleshooting

    1-3 again, then power up your hub again.   4. Tap the Action Button on Multisensor 7 to put Multisensor 7 back to sleep, or wait 5 minutes. (recommended to manually put it back to sleep to conserve battery life).

  • Page 11: Configuration Parameters

    24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Maximum Group Number Description Nodes Lifeline Basic Set Command will be sent to the associated device when motion trigger or untrigger. The basic set value is determined by Param11, Param12. See Param13 for more information. Basic Set: When the temperature change value is over or under the threshold set by Param16. Scale is determined by Param64.
  • Page 12 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Disable Enable Parameter 2: Motion Retrigger Time Presence re-detection time set in second to allow motion sensor to reset timeout of motion sensor. In this time, the motion sensor can not be triggered again. If this value reach zero, the timeout configuration value set by Param3 will be reset.
  • Page 13 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Sends Notification Report Sends Sensor Binary Report Sends Notification and Sensor Binary Report Parameter 6: Vibration Sensor Enable/Disable Used to enable/disable vibration sensor. Size: 1 Byte, Default Value: 255 Setting Description disable vibration 1 - 254 timeout set in minutes to reset vibration status timeout set in minutes to reset vibration status Parameter 7: Vibration Intensity Reports...
  • Page 14 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Parameter 10: Power Status This value is Readonly. Used to report the power status (USB or Battery powered) The device must be re-included in the network to change the role type. Size: 1 Byte, Default Value: 0 Setting Description When battery powered, the device will act as RSS.
  • Page 15 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Parameter 13: Motion Group Control Requirement Set threshold of Light/Lux when devices associated in group2 should be triggered by motion. Associated device only receive BASIC_SET command when light Size: 2 Byte, Default Value: 30000 Setting Description 0 - 30000 Set threshold of Light/Lux Parameter 14: Over Humidity Group Threshold (Group5) Set threshold of humidity.
  • Page 16 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Set threshold of temperature. Designed to control Air Conditioners or temperature controllers ON or OFF. If measured temperature(this value) send BASIC_SET (0x00) to associated devices. E.g. Value 155 means 15.5 C. Value 600 means 60.0 F. Size: 2 Byte, Default Value: 155 Setting Description -400 - 850...
  • Page 17 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description 0 - 11 Set threshold of UV. Parameter 39: Low Battery Threshold Configure low battery report threshold, sends low battery report via notification and battery report when battery level drops under setting. Unit %. Size: 1 Byte, Default Value: 50 Setting Description 10 - 90...
  • Page 18 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Parameter 43: Lux Threshold Size: 2 Byte, Default Value: 250 Setting Description 0 - 10000 Lux Threshold 0 = disabled Parameter 44: UV Threshold Size: 1 Byte, Default Value: 1 Setting Description 0 - 11 UV Threshold 0 = disabled Parameter 45: Threshold Check Time Set threshold check time in seconds if the threshold is enabled via Parameter 40.
  • Page 19 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Used to enable/disable measurement reports for various sensors that is more than the upper limit value or less than the lower limit value. Size: 1 Byte, Default Value: 0 Setting Description Disable Temperature upper level Humidity upper level Lux upper level UV upper level Temperature lower level...
  • Page 20 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Temperature recover limit set in scale of 0.1. Scale is determined by Param64. If (Current measurement) = (lower limit + recover limit), then temperature report. Size: 1 Byte, Default Value: 20 Setting Description 1 - 255 Temperature recover limit set in scale of 0.1. Parameter 52: Humidity Upper Limit Set humidity upper limit level.
  • Page 21 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description 0 - 30000 Set lux upper limit level. Parameter 57: Lux Recover Limit Set lux recover limit level. Refer to Param 51. Size: 1 Byte, Default Value: 100 Setting Description 1 - 255 Set lux recover limit level. Parameter 58: UV Upper Limit Set UV upper limit level.
  • Page 22 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Parameter 61: Out-of-limit State This is read only and bit mask. Out of the limit state of sensors. Size: 1 Byte, Default Value: 0 Setting Description within limit Temperature upper level Humidity upper level Lux upper level UV upper level Temperature lower level Humidity lower level...
  • Page 23 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description disable enable Parameter 82: Motion Sensor Report Indicator If LED is enabled by Param81, allow user to change the report color of motion sensor. Size: 1 Byte, Default Value: 3 Setting Description Disable Blue Green Pink Cyan Purple...
  • Page 24 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Disable Blue Green Pink Cyan Purple Orange Yellow White Parameter 84: Humidity Sensor Report Indicator If LED is enabled by Param81, allow user to change the report color of humidity sensor. Size: 1 Byte, Default Value: 0 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 24/37...
  • Page 25 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Disable Blue Green Pink Cyan Purple Orange Yellow White Parameter 85: Lux Sensor Report Indicator If LED is enabled by Param81, allow user to change the report color of Lux sensor. Size: 1 Byte, Default Value: 0 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 25/37...
  • Page 26 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Disable Blue Green Pink Cyan Purple Orange Yellow White Parameter 86: UV Sensor Report Indicator If LED is enabled by Param81, allow user to change the report color of UV sensor.0 - Disabled1 - Red2 - Blue3 - Green4 - Pink5 - Cyan6 - Purple7 - Orange8 - Yellow9 - White Size: 1 Byte, Default Value: 0 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147...
  • Page 27 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Disable Blue Green Pink Cyan Purple Orange Yellow White Parameter 87: Vibration Sensor Report Indicator If LED is enabled by Param81, allow user to change the report color of vibration sensor. Size: 1 Byte, Default Value: 2 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 27/37...
  • Page 28 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Disable Blue Green Pink Cyan Purple Orange Yellow White Parameter 88: Battery Report Indicator If LED is enabled by Param81, allow user to change the report color of battery. Size: 1 Byte, Default Value: 0 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 28/37...
  • Page 29 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Disable Blue Green Pink Cyan Purple Orange Yellow White Parameter 89: Wakeup Report Indicator If LED is enabled by Param81, allow user to change the report color of wakeup. Size: 1 Byte, Default Value: 8 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 29/37...
  • Page 30 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Disable Blue Green Pink Cyan Purple Orange Yellow White Parameter 90: Communication Indicator If LED is enabled by Param81, allow user to change indicator color when receiving communication from gateway or other devices. Size: 1 Byte, Default Value: 0 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 30/37...
  • Page 31 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Disable Blue Green Pink Cyan Purple Orange Yellow White Parameter 101: Automatic Report Checklist 1 Checklist 1 for automatic timed report. When the corresponding item is selected, it will be checked when timeout setting by Param111. Size: 1 Byte, Default Value: 241 Setting Description...
  • Page 32 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description Battery Temperature Humidity Parameter 103: Automatic Report Checklist 3 Checklist 3 for automatic timed report. When the corresponding item is selected, it will be checked when timeout setting by Param113. Size: 1 Byte, Default Value: 0 Setting Description Battery...
  • Page 33 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Setting Description 30 - 65535 Interval time set in seconds Parameter 113: Automatic Checklist 3 Interval Time Interval time set in seconds to check the checklist3s items. Multilevel Sensor Report will be sent when timeout. Size: 2 Byte, Default Value: 3600 Setting Description 30 - 65535...

  • Page 34: Technical Data

    24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Parameter 204: UV Offset Value Can add or minus this setting value to calibrate UV when checked. Size: 1 Byte, Default Value: 0 Setting Description -10 - 10 Offset Value range -10-10. Technical Data https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 34/37...

  • Page 35: Supported Command Classes

    24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Dimensions 45 x 45 x 40 mm Weight 65 gr Hardware Platform ZGM130 1220000016873 IP Class IP 20 Voltage Battery Type 2 * CR123A Device Type Notification Sensor Network Operation Always On Slave Z-Wave Version 7.12.2 Certification ID ZC12-20120147 Z-Wave Product Id 0x0371.0x0002.0x0018...

  • Page 36: Explanation Of Z-Wave Specific Terms

    24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Association V2 Battery Configuration V4 Device Reset Locally Firmware Update Md V5 Indicator V3 Manufacturer Specific V2 Multi Channel Association V3 Notification V8 Powerlevel Security Security 2 Sensor Binary V2 Sensor Multilevel V11 Supervision Transport Service V2 Version V3 Wake Up V2 Zwaveplus Info V2...
  • Page 37 24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 Inclusion — is the process of adding new Z-Wave devices into a network. Exclusion — is the process of removing Z-Wave devices from the network. Association — is a control relationship between a controlling device and a controlled device. Wakeup Notification —...
