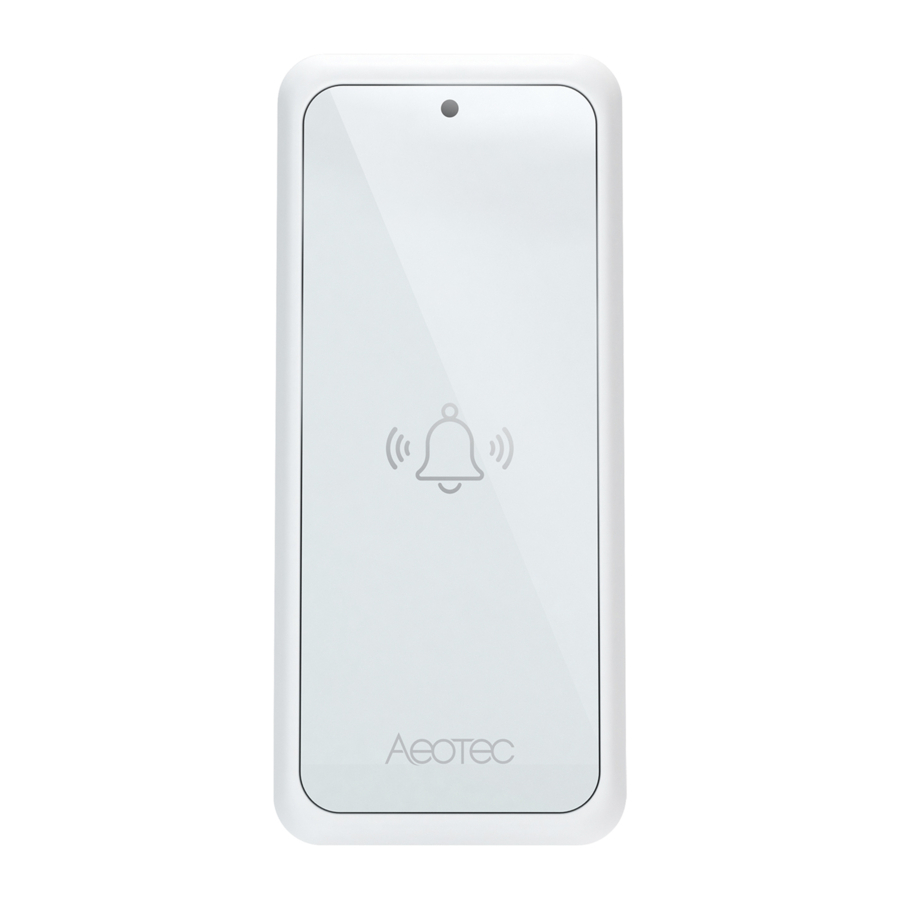

Aeotec Button ZW166 - Doorbell Button for Doorbell/Siren 6 Manual

Important safety information

Failure to follow the recommendations set forth by Aeotec Limited may be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and / or reseller will not be held responsible for any loss or damage resulting from not following any instruction in this guide or in other materials.

Button offers IP55 water protection and is suitable for outdoor use without direct exposure to heavy and penetrative rain. Button is constructed with nylon; keep away from heat and do not expose to flame. Avoid exposing Button to direct sunlight where possible in order to avoid UV damage and reduced battery performance.

Contains small parts; keep away from children.

Quick start

The following will step you through installing Button and pairing it with either Doorbell 6 or Siren 6.

1. Power on your Button.
   1. Open battery cover and insert provided CR2450 battery.
   2. Lock the battery cover in place.
   3. Test Button but pressing it; its LED will blink to indicate it is powered on.
2. Ensure that Doorbell 6 or Siren 6 is powered on.
3. Pair your Button with your Doorbell 6 or Siren 6. Both Doorbell 6 and Siren 6 can be paired with up to 3 additional Buttons. If pairing the 1st of 3 additional buttons;
   1. Press the Action button on Doorbell 6 or Siren 6 3 times in quick succession; its LED will blink slowly to indicate it has entered pairing mode.
   2. Press Button 3 times in quick succession.
4. If pairing the 2nd of 3 additional buttons;
   3. Press the Action button on Doorbell 6 or Siren 6 4 times in quick succession; its LED will blink slowly to indicate it has entered pairing mode.
   4. Press Button 3 times in quick succession.
5. If pairing the 3rd of 3 additional buttons;
   5. Press the Action button on Doorbell 6 or Siren 6 5 times in quick succession; its LED will blink slowly to indicate it has entered pairing mode.
   6. Press Button 3 times in quick succession.
6. Button and Doorbell 6 or Siren 6 should now be paired; press Button to test. If pairing has failed, repeat the relevant steps.
7. Install Button.
   1. Select an installation location for Button.
   2. Test the wireless connection between Button and your Doorbell 6 or Siren 6 by pressing Button to trigger an alert. Select an alternative installation location for either button or the chime should the connection is poor.
   3. Affix the mounting plate to the selected surface; affix it using either 2 x 20mm screws or double-sided tape.
   4. Lock your Button onto the mounting plate.
