Technical Specifications - Transition Networks E-TBT-FRL-1200 User Manual

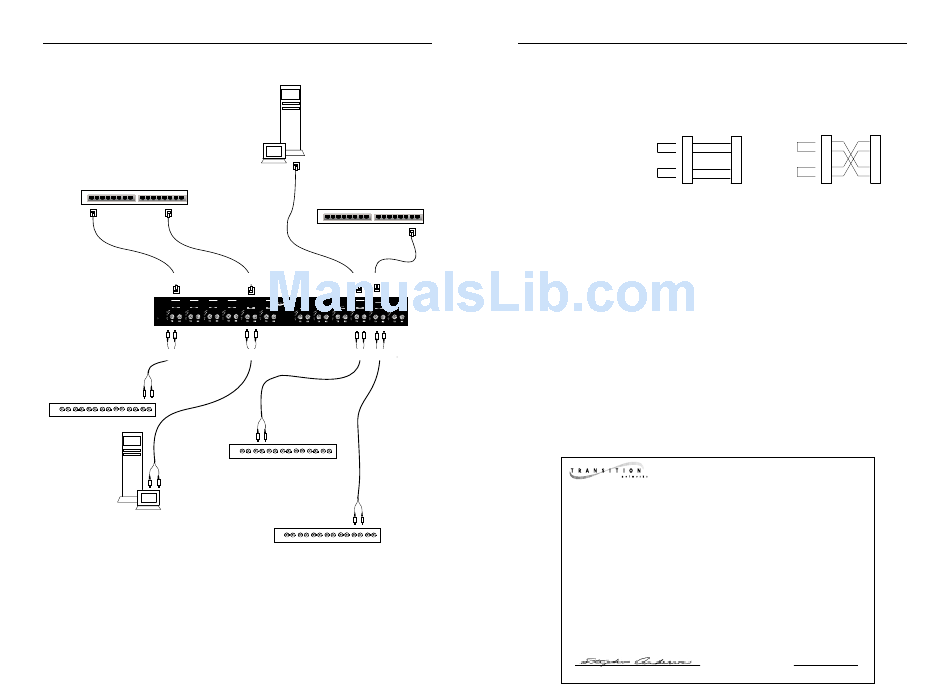

E-TBT-FRL-xx00 IN THE NETWORK
Switch
Half-Duplex
Full-Duplex
TP LINK 1 TP LINK 2 TP LINK 3 TP LINK
FBR LINK FBR LINK FBR LINK FBR LINK
POWER
ACT ACT ACT ACT
Half-Duplex Full-Duplex
Hub
Server
Each media converter port in the multi-port media converter operates
independently over one isolated twisted-pair copper/fiber-optic cable
link. The media converter port receives and transmits network signals in
either full-duplex or half-duplex, depending upon the network devices
to which the media converter port is attached.
NOTE: In Telco option (not shown), the 50-pin Telco connector
concentrates up to 12 UTP connections onto one connector. This
concentration of UTP ports is then broken out for connection to fiber.
Server
Hub
Full-Duplex Half-Duplex
4 TP LINK 5 TP LINK 6 TP LINK 7 TP LINK 8 TP LINK 9 TP LINK 10 TP LINK 11 TP LINK 12
FBR LINK FBR LINK FBR LINK FBR LINK FBR LINK FBR LINK FBR LINK FBR LINK
ACT ACT ACT ACT ACT ACT ACT ACT
Full-Duplex Half-Duplex
Switch
Hub
RJ-45 CONNECTOR
Twisted pair connection requires two active pairs configured as straight
through and/or crossover. The two active pairs in an Ethernet™ network are
pins 1 & 2 and pins 3 & 6. Use only dedicated wire pairs (such as blue/white
& white/blue, orange/white & white/orange) for the active pins.
Straight Through
1
Twisted Pair #1
2
3
Twisted Pair #2
6
NOTE: The multi-port media converter AutoCross™ feature allows either straight-
through or crossover twisted-pair copper cable to be used when connecting to
10BASE-T devices. AutoCross™ determines the characteristics of cable
connections to the media converter port and then automatically configures the
port to link up.

TECHNICAL SPECIFICATIONS

Standards IEEE 802.3 1998 Edition
Case Dimensions 19.0" x 8.5" x 1.5"
Environment Temperature:
Storage Temperature: -15° to 65°C (5° to 149° F )
Humidity
Altitude
Power 100-240 VAC, 50/60 Hz., 1 Amp (maximum)
Warranty Lifetime
DECLARATION OF CONFORMITY
Name of Mfg: Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
Model: E-TBT-FRL-xx00, E-TEL-FRL-1200 Series Multi-Port Media Converter
Part Number(s): E-TBT-FRL-0600, E-TBT-FRL-0600(SC), E-TBT-FRL-0600(SM),
E-TBT-FRL-0600(L), E-TBT-FRL-0600(MT), E-TBT-FRL-1200,
E-TBT-FRL-1200(SC), E-TBT-FRL-1200(SM), E-TBT-FRL-1200(L), E-
TBT-FRL-1200(MT), E-TEL-FRL-1200, E-TEL-FRL-1200(SC),
E-TEL-FRL-1200(SM), E-TEL-FRL-1200(L), E-TEL-FRL-1200(MT)
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the E-TBT-FRL-0600, E-TBT-FRL-1200 or E-TEL-FRL-
1200 to which this declaration refers is in conformity with the following
standards.
EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;
EN 60950 A4:1997; IEC 801.2, IE C 801.3, and IEC 801.4; IEC 950
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
Stephen Anderson, Vice-President of Engineering
Crossover
1
1 1
Twisted Pair #1
2
2 2
3 3
3
Twisted Pair #2
6 6
6
(483 mm x 216 mm x 38 mm)
0-50°C (32° to 122° F )
10-95%, non condensing
0-10,000 feet
_November 3, 1999_____
Date
