Do not open during installation
This product is factory-sealed.
Refer to the instructions contained
in this document for details.
Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular
socket heads (ISO 10664). Installation
requires the use of matching tools.
Surge Protection
This product features built-in surge protection circuitry in compliance
with applicable standards.
For comprehensive protection of a luminaire installation against lightning
and electrical surges, it is essential to cover mains supply and data input
lines at the distribution board level, by using respective primary (Type 1)
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation. Also, disconnect luminaires
before operatinghigh-power devices such as, for example, electrical
arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

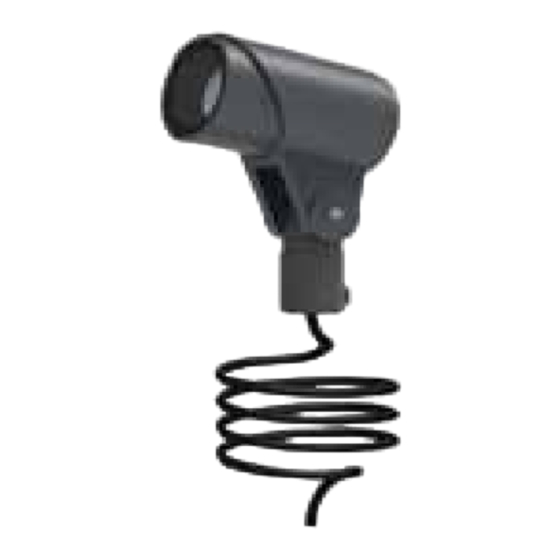

Projector
Spigot mounted
FLC301
FLC311
FLC321
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WE-EF FLC301
Summary of Contents for WE-EF FLC301
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector Spigot mounted FLC301 FLC311 FLC321 Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance Refer to the instructions contained with applicable standards.
- Page 2 Projector Spigot mounted FLC301 FLC311 FLC321 IP66, IK08. Class I. T a = 40°C Weight for FLC301 Spigot mounted for FLC311 Spigot mounted for FLC321 Spigot mounted...
-
Page 3: Maintenance
In case of component failure due to abnormal circumstances or at end of life, replacement must be carried Warning: Do not open luminaire while mains supply is switched on. Mounting Accessories Ground spike SF-FLC1 for FLC301 Spigot mounted 145-9535 EF1 for FLC301 Spigot mounted 310-9102... -
Page 4: Installation
Installation The product must be installed and maintained by a with latest building/construction and/or electrical regulations and relevant legislation. Warning: Notice: will no longer be valid and shall become the full responsibility of the modifying person/organisation. Claims based on defects attributable to improper installation and/or application, and the consequences thereof, are excluded. -
Page 5: Installation Procedure
Installation Procedure 2) Check that rating shown on luminaire label conforms with mains electrical supply. 10/20 IP66 FLC301-LED 220-240V50-60Hz 145-XXXX SOE XXXXXXX LED 3000K 4W item no. XXX (example) 3) Loosen screw A. 4) Place luminaire on one of the following mounting accessories. - Page 6 feed cable B from luminaire C through pivot G feed cable B from luminaire C through pivot, and cable gland D E. Slide cable entry G and cable gland D of column F over pivot. F over pivot. Ground spike Junction box 4.3) Feed cable B from luminaire C through 4.4) Feed cable B from luminaire C through...
- Page 7 8) For accessory Linear Spread Lens IO-180: respective terminals in terminal connector C: Turn frame O to set desired orientation of light. For FLC301 a) ON-OFF (L = Phase, N = Neutral, = Earthing) b) ON/OFF 24VDC (+ = positive pole,...
- Page 8 WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9271W0722 © WE-EF 2022 Technical specifications are subject to change.
- Page 9 WE-EF LEUCHTEN Installation and Maintenance Instructions Accessories Ground Spike Junction box Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance Refer to the instructions contained with applicable standards. in this document for details.
- Page 10 Accessories Suitability 1. FLB100 Spigot mounted 2. FLC300 Spigot mounted 3. FLD100 Spigot mounted 145-9535 Ground spike 310-9102 145-9536 Junction box (Side entry) 310-9002 Junction box (Wall entry) 310-9025...
- Page 11 Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Notice: will no longer be valid and shall become the full responsibility of the modifying person/organisation. Claims based on defects attributable to improper installation and/or application, and the consequences thereof, are excluded.
- Page 12 Installation Procedure 1) Feed cable from luminaire through pivot Drill relevant holes E and insert nylon plugs R. Insert and tighten screws D. After installation of luminaire, tighten cable gland. Warning: Ensure not to damage any electrical cable, water pipe or other items drilling holes.
- Page 13 Ground Spike 1) Note: It is the responsibility to installer to 2) Place ground spike H into the ground. ensure the suitability of the ground spike for 3) Feed cable from luminaire through pivot and cable gland I. After installation of luminaire, tighten cable gland I.
- Page 14 Junction box 1) Loosen screws K and remove cover L from 2) Feed main supply cable R through wall entry body M. or side entry of body M. For side entry installations, replace the pre-installed plugs with provided cable glands as required.
- Page 15 5) After installation of luminaire, place cover L on body M and tighten screws K.
- Page 16 WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9253W0722 © WE-EF 2022 Technical specifications are subject to change.
