Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires the
use of matching tools.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.

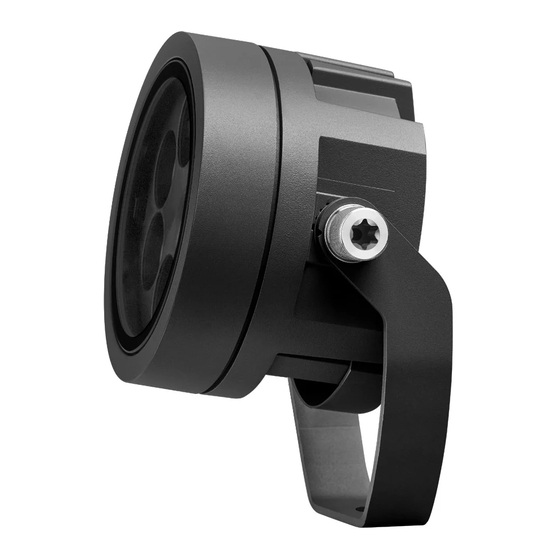

WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Projector
FLC210 LED
FLC220 LED
FLC230 LED
FLC240 LED
FLC260 LED
FLC210-CC LED
FLC220-CC LED
FLC230-CC LED
FLC240-CC LED
FLC260-CC LED
FLC210-TW LED
FLC220-TW LED
FLC230-TW LED
FLC240-TW LED
FLC260-TW LED
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WE-EF FLC210-CC LED
Summary of Contents for WE-EF FLC210-CC LED

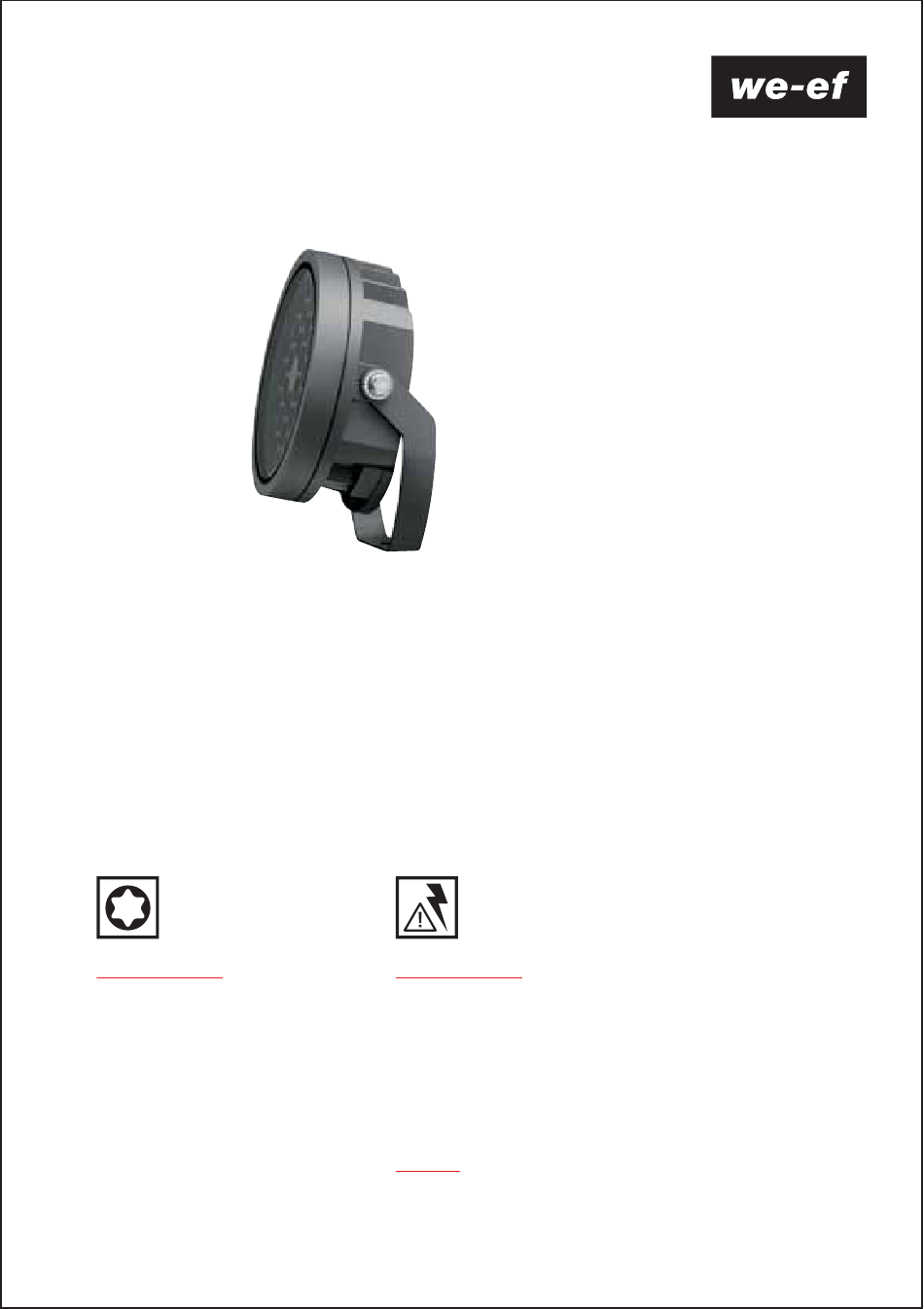

- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector FLC210 LED FLC220 LED FLC230 LED FLC240 LED FLC260 LED FLC210-CC LED FLC220-CC LED FLC230-CC LED FLC240-CC LED FLC260-CC LED FLC210-TW LED FLC220-TW LED FLC230-TW LED FLC240-TW LED FLC260-TW LED Installation tools Surge Protection...
- Page 2 Projector FLC230 [EES] Version ø 14 ø 18 FLC230-CC* FLC230 FLC230-TW ø 260 ø 190 ø 190 ø 14 ø 14 ø 18 ø 18 FLC240 [EES] Version FLC260 [EES] Version ø 14 ø 14 ø 18 ø 18 FLC240-CC* FLC260-CC* FLC240 FLC240-TW...
-
Page 3: Tools Required
FLC230 0.054 for FLC240 0.090 for FLC260 0.116 for FLC220-CC for FLC230/240/260-CC Tools required – Screwdriver T-25 / T-30 (provided by WE-EF) 0.14 – 2.5 mm ø 5.5 – 12 mm – Screwdriver with blade 3 x 1 DMX-Power... -
Page 4: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 5: Installation
Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Do not stare at the operating light source. For eye safety, the following requirement applies to luminaires with a colour temperature of 4000K in combination with light beam [EE] / [EES]: The luminaire should be positioned so that prolonged... -
Page 6: Installation Procedure
3) Remove gear box cover B by releasing screws C using a Torx T-25 / T-30 tool (provided by WE-EF). For wireless version: Pull off connector X of receiver Y. Do not stress the cables. - Page 7 4) Check that rating shown on luminaire label 5) Feed mains supply cable D through conforms with mains electrical supply. cable gland E. See Fig I. 11/18 IP66 FLC230-LED 220-240V/50-60 Hz 139-XXXX SOE XXXXXXX LED 3000K 12W item no. XXX (example) Fig I.
- Page 8 6.1) For DMX only: If through wiring (daisy-chain) for the DMX signal is required, remove resistor R between DMX in + and DMX in – of terminal K and connect outgoing DMX wires instead. Do not remove resistor R, if no through wiring for the DMX signal is required. Might change packing ring in cable gland in order to be suitable for single DMX cable SHIELD in +...
- Page 9 J. Aim luminaire (see illustration), tighten screws G firmly (max. 100 Nm). In addition, tighten screw H (max. 6 Nm) using a Torx T-30 tool (provided by WE-EF) to secure orientation of luminaire (not necessary for FLC220). Loosen...
- Page 10 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9255W0221 © WE-EF 2020 subject to change.
