WE-EF FLC301 Installation And Maintenance Instructions Manual
Projector wall bracket
Hide thumbs
Also See for FLC301:
- Installation and maintenance instructions manual (19 pages) ,
- Manual (16 pages) ,
- Installation and maintenance manual (13 pages)
Advertisement
Quick Links
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires the
use of matching tools.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Projector
FLC301 Wall bracket
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WE-EF FLC301
Summary of Contents for WE-EF FLC301

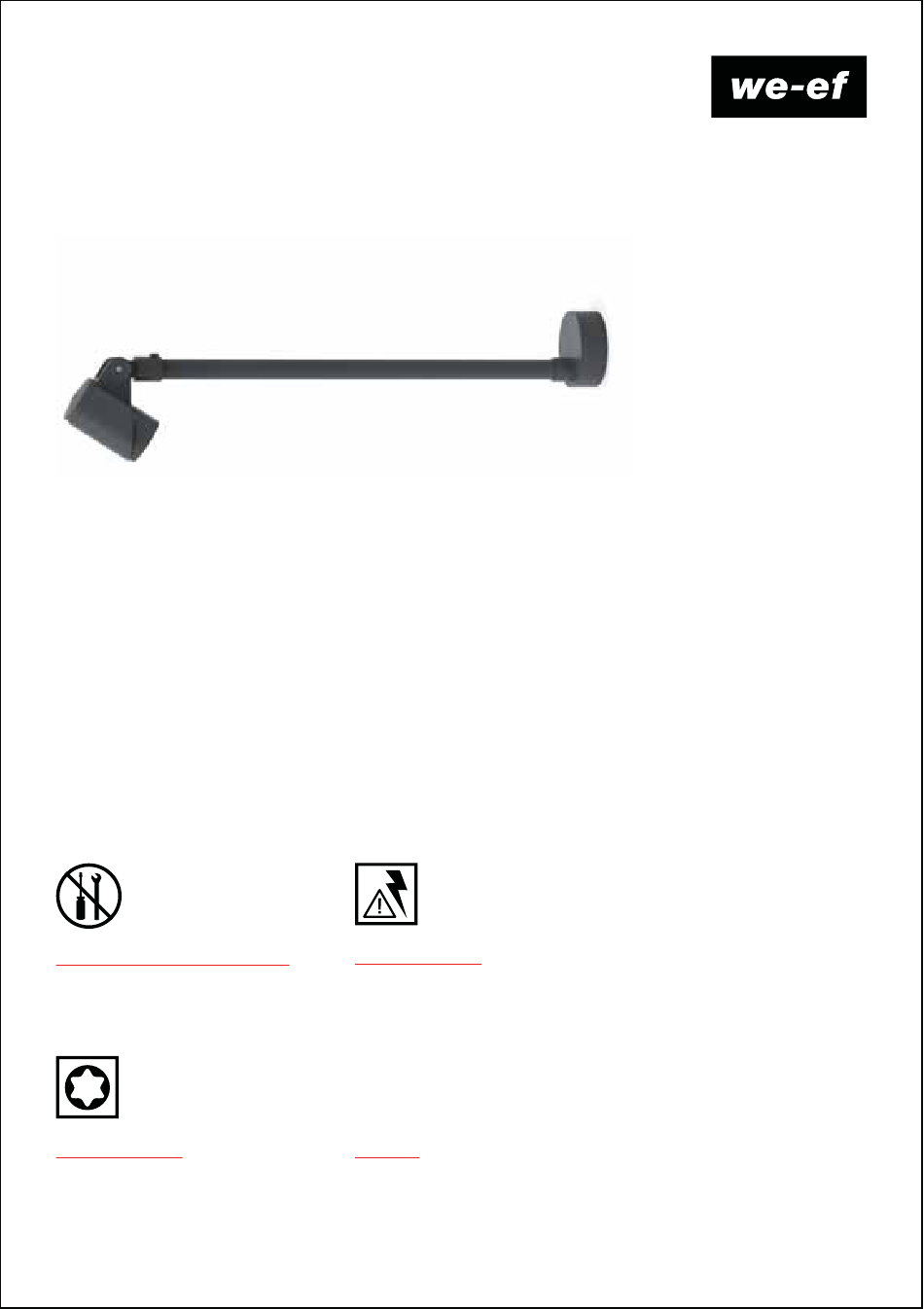

- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector FLC301 Wall bracket Surge Protection Do not open during installation This product features built-in surge protection circuitry in compliance with This product is factory-sealed. Refer to the instructions contained in this applicable standards.
- Page 2 Projector ø 6 ø 135 IP66, IK08. Class I. T a = 40°C Weight for FLC301 Wall bracket...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation
Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation. -
Page 5: Installation Procedure
Installation Procedure 1) Switch off mains electrical supply. 2) Check that rating shown on luminaire label conforms with mains electrical supply. 07/20 IP66 FLC301-LED 220-240V/50-60 Hz 145-XXXX SOE XXXXXXX LED 3000K 12W item no. XXX (example) A by loosening D. Drill screw B Detach terminal connector C. - Page 6 5) Feed mains supply cable G (and second cable A, insert and thighten H for through wiring, if required) through the screws D. pressure screw I A in position. 7) Connect mains supply cable G leads to 8) Ensure that all surfaces are clean and dry. respective terminals of socket K: a) ON-OFF (L = Phase, N = Neutral, and attach terminal connector C.
- Page 7 9) Loosen screws M and N slightly. 10) For accessory Linear Spread Lens IO-180 or Aim luminaire in desired direction, retighten glare shield ES-FLC301: Turn frame O to set screws M and N. desired orientation of light or shielding.
- Page 8 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9272W0721 © WE-EF 2021 subject to change.
