Safety Notice
The manufacturer is discharged from liability when damage
is caused by improper use or installation.
If any luminaire and/or accessory is subsequently modi-
fied, the persons responsible for the modification shall be
considered as manufacturer.
Notice: In case the luminaire is equipped with an optio-
nal available surge protector, the function can get tested
if the signal LED is lit green when the supply voltage is
turned on.
In case the surge protector is defective, the LED device
gets automatically disconnected from the mains supply.
If the signal LED is not lit, the luminaire is not functioning.
For operation as color changer the floodlights of the
FLC200-CC series require a DMX control signal. The ope-
ration without control signal may lead to error.
External boxes with LED driver are required for the CC
luminaires.
WE-EF LIGHTING USA
Tel +1 724 742 0030
info.usa@we-ef.com
we-ef.com
FLC210 LED_261121 / 006-1684
Technical specifications are subject to change.
© WE-EF 2022
WE-EF LIGHTING
Installation and
Maintenance Instructions for
Projector
FLC210 LED

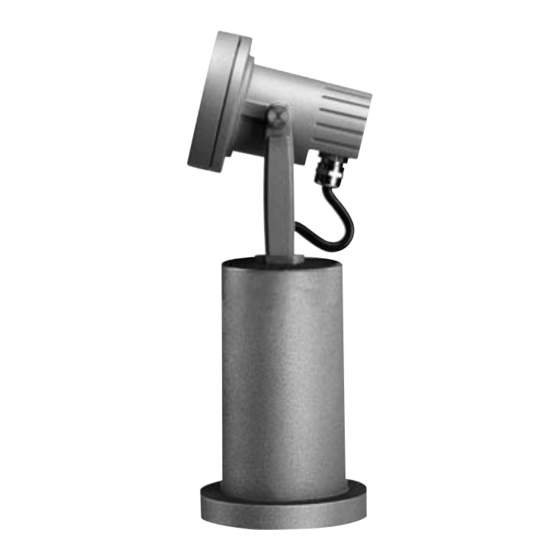

FLC210 LED Profile Projector
Advertisement
Related Manuals for WE-EF FLC210 LED
Summary of Contents for WE-EF FLC210 LED
- Page 1 If the signal LED is not lit, the luminaire is not functioning. FLC210 LED For operation as color changer the floodlights of the FLC210 LED Profile Projector FLC200-CC series require a DMX control signal. The ope- ration without control signal may lead to error.
-
Page 2: Maintenance
Projectors IP66, IK07 Installation FLC210 / FLC210 TW/CC FLC210 PP / FLC210 PP CC/TW The product must be installed and maintained by In case of component failure, LED replacement a suitably qualified professional in compliance with due to abnormal circumstances or at end of life, 5.91 3.94 5.91... - Page 3 3) Loosen the screws C and remove the cover B. 4) Check that rating shown on the luminaire label conforms with the mains electrical supply. 12/17 IP66 ON-OFF 0-10V FLC210 LED 120-277V / 60 Hz 139-XXXX SOE XXXXXXX LED 3000K XXW item no. XXX 5) Feed mains supply cable D through cable gland E.
- Page 4 Only for PP Version Only for PP Version 1) Loosen screws J (do not remove). To dismantle 2.1) Gobo projector – [GP] Pull the gobo cassette out of the gobo holder. the frame (for setting or adjusting of the optical Loosen screw P on the gobo cassette, unfold elements), always use the passage holes L.
- Page 5 8) Reposition gear box cover B and tighten screws C evenly. Torque Screw Torque max. 2,0 Nm (17.7 in-lb) max. 4,0 Nm (35.4 in-lb) max. 23 Nm (203.6 in-lb) Cable glands max. 1,5 Nm (13.3 in-lb) 9) Loosen the two screws G slightly. Aim luminaire (see illustration Swivel range: -45 °...
- Page 6 80 ft. 139-6978 FLC210-TW: max. 1300mA ; FLC210-TW PP: max. 500mA Outgoing max. 16 AWG Wiring Diagrams Channel 2 FLC210-CC/FLC210-TW 006-1698 Channel 1 Technical specifications are subject to change. © WE-EF 2022...
- Page 7 Protect our environment: Discard used LEDs in compliance with the most recent environmental legislation. WE-EF LIGHTING USA Tel +1 724 742 0030 GB200_LED_151021 / 006-1771 info.usa@we-ef.com Technical specifications are subject to change. we-ef.com...
- Page 8 139-6978 IP66/67 3) Switch off the mains electrical supply. 9.04 7.86 4.73 2.95 4) Connect cable via main cable gland and connect 5) For connecting the luminaires, please note the to the appropriately marked terminals. wiring instructions that are included with the For through-wiring version, an additional screw luminaires.
- Page 9 139-6979 IP66/67 3) Switch off the mains electrical supply. 7.86 9.04 2.95 4) Connect cable via main cable gland and connect 6) For connecting the luminaires, please note the to the appropriately marked terminals. wiring instructions that are enclosed with the 4.73 For through-wiring version, an additional screw luminaires.
