Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires
the use of matching tools.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

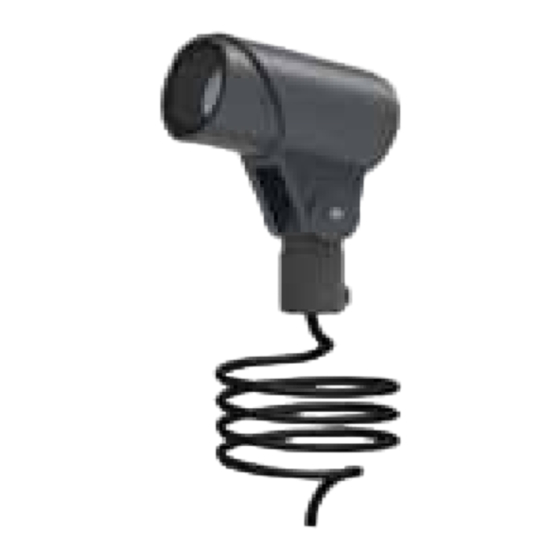

Projector
FLC301 Spigot mounted

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLC301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WE-EF FLC301

Summary of Contents for WE-EF FLC301

  • Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector FLC301 Spigot mounted Surge Protection Do not open during installation This product features built-in surge protection circuitry in compliance with This product is factory-sealed. Refer to the instructions contained in this applicable standards.

  • Page 2: Mounting Accessories

    Ground spike SF-FLC1 for FLC301 Spigot mounted 145-9535 EF1 for FLC301 Spigot mounted 310-9102 Junction box CF-FLC1 for FLC301 Spigot mounted 145-9536 JB1 with side entry for FLC301 Spigot mounted 310-9002 JB1 with wall entry for FLC301 Spigot mounted 310-9025...

  • Page 3: Maintenance

    Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on.

  • Page 4: Installation

    Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation.
  • Page 5 Installation Procedure 1) Switch off mains electrical supply. 2) Check that rating shown on luminaire label conforms with mains electrical supply. 10/20 IP66 FLC301-LED 220-240V50-60/Hz 145-XXXX SOE XXXXXXX LED 3000K 4W item no. XXX (example) 3) Loosen screw A. 4) Place luminaire on one of the following mounting accessories.

  • Page 6: Junction Box

    4.2) Feed cable B from luminaire C through cable B from luminaire C through pivot G and pivot and cable entry G hole D F over pivot. over pivot. Ground spike Junction box 4.3) Feed cable B from luminaire C through 4.4) Feed cable B from luminaire C through pivot and cable entry I of ground spike K.
  • Page 7 7) Connect mains supply cable G leads to 8) For accessory Linear Spread Lens IO-180 or Glare respective terminals in terminal connector C: Shield ES-FLC301: Turn frame O to set desired a) ON-OFF (L = Phase, N = Neutral, orientation of light or shielding.
  • Page 8 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9271W0721 © WE-EF 2021 subject to change.
  • Page 9 WE-EF LEUCHTEN Installation and Maintenance Instructions Accessories Ground Spike Junction box Surge Protection Do not open during installation This product features built-in surge protection circuitry in compliance with This product is factory-sealed. Refer to the instructions contained in this applicable standards.
  • Page 10 Accessories Suitability 1. FLB100 Spigot mounted 2. FLC300 Spigot mounted 3. FLD100 Spigot mounted 145-9535 Ground spike 310-9102 145-9536 Junction box (Side entry) 310-9002 Junction box (Wall entry) 310-9025...
  • Page 11 Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: longer be valid and shall become the full responsibility of the modifying person/organisation. Claims based on defects attributable to improper installation and/or application, and the consequences thereof, are excluded.

  • Page 12: Installation Procedure

    Installation Procedure 1) Feed cable from luminaire through pivot and Drill relevant holes E and insert nylon plugs R. Insert and tighten screws D. Warning: Ensure not to damage any electrical cable, water pipe or other items drilling holes. 1) Drill screw holes A and cable entry hole B in C in position.
  • Page 13 Ground Spike 1) Note: It is the responsibility to installer to ensure 2) Place ground spike H into the ground. conditions. 3) Feed cable from luminaire through pivot and cable gland I. After installation of luminaire, tighten cable gland I.
  • Page 14 Junction box 1) Loosen screws K and remove cover L from 2) Feed main supply cable R through wall entry body M. or side entry of body M. WALL ENTRY SIDE ENTRY For side entry installations, replace the pre-installed plugs with provided cable glands as required.
  • Page 15 5) After installation of luminaire, place cover L on body M and tighten screws K.
  • Page 16 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9253W1220© WE-EF 2020 subject to change.
