Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires the
use of matching tools.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

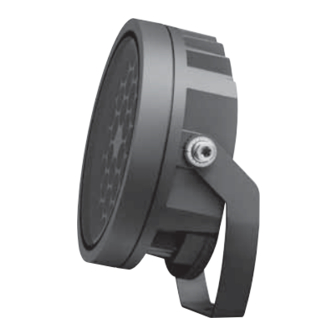

Projector
FLC220 LED
FLC230 LED
FLC240 LED
FLC260 LED
FLC220-CC LED
FLC230-CC LED
FLC240-CC LED
FLC260-CC LED
FLC220-TW LED
FLC230-TW LED
FLC240-TW LED
FLC260-TW LED
Advertisement
Table of Contents
Related Manuals for WE-EF FLC220 LED
Summary of Contents for WE-EF FLC220 LED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector FLC220 LED FLC230 LED FLC240 LED FLC260 LED FLC220-CC LED FLC230-CC LED FLC240-CC LED FLC260-CC LED FLC220-TW LED FLC230-TW LED FLC240-TW LED FLC260-TW LED Installation tools Surge Protection Mounting hardware used on this product...
-
Page 2: Tools Required
FLC230 0.054 for FLC240 0.090 for FLC260 0.116 for FLC220-CC for FLC230/240/260-CC Tools required – Screwdriver T-25 / T-30 (provided by WE-EF) 0.14 – 2.5 mm ø 5.5 – 12 mm – Screwdriver with blade 3 x 1 DMX-Power... -
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation
Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation. -
Page 5: Installation Procedure
3) Remove gear box cover B by releasing screws C using a Torx T-25 / T-30 tool (provided by WE-EF). For wireless version: Pull off connector X of receiver Y. Do not stress the cables. - Page 6 4) Check that rating shown on luminaire label 5) Feed mains supply cable D through conforms with mains electrical supply. cable gland E. See Fig I. 11/18 IP66 FLC230-LED 220-240V/50-60 Hz 139-XXXX SOE XXXXXXX LED 3000K 12W item no. XXX (example) Fig I.
- Page 7 6.1) For DMX only: For the last luminaire in each DMX bus, additionally connect resistor R (provided by WE-EF) between DMX+ and DMX- in terminal block F. Might change packing ring in cable gland in order to be suitable for single DMX cable.
- Page 8 J. Aim luminaire (see illustration), tighten screws G firmly (max. 100 Nm). In addition, tighten screw H (max. 6 Nm) using a Torx T-30 tool (provided by WE-EF) to secure orientation of luminaire (not necessary for FLC220). Loosen...
- Page 9 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9255W0420 © WE-EF 2020 subject to change.
