WE-EF LEUCHTEN
Montage- und
Wartungshinweise für

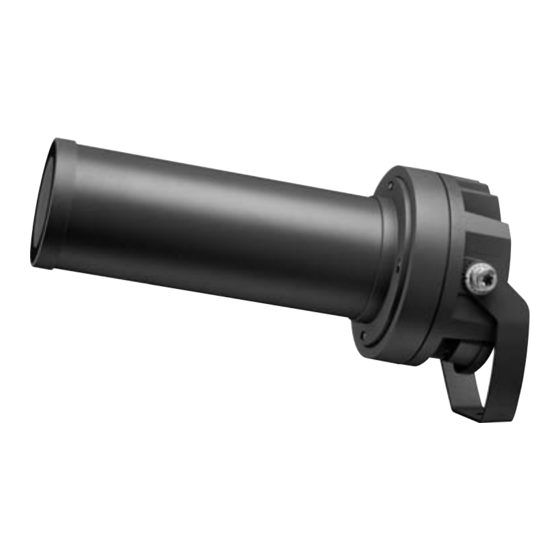

FLC230 LED Projektor
Installation and
Maintenance Instructions for
FLC230 LED Profile Projector

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLC230 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for WE-EF FLC230 Series

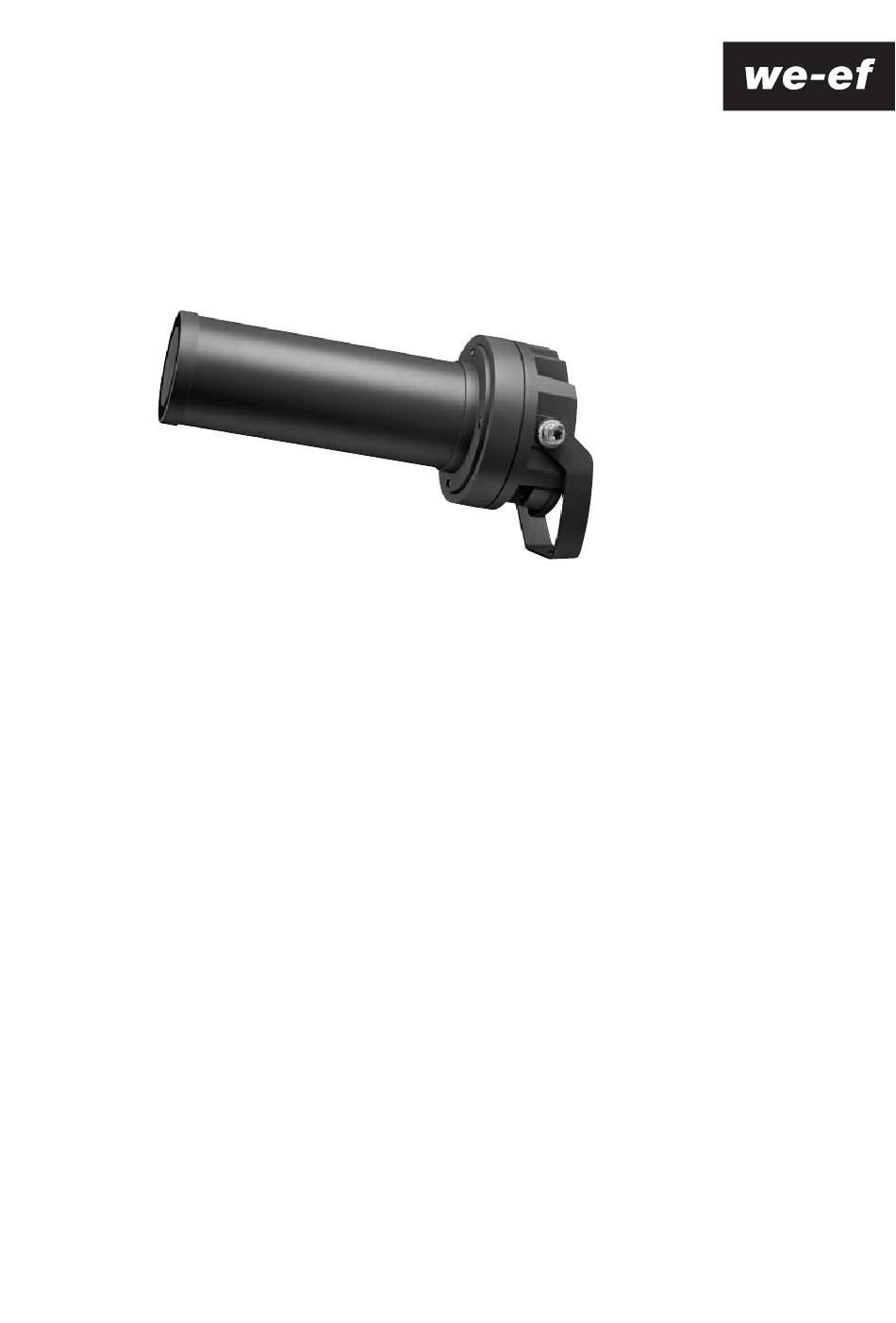

  • Page 1 WE-EF LEUCHTEN Montage- und Wartungshinweise für FLC230 LED Projektor Installation and Maintenance Instructions for FLC230 LED Profile Projector...
  • Page 2 Gobo Durchmesser Gobo diameter Standard Durchmesser außen 86 mm, innen 60 mm. Standard diameter outside 86 mm, inside 60 mm. WE-EF empfiehlt einen Innendurch messer von 48 mm. WE-EF recommends an inside diameter of 48 mm. Benötigtes Werkzeug Tools required –...
  • Page 3: Montage

    Die Montageanleitung des Scheinwerfers beachten! Follow installation instruction for profile projector. (WE-EF Art.-Nr. 006-1348) (WE-EF Part ID 006-1348) Bei Fragen wenden Sie sich bitte an unsere technische In case of questions please contact our technical hotline: Hotline unter +49 5194 909209 (Montag - Freitag von +49 5194 909209 (from Monday - Friday from 08.00 until...
  • Page 4 1) Schrauben J leicht lösen (nicht herausdrehen). 1) Slightly loosen the fasteners J; do not remove them. Den Projektor K nach links drehen und vorsichtig Turn the profile K to the left and carefully remove it nach vorn abnehmen. by pulling it towards the front. 2) Transportsicherung L aus dem Inneren des Projektor 2) Remove the transport lock L from inside the profile K.
  • Page 5 Haltefedern P wieder zurück schieben. align and slide the retention springs P back into place to secure it. WE-EF empfiehlt für den Gobo einen Innendurch - messer von 48 mm. WE-EF recommends an inside diameter of 48 mm for the gobo.
  • Page 6 Frame Projektor – [FP] Frame projector – [FP] Bei Verwendung des Konturenschiebers O in der The contour of the emitted light may be set with the Halterung N, kann die Kontur des Lichtaustrittes mit four shutters X by using the contour slide O in the den vier Shuttern X eingestellt werden.
  • Page 7 7) Nur bei Gobo Projektor – [GP] 7) Only for Gobo projector – [GP] Direkt hinter der Zoom-Optik Q ist ein Shutter S A shutter S (D = 42 mm) is located directly behind (D = 42 mm) angebracht. Dieser verbessert die the zoom lens Q.
  • Page 8 Überspannungsschutz Surge Protection Dieses Produkt verfügt über integrierte Überspannungsschutz - This product features built-in surge protection circuitry in complian- schaltungen gemäß den geltenden Normen. Für den umfassenden ce with applicable standards. For comprehensive protection of a Schutz einer Leuchtenanlage vor Blitzein schlägen u.Überspannun- luminaire installation against lightning and electrical surges, it is gen ist es wichtig, die Netz- und Dateneinspeisungsleitungen auf essential to cover mains supply and data input lines at the distribu-...
  • Page 9 FLC230 LED_PP_010219 / 006-1386 persons responsible for the modification shall be considered as Technische Änderungen vorbehalten. manufacturer. Technical specifications are subject to change. The installation on site must comply with local and/or national © WE-EF 2019 health and safety regulations.

This manual is also suitable for:

Flc230-led-ppFlc230-cc-led-ppFlc230-tw-led-pp
