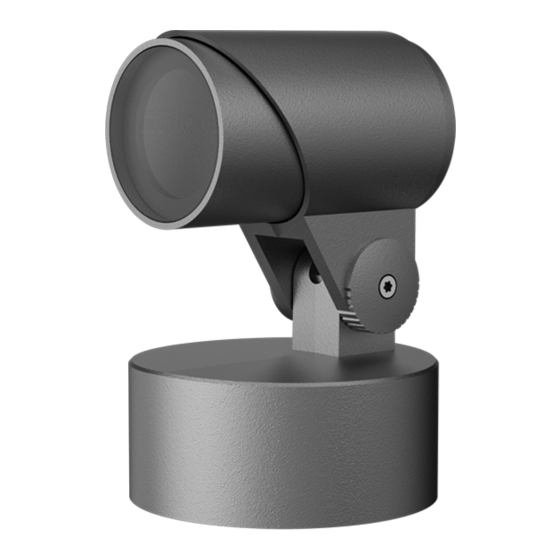

WE-EF FLC301 Surface mounted Installation And Maintenance Manual
  1. Manuals
  2. Brands
  3. WE-EF Manuals
  4. Projector
  5. FLC301
  6. Installation and maintenance manual

WE-EF FLC301 Surface mounted Installation And Maintenance Manual

Hide thumbs Also See for FLC301 Surface mounted:

Advertisement

Quick Links

Download this manual
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires the
use of matching tools.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Projector
FLC301 Surface mounted

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLC301 Surface mounted and is the answer not in the manual?

Questions and answers

Related Manuals for WE-EF FLC301 Surface mounted

Summary of Contents for WE-EF FLC301 Surface mounted

  • Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector FLC301 Surface mounted Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.

  • Page 2: Mounting Accessories

    Projector IP66, IK08. Class I. T a = 40°C Weight for FLC301 Surface mounted Mounting Accessories Short post EM1 for FLC301 Surface mounted 145-9200 Installation instruction is available in additional document, TO9221W...

  • Page 3: Maintenance

    Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on.

  • Page 4: Installation

    – DO NOT INSTALL ON WET CONCRETE! Handling: handled with care, scratches and damage to the coated surface can result in galvanic corrosion. A WE-EF warranty does not cover any adverse reaction or damage, due to improper installation and requests that our recommendations are followed.

  • Page 5: Installation Procedure

    Installation Procedure 1) Switch off mains electrical supply. A by loosening screw B (Torx T-20, not supplied by WE-EF). Detach terminal connector C. 3) Check that rating shown on luminaire label conforms with mains electrical supply. Drill relevant holes E and insert wall plugs F*.
  • Page 6 7) Ensure that all surfaces are clean and dry. 8) Loosen screw M slightly by torx T-20 (not Attach terminal connector C and position supplied by WE-EF). Aim luminaire in A. Turn desired direction, retighten screw M. luminaire towards object to be illuminated.
  • Page 7 9) For accessory Linear Spread Lens IO-180: Turn frame K to set desired orientation of light.
  • Page 8 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9270W0721 © WE-EF 2021 subject to change.
  • Page 9 WE-EF LEUCHTEN Installation and Maintenance Install Instructions Accessory Short post...
  • Page 10 Accessories Suitability 1. FLB100 Surface mounted 2. FLC300 Surface mounted 3. FLD100 Surface mounted Short post...
  • Page 11 Installation Installation Procedure The product must be installed and maintained by a 1) Ensure mounting surface A is clean and free of debris. latest building/construction and/or electrical 2) Ensure anchor bolts C suit hole pattern in short regulations and relevant legislation. E and feature appropriate, levelled protrusion from surface A.
  • Page 13 Fax +61 3 8587 0499 WE-EF HELVETICA WE-EF LIGHTING United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 TO9221W0121 © WE-EF 2021 subject to change.
