OPERATION

After installation, the media converter should function without operator
intervention.

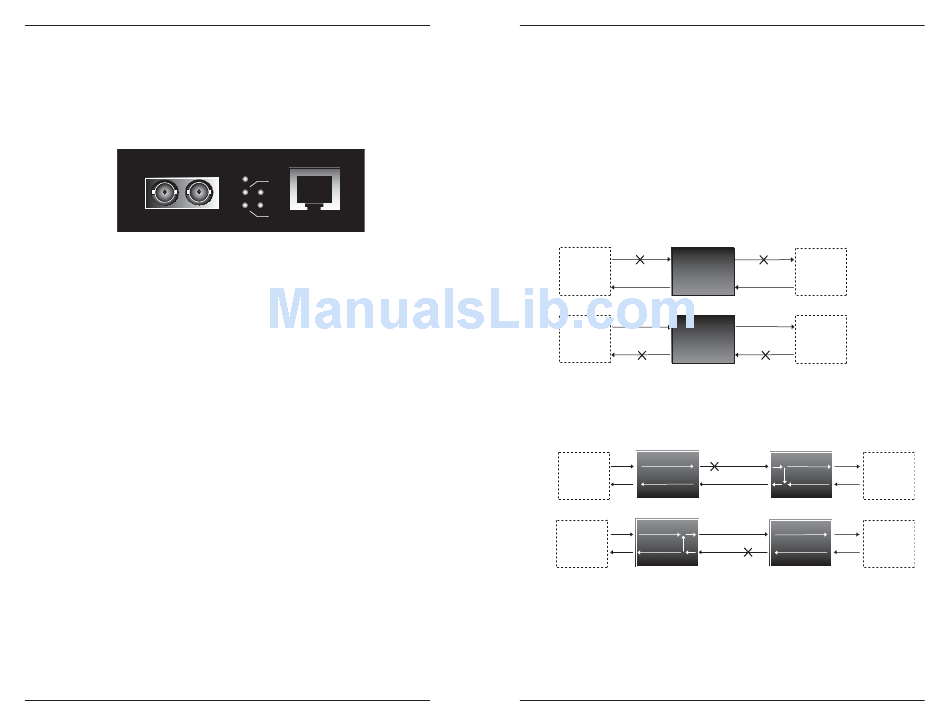

Status LEDs
Use the status LEDs to monitor media converter operation in the network.
RX
TX
Fiber
Power Illuminated green LED indicates connection to external AC
power.
SDF Signal Detect/Fiber: Steady green LED indicates fiber port is
connected to device.
SDC Signal Detect/Copper: Steady green LED indicates RJ-45
twisted-pair copper port is connected to device.
RXC Receive/Copper: Flashing green LED indicates packets are seen
on twisted-pair copper RJ-45 port.
RXF Receive/Fiber: Flashing green LED indicates packets are seen
on fiber port.
6
Power
SDF
SDC
RXC
RXF UTP/STP
C/E-100BTX-FX-05
Pause Control Frame
When both ends of a full-duplex media coverter link are able to send and
receive Pause Control Frames AND the media converter four-position switch
is set to allow Pause Control Frame propagation (see page 3), then the Pause
Control Frame feature can improve network performance by allowing one
end of the link to signal the other to discontinue frame transmission for a set
period of time to relieve buffer congestion.

Link Pass-Through

When the media converter four-position switch is set to allow Link Pass-
Through (see page 4), then a fault on one side of the media coverter stops
signal and data transmission on the other side.
Original Fault
100Base-TX
Copper
Media Converter
Device
100Base-TX
Copper Media Converter
Device
Si l d d t

Far-End Fault

When the media converter four-position switch is set to enable Far-End Fault
(see page 4), then a fault on an incoming fiber link causes the media
converter to transmit a Far-End Fault signal on the outgoing fiber link.
100Base-TX
Copper
Device
(Sends a Far-End
Media Converter
(Sends a Far-End
100Base-TX
Copper
Device
Media Converter
Signal and data
transmission
is stopped
100Base-FX
Fiber
Device
100Base-FX
Fiber
Device
Original Fault
100Base-FX
Fiber Copper
Device
Media Converter
Fault)
Fault)
100Base-FX
Fiber Copper
Device
Media Converter
