Transition Networks C/E-CX-FRL-04 User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards
IEEE 802.3
Case dimensions
3.9" x 3.0" x 1.0"
Environment
Temperature:
Humidity
Altitude
Warranty
Five years
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1998, 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(99mm x 76mm x 25mm)
0-40°C (32° to 104° F )
Slide-In-Module Media Converters
10-90%, non condensing
0-10,000 feet
33048.C
10BASE-2/10BASE-FL
C/E-CX-FRL-04
USER'S GUIDE
The TRANSITION Networks slide-in-module media converter, C/E-CX-FRL-04, designed
to be installed in the TRANSITION Networks Media Conversion Center, E-MCC-1600,
connects 10BASE-CX coaxial cable to 10BASE-FL 850nm multimode fiber-optic cable.

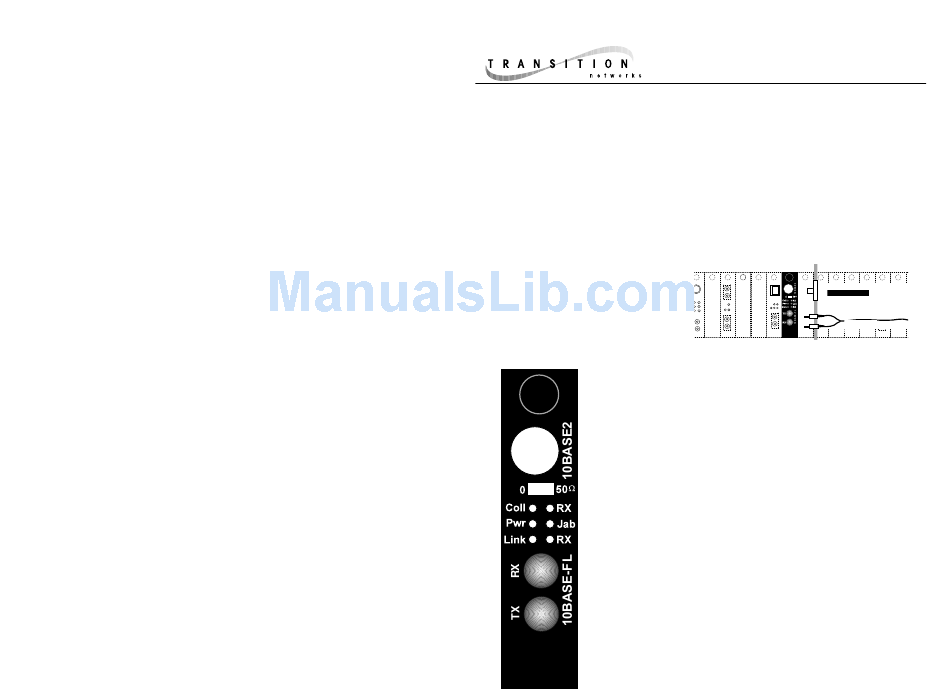

C/E-CX-FRL-04
Provides a coax connector to 10BASE-2
coaxial "thin-net" Ethernet™ cable and a
set of RX (receive) and TX (transmit) ST
10BASE-FL connectors to 850nm
multimode fiber cable.
Coax Switch
A Coax configuration switch sets an internal 10BASE-2 terminator
to EITHER 50 ohms OR 0 ohms.
• 0 ohm switch position is used when connecting to the
middle or in line of a thin coax segment.
• 50 ohm switch positionis used when connecting end of
coax segment DIRECTLY to the media converter's BNC
port.
Status LEDs
Coll(ision) Flashing green LED indicates port is in a collision
state. NOTE: Steady illumination indicates an
excessive number of collisions are occurring on the
port.
RX (Receive) Flashing green LED indicates port is
receiving data.
P(o)w(e)r Steady green LED indicates connection to external AC
power.
Jab(ber) Steady green LED indicates a jabber condition.
Link Steady green LED indicates port is receiving link
TM
Ethernet
signal.
C/E-CX-FRL-04
Minneapolis, MN 55344 USA
10BASE-2
Coaxial Cable
850nm
Multimode
Fiber
TM
Ethernet
C/E-CX-FRL-04
C/E-CX-FRL-04
