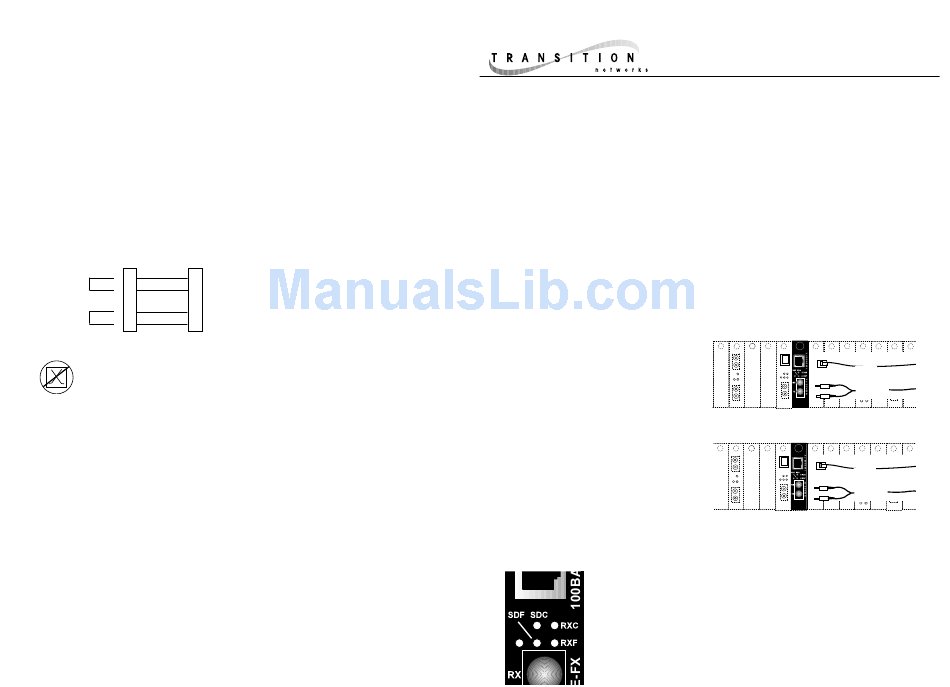

Transition Networks C/E-100BTX-SX-01(SC) User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards 100BASE-SX, IEEE 802.3u
Environment
Temperature:
Humidity
Altitude
Warranty
Lifetime
Straight-through Cable Configuration
Straight-through/crossover 100BASE-TX requirements are satisfied using the
MDI/MDI-X switch with straight-through cable.
Straight Through Cable
1 1
Twisted
Pair #1
2 2
Twisted 3 3
Pair #2
6 6
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Copyright Restrictions
© 1998-1999. 2001TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
0-40°C (32° to 100° F )
10-90%, non condensing
0-10,000 feet
The two active pairs in a 100BASE-TX
network are pins 1 & 2 and pins 3 & 6.
Use only dedicated wire pairs (such as
blue/white & white/blue, orange/white &
white/orange) for the active pins.
33065.C
100BASE-TX/100BASE-SX
Slide-In-Module Media Converters
C/E-100BTX-SX-01, C/E-100BTX-SX-01(SC)
USER'S GUIDE
The TRANSITION Networks C/E-100BTX-SX-01 series of 100BASE-TX to 100BASE-SX
slide-in-module media converters, designed to be installed in the TRANSITION
Networks Media Conversion Center, E-MCC-1600, connect 100BASE-TX unshielded
twisted pair cable to 850 nm multimode fiber-optic cable.
A four-positiion switch allows selection of Auto-negotiation, half-duplex or full-duplex,
and/or Link Pass Through (LPT) /Remote Fault Detection (RFD). An MDI/MDI-X switch
allows straight-through twisted-pair cable to be used for crossover 100BASE-TX
connections.
C/E-100BTX-SX-01
Provides an RJ-45 twisted pair 100BASE-
TX connector and a set of RX (receive)
and TX (transmit) ST 100BASE-SX
connectors to multimode fiber-optic
cable.
C/E-100BTX-SX-01(SC)
Provides an RJ-45 twisted pair 100BASE-
TX connector and an RX (receive) and
TX (transmit) SC 100BASE-SX connector
to multimode fiber-optic cable.
Power Illuminated green LED indicates connection to external
Status LEDs
AC power.
SDF Signal Detect/Fiber: Steady green LED indicates fiber port
is connected to device.
SDC Signal Detect/Copper: Steady green LED indicates RJ-45
port is connected to device.
RXC Receive/Copper: Flashing green LED indicates packets
P
are seen on RJ-45 port.
RXF Receive/Fiber: Flashing green LED indicates packets are
seen on fiber port.
Minneapolis, MN 55344 USA
850 Nanometer
100BASE-TX
Copper
P
850nm 100BASE-SX
Multimode
Fiber
Fast Ethernet TM
C/E-100BTX-FRL
-03
C/100BTX-SX-04
100BASE-TX
Copper
P
850nm 100BASE-SX
Multimode
Fiber
TM
Fast Ethernet
C/E-100BTX-FRL
-03
C/100BTX-SX-04(SC)
