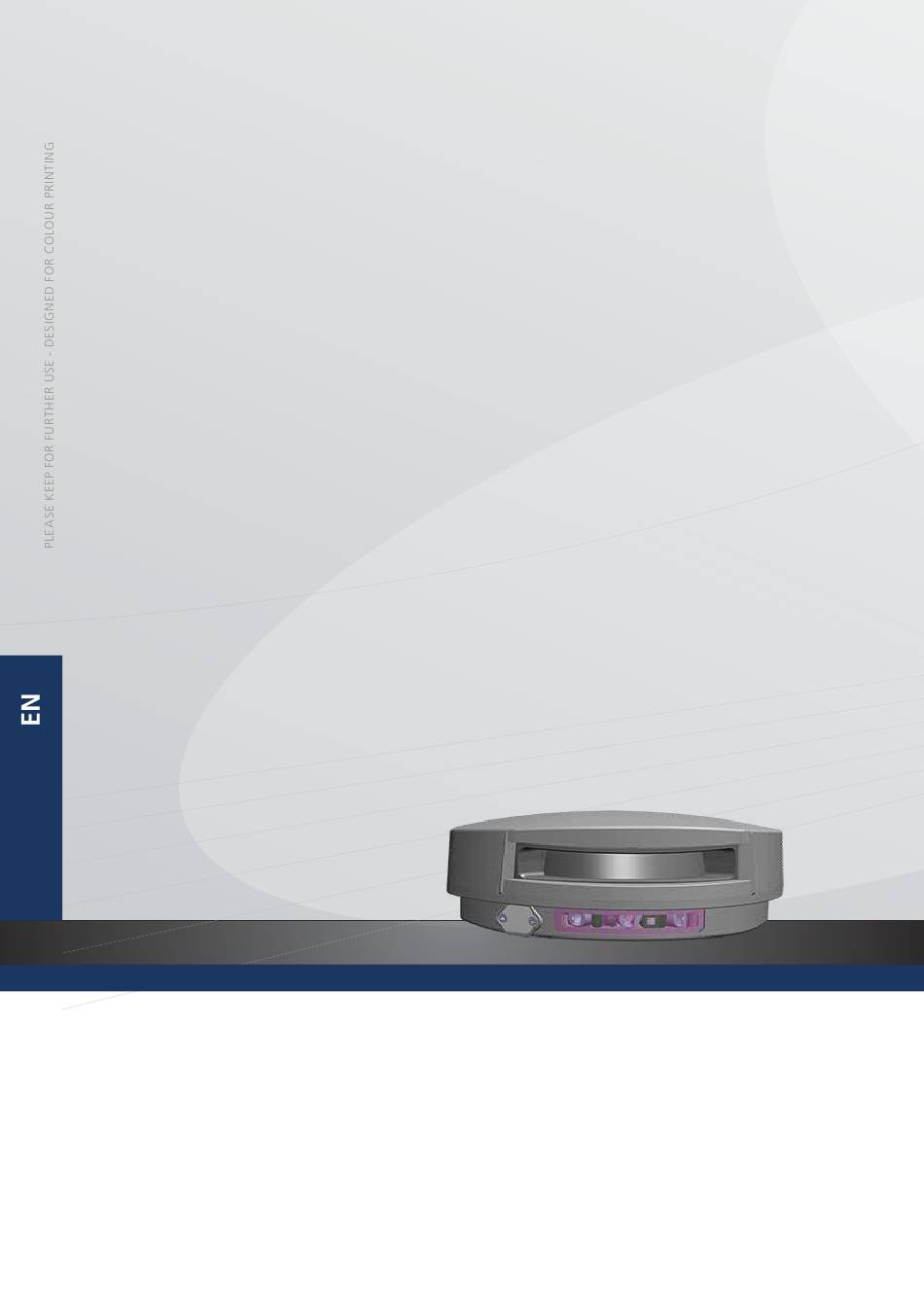

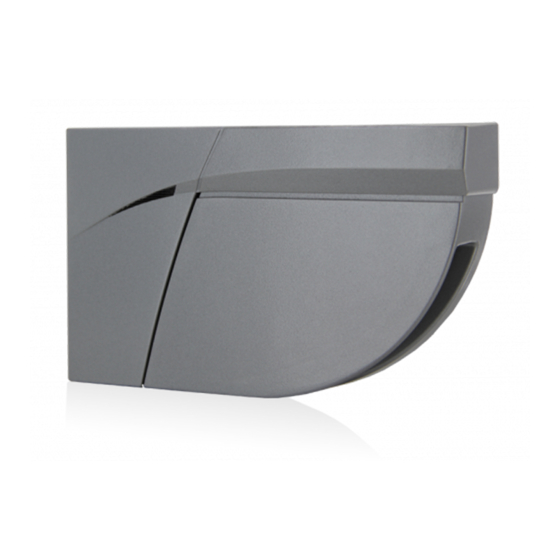

- Page 1 ® - FLATSCAN S COMPACT LASER SCANNER FOR PERIMETER AND WORK OF ART PROTECTION User’s Guide for software version SW 0100 and higher (refer to tracking label on product)
- Page 2 INTRODUCTION The FLATSCAN S is a laser sensor designed for the protection of work of art and other valuables and for the protection of perimeters. It generates an invisible curtain with 400 laser beams, which covers the detection area with a high resolution.
-
Page 3: Led Signals
LED-SIGNALS detection error LED LED flashes quickly LED flashes slowly power on no power LED flashes LED is off SYMBOLS Caution! Remote control Possible Factory values Attention Note Laser radiation sequence remote control adjustments SAFETY TIPS The device emits invisible (IR) and visible laser radiations. The visible laser beams can be activated during the installation process to adjust the position of the detection field. -
Page 4: Installation And Maintenance
INSTALLATION AND MAINTENANCE Avoid extreme Do not cover the laser Avoid moving objects Avoid the presence of Avoid condensation. vibrations. window. and light sources in smoke and fog in the the detection field. detection field. 0°C -10°C Avoid exposure to Avoid direct exposure Do not use dry or dirty Clean the laser window... - Page 5 Bracket installation (optional): Prepare the bracket for the Fix the Flatscan S to the bracket Choose an appropriate location installation. and install the sensor on a solid surface. WIRING GREEN 12-24V DC BROWN POWER SUPPLY WHITE OUTPUT 1(OPTO) YELLOW VIOLET GREY OUTPUT 2(RELAY) PINK...
-
Page 6: How To Use The Remote Control
HOW TO USE THE REMOTE CONTROL Before using the remote control, please check the following points: 1. The max. distance between the sensor and the remote control is 4 m. 2. The sensor's curtain should not be perpendicular to a high reflective surface. A 3-degree angle is necessary between them to guarantee communication between the sensor and the remote control. - Page 7 SETTINGS (11) Detection field 1 (W) (12) Detection field 1 (H) 0-9 Number keys (13) Detection field 2 (W) Detection field (14) Detection field 2 (H) Redirection (15) Uncovered zone Plus (16) Check Values (17) Lock Unlock Minus (18) Output configuration Output activation delay (19) Antimasking &...
-
Page 8: Detection Field
MOUNTING SIDE left right center right left center The Flatscan S can be placed either on the left side, right side or in a central position. DETECTION FIELD 0 - 550 cm 0 - 550 cm 0 - 550 cm 0 - 550 cm Detection area: detection will only be triggered by objects located in the detection area. - Page 9 UNCOVERED ZONE Uncovered zone: can be increased in case of snow, dead leaves, etc. Measured in specific conditions and determined by application and installation. IMMUNITY > > FILTER high filtering Immunity Filter: is increased to filter out environmental interferences such as rain or snow which can trigger false detection.
-
Page 10: Output Configuration
DETECTION field 1 and AREA field 1 field 2 field 2 ACTIVATION Detection area activation: detection field 1 or detection field 2 can be actived or deactived according to the application. DETECTION error field 1 or field 1 field 2 alarm field 2 FIELD... -
Page 11: Troubleshooting
max.30s TEACH-IN setting the field 1 through Teach-in. max.30s setting the field 2 through Teach-in. max.30s setting the background through Teach-in. max.30s setting the field 1&2 through Teach-in. Teach-in: the sensor can automatically learn its environment and its detection field. It will adapt its detection field when the background changes. -
Page 12: Technical Specifications
The warranty is void if unauthorized repairs are made or attempted by unauthorized personnel. BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA-SENSORS.COM...
