BEA FALCON Quick Start Manual

ACCESS CODE
The access code (1 to 4 digits) is recommended to set sensors installed close to each other.
SAVING AN ACCESS CODE:
DELETING AN ACCESS CODE:
Once you have saved an access code, you always need to enter this code to unlock the sensor.
If you do not know the access code, cut and restore the power supply. During 1 minute, you can access the sensor
without introducing any access code.
TROUBLESHOOTING
The door remains
The sensor power is off.
closed.
The LED is OFF.
Improper output
The door does not
configuration on the sensor.
react as expected.
The door opens The sensor is disturbed
and closes by the door motion or
constantly. vibrations caused by the
door motion.
The sensor detects the
The door opens for
no apparent reason. motion of the rain drops or
vibrations.
In highly reflective
environments, the sensor
detects objects outside of its
detection field.
The vehicle detection
The chosen value is not
filter is used, but
optimal for this application.
pedestrians are still
detected.
The LED The sensor needs an access
flashes quickly code to unlock.
after unlocking.
The sensor does Batteries in the remote
not respond to the
control are weak or
remote control.
improperly installed.
SAFETY INSTRUCTIONS
The manufacturer of the door system is responsible for carrying out a risk assessment and installing the sensor and the door system in compliance with
applicable national and international regulations and standards on door safety.
Only trained and qualified personnel may install and set-up the sensor.
The warranty is void if unauthorized repairs are made or attempted by unauthorized personnel.
BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA.BE
BEA hereby declares that the FALCON is in conformity with the basic requirements and the other
relevant provisions of the directives 1999/5/EC and 2004/108/EC.
Angleur, August 2010 Jean-Pierre Valkenberg, Authorized representative
The complete declaration of conformity is available on our website: www.bea.be
Only for EC countries: According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE)
Check the wiring and the power supply.
1
1
Check the output configuration setting on each
sensor connected to the door operator.
1 Make sure the sensor is fixed properly.
2 Make sure the detection mode is unidirectional.
3 Increase the tilt angle.
4 Increase the detection filter.
5 Reduce the field size.
1 Make sure the detection mode is unidirectional.
2
Increase the detection filter.
1 Change the antenna angle.
2 Decrease the field size.
3 Increase the detection filter.
1 Increase the detection filter.
2 Decrease the sensor angle.
3 Increase the installation height.
1 Enter the right access code.
If you do not know the access code, cut and
2
restore the power supply to access the sensor and
change or delete the access code.
1
Check and change the batteries if necessary.

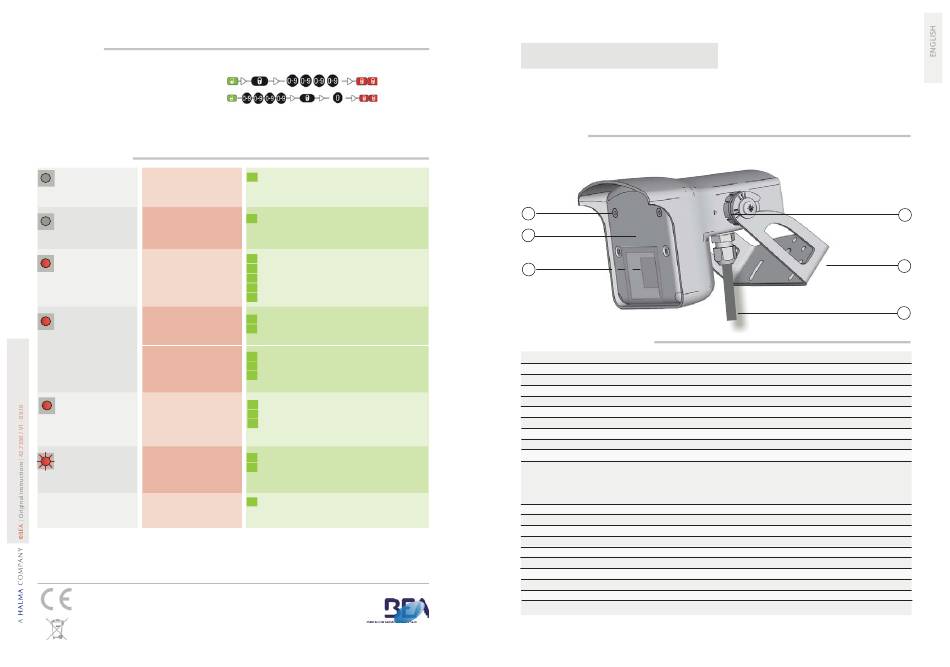

DESCRIPTION
1
2
3
TECHNICAL SPECIFICATIONS
Technology: microwave
Transmitter frequency: 24.150 GHz
Transmitter radiated power: < 20 dBm EIRP
Transmitter power density: < 5 mW/cm²
Detection mode: motion
Detection zone: FALCON: 4 x 5 m ; FALCON XL: 4 x 2 m (typical at 30° and field size 9)
Min. detection speed: 5 cm/s**
Supply voltage: 12V to 24V AC ±10%; 12V to 24V DC +30% / -10%
Mains frequency: 50 to 60 Hz
Max power consumption: < 2 W
Output: relay (free of potential change-over contact)
Max. contact voltage: 42V AC/DC
Max. contact current: 1A (resistive)
Max. switching power: 30W (DC) / 60VA (AC)
LED-signal: red: detection state, parameter indication; green: value indication
Mounting height: FALCON: 3.5 m - 7m; FALCON XL: 2 m - 3.5 m
Degree of protection: IP65
Temperature range: from -30 °C to + 60 °C
Dimensions: 127 mm (L) x 102 mm (H) x 96 mm (W)
Tilt angles: 0° to 180° vertical
Materials: ABS and polycarbonate
Weight: 400 g
Cable lenght: 10 m
Norm conformity: R&TTE 1999/5/EC; EMC 2004/108/EC
Specifications are subject to changes without prior notice.
* Other use of the device is outside the permitted purpose and can not be guaranteed by the manufacturer.
** Measured in optimal conditions

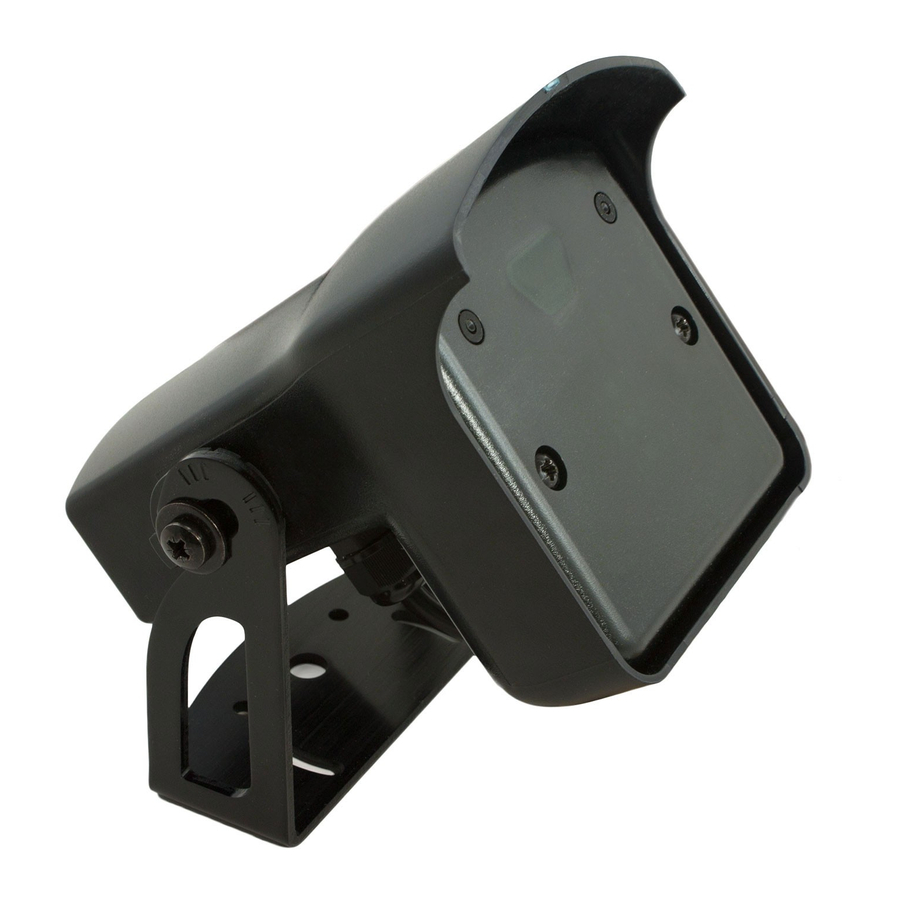

FALCON / FALCON XL
Opening sensor for automatic industrial doors*
FALCON: for normal to high mounting (3.5 - 7 m)
FALCON XL: for low mounting (2 - 3.5 m)
1. push buttons
2. front face
3. radar antenna
4. angle indication
5. bracket
6. cable
4
5
6
