BEA 10LZRFLATSCAN-LERS Quick Manual

QUICK GUIDE
Visit www.BEAinc.com
for full User's Guide.
!
READ BEFORE BEGINNING INSTALLATION & SET-UP
The door control unit
and the header cover
profile must be correctly
grounded.
1

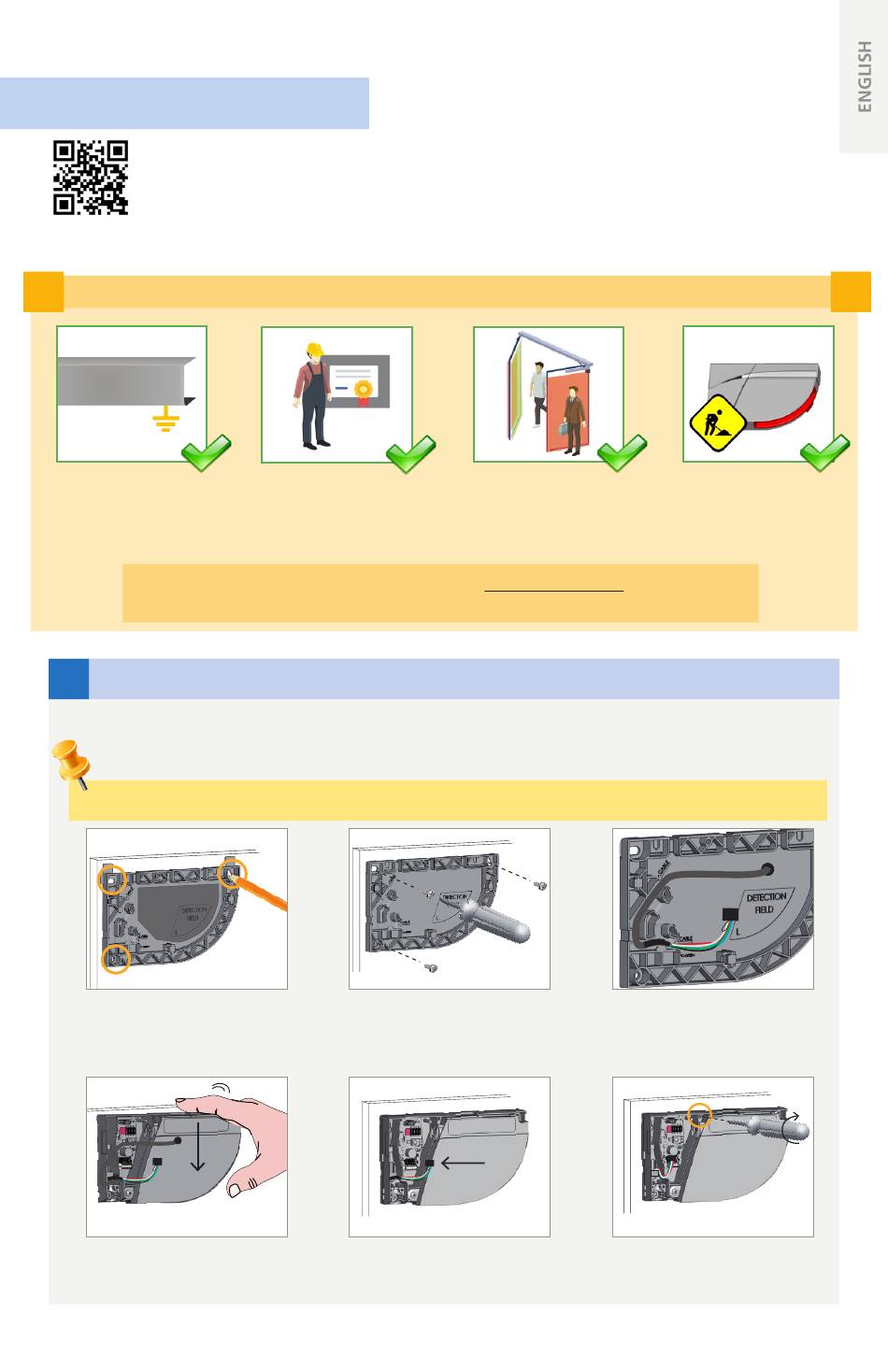

MOUNTING
If installing only one sensor (low-energy, approach side), disregard steps associated with the pass-thru cable.
For applications requiring a spacer, first mount spacer to door, and then mount mounting base to spacer.
Position mounting base on door
frame and mark and drill holes.
Remove cover, pass cable
through, and secure sensor to
mounting base.
75.5959.03 LZR-FLATSCAN SW QG 20200612 75.5959.03 LZR-FLATSCAN SW QG 20200612

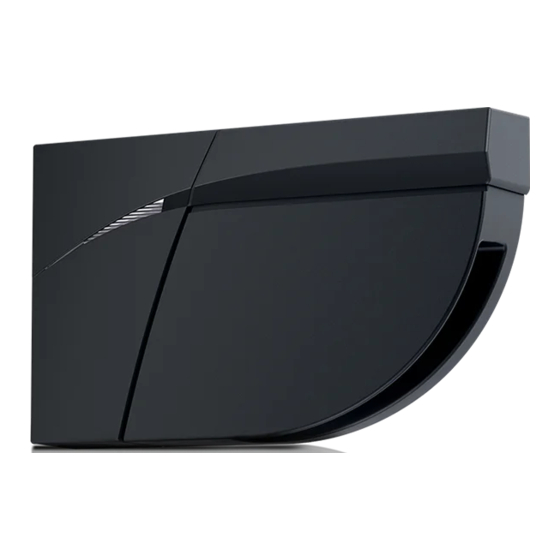

Safety sensor for full- and low-energy automatic swing doors
Only trained
qualified personnel are
recommended to install
and set up the sensor.
THIS SENSOR IS POWERED BY DC VOLTAGE ONLY.
SEE NEXT PAGE FOR INFORMATION REGARDING USE OF A RECTIFIER.
Secure mounting base to door
frame.
Connect black plug to black
connector.
LZR
®
and Always test for proper
operation before leaving
the premises.
-FLATSCAN SW
Do not remove the laser
window protection during
construction.
Drill pass-thru hole in mounting
base and route
secondary cable.
Tighten lock screw.
(US version)
!
primary/
Page 1 of 4 Page 1 of 4
