BEA LZR-FLATSCAN SW Quick Manual

QUICK GUIDE
Visit www.BEAinc.com
for full User's Guide.
!

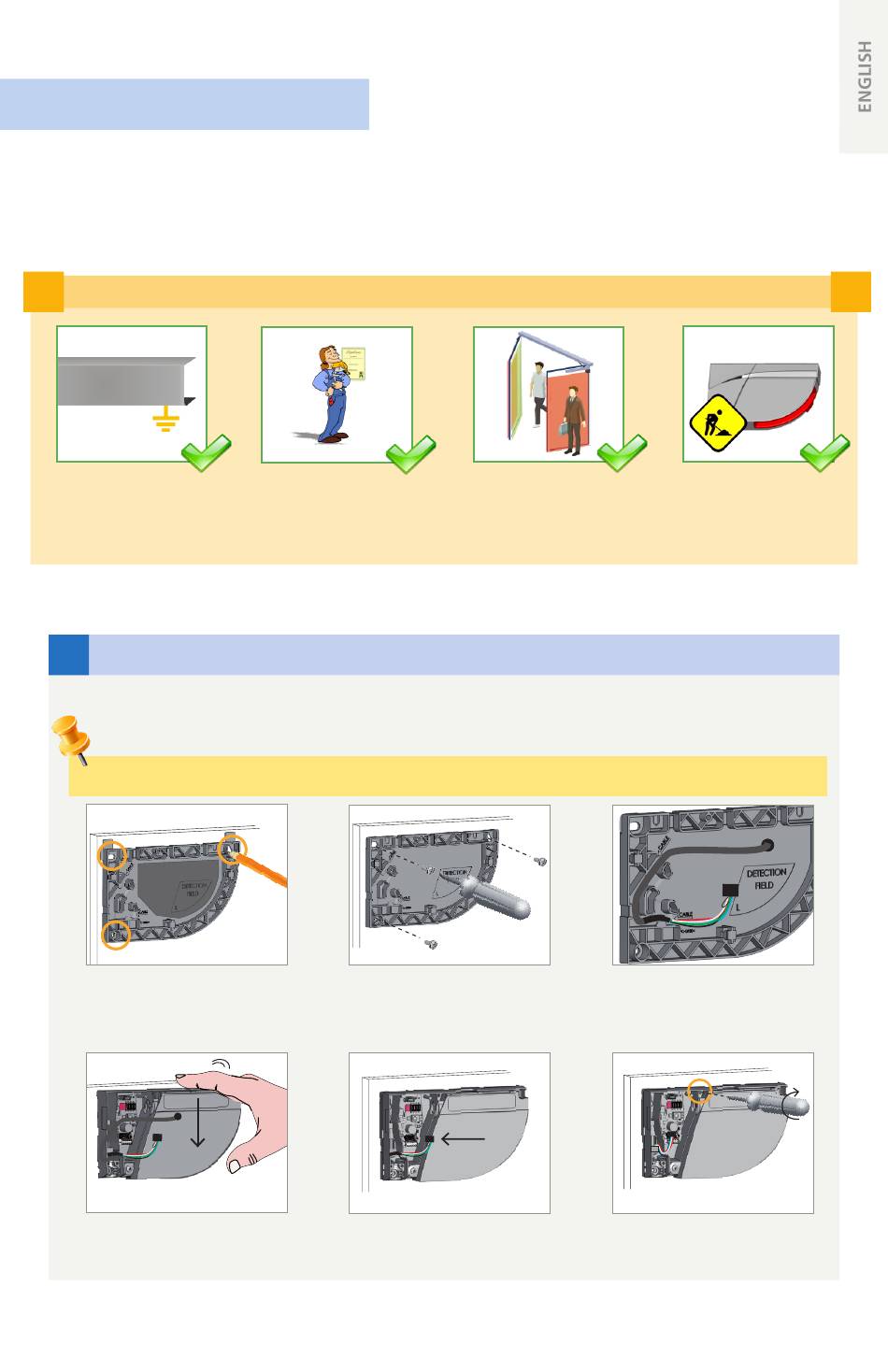

READ BEFORE BEGINNING INSTALLATION & SET-UP
The door control unit
and the header cover
profile must be correctly
grounded.
1
MOUNTING
If installing only one sensor (low-energy, approach side), disregard steps associated with the pass-thru cable.
For applications requiring a spacer, first mount spacer to door, and then mount mounting base to spacer.
Position mounting base on door
frame and mark and drill holes.
Remove cover, pass cable
through, and secure sensor to
mounting base.
75.5959.01 LZR-FLATSCAN SW QSG 20180627 75.5959.01 LZR-FLATSCAN SW QSG 20180627
Safety sensor for full- and low-energy automatic swing doors
Only trained and
qualified personnel are
recommended to install
and set up the sensor.
Secure mounting base to door
frame.
Connect black plug to black
connector.
LZR -FLATSCAN SW
®
Always test for proper
operation before leaving
the premises.
Drill pass-thru hole in mounting
base and route master/slave
cable.
Tighten lock screw.
(US version)
!
Do not remove the laser
window protection during
construction.
Page 1 of 4 Page 1 of 4
