BEA FALCON Quick Start Manual

User's Guide for software version 7.2 and higher
(refer to tracking label on product)
DESCRIPTION
1
2
3
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Detection zone:
Min. detection speed:
Supply voltage**:
Max power consumption:
Output**:
Max. contact voltage:
Max. contact current:
Max. switching power:
LED-signal:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
Materials:
Weight:
Cable length:
Specifications are subject to changes without prior notice.
* Measured in optimal conditions
** External electrical sources must be within specified voltages, max 100W and ensure double insulation from primary voltages.

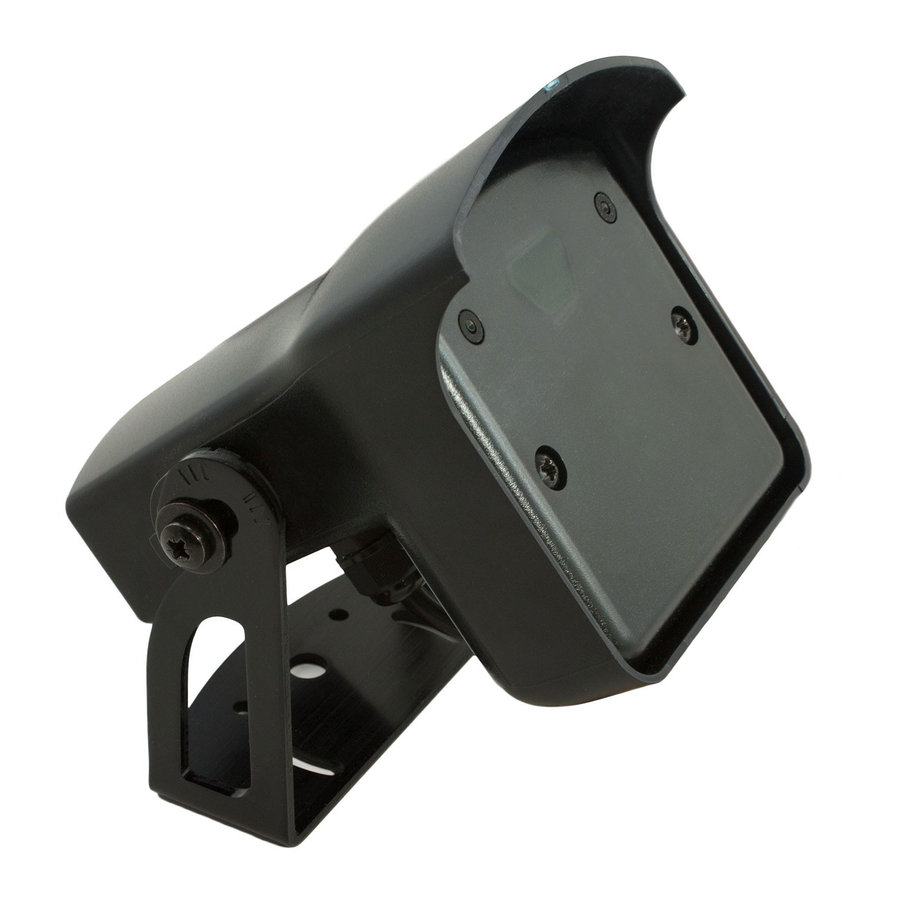

FALCON / -XL
OPENING SENSOR
FOR AUTOMATIC INDUSTRIAL DOORS
FALCON: for normal to high mounting (3.5 - 7 m)
FALCON XL: for low mounting (2 - 3.5 m)
microwave doppler radar
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm²
motion
FALCON: 4 x 5 m ; FALCON XL: 4 x 2 m (typical at 30° and field size 9)
5 cm/s*
12 V to 24 V AC ±10 % (50 - 60 Hz); 12 V to 24 V DC +30 % / -10%
< 2 W
relay (free of potential change-over contact)
30V AC/42V DC
1A (resistive)
30 W
red: detection state, parameter indication; green: value indication
FALCON: 3.5 m - 7m; FALCON XL: 2 m - 3.5 m
IP65 (IEC/EN 60529)
from -30 °C to + 60 °C
127 mm (L) x 102 mm (H) x 96 mm (W)
0° to 180° vertical
ABS and polycarbonate
400 g
10 or 15 m

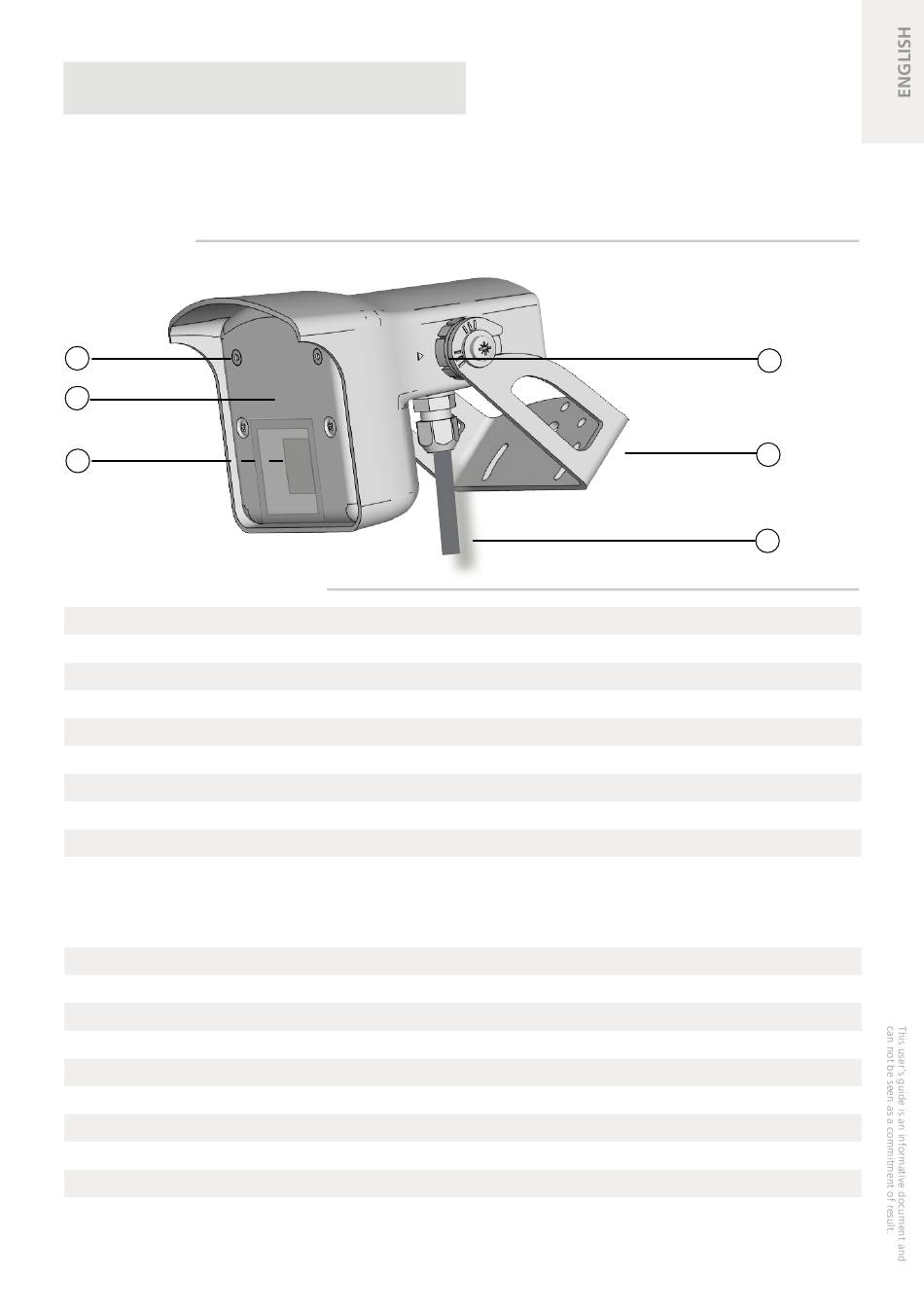

1. push buttons 4.
2. front face 5.
3. radar antenna 6.
angle indication
bracket
cable
