Opitec Wind Machine Manual page 4

Instructions 100.803
Wind Machine
12

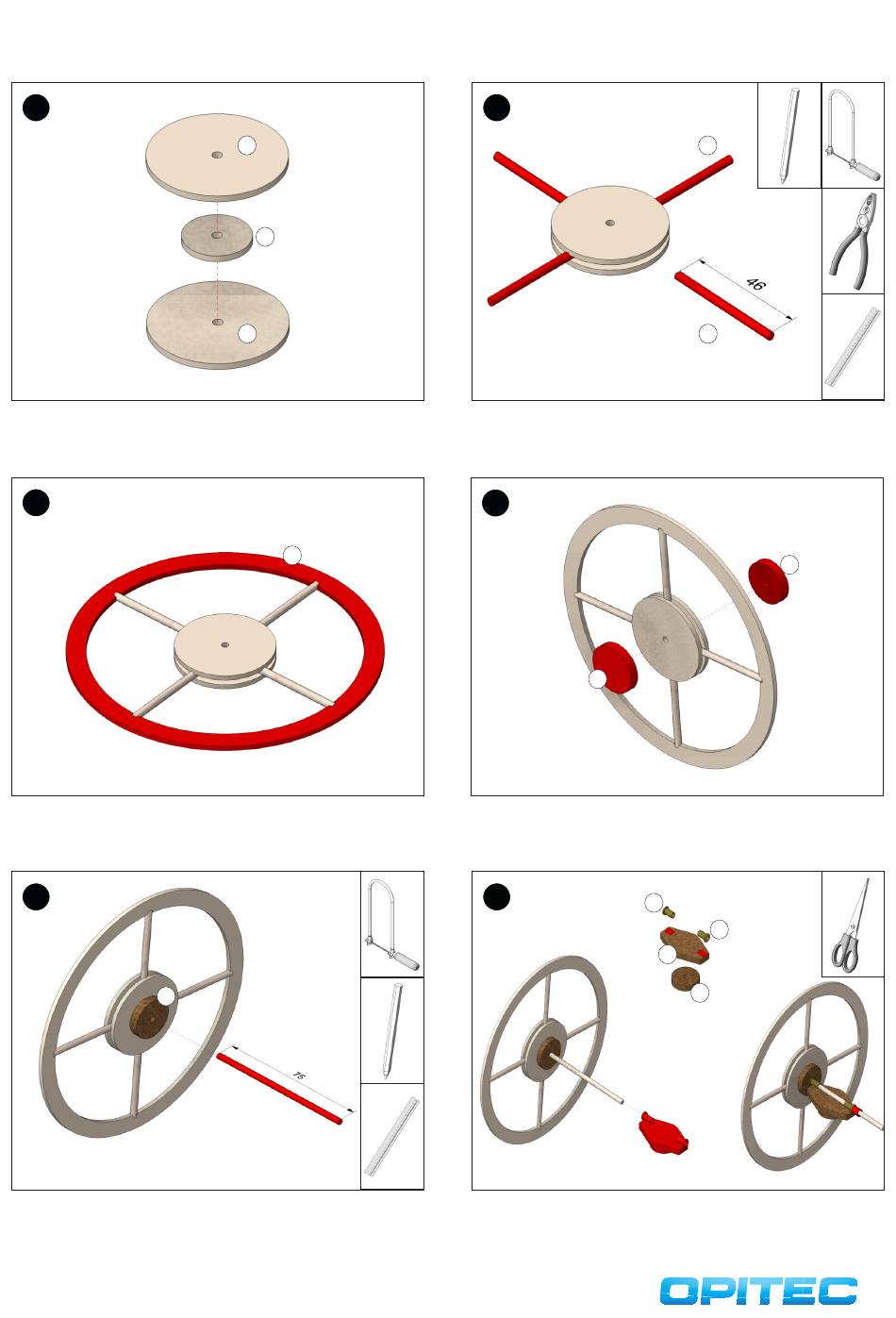

Glue the three cardboard discs (3b, 3d and 3f) on top of each other as
shown, so that the holes are exactly aligned.
14
Glue the discs with the rods in the cardboard part (3a) in the recesses
provided.
16
E
Cut a piece (75 mm) from a round rod (4). Clean the saw cuts and then
glue it in the hole of the cork disc (E).
4
3b
3f
3d
3a
13
Cut four pieces of equal length (46 mm) from a round rod (4) and
clean up the saw cuts. Flatten the ends of the rods with pliers before
inserting them between the discs.Then, offset by 90°, glue them flush
to the intermediate disc.
15
D
Glue the two cork discs (D+E) centered on the wheel from both sides.
17
Glue 2 metal eyelets (5) to the cork part (F). Then glue the cork disc (G)
centered from below. Push the finished bracket onto the rod as shown.
To fix the turbine axle, glue a strip of paper approx. 5 mm wide and
60-80 mm long around the end of the axle.
3b
4
E
5
5
F
G
