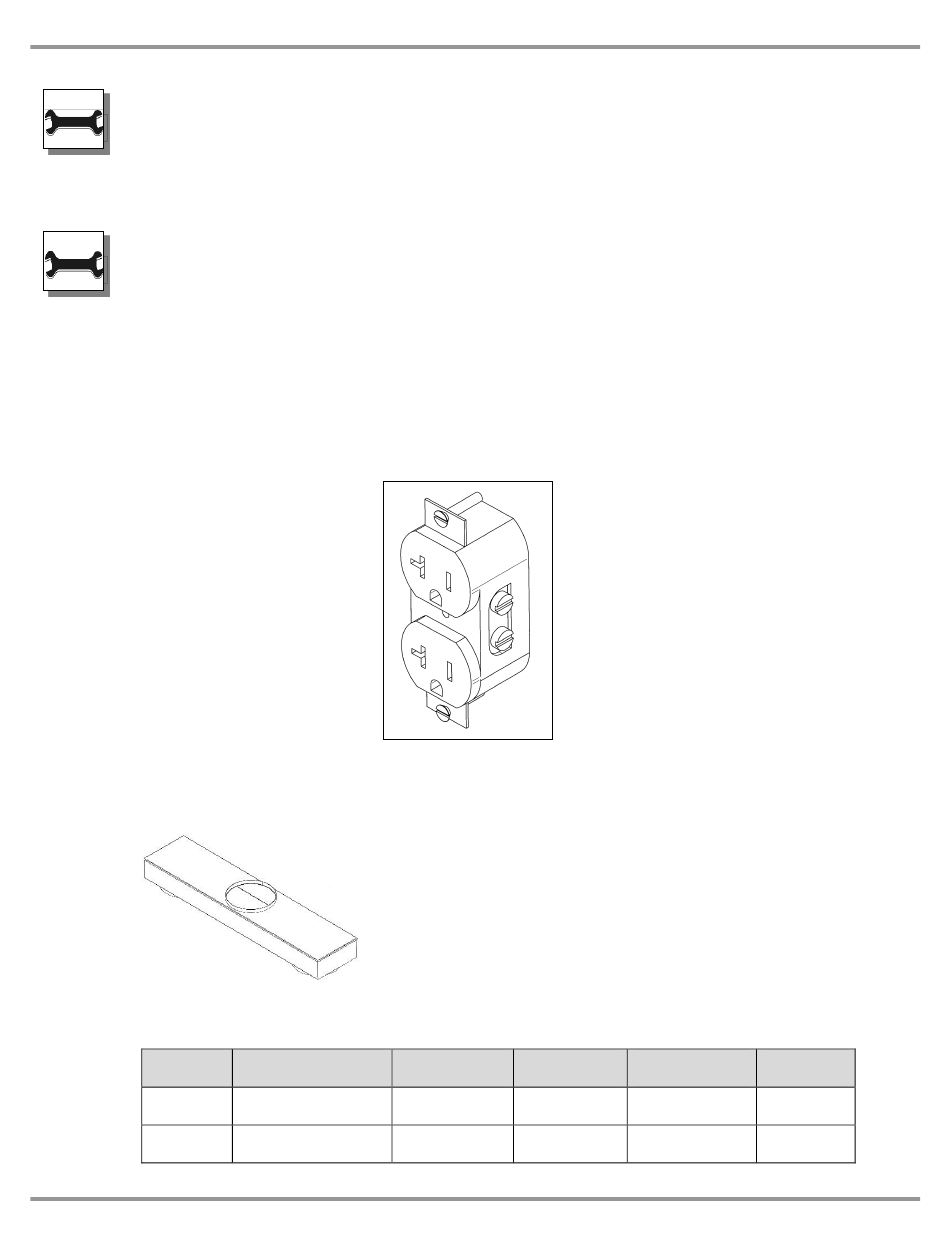

Sash Stop Kit – Field Installation P/N 9410300
The sash stop kit restricts how far a vertical-rising sash may be opened. This
small plastic device may be easily field installed on the fixture corner post of any
fume hood.

Installing an Electrical Duplex Outlet

Your Protector Fume Hood can be ordered with duplex outlets, however, if you
ordered a model without an electrical duplex outlet you can have one installed in
the field by a qualified electrician. Contact Labconco Customer Service for
ordering information. (Not acceptable on explosion-proof hoods).
Votre Protège-capot de fumées peut être commandé avec prises doubles, cependant,
si vous avez commandé un modèle sans prise de courant duplex, vous pouvez en
faire installer sur le terrain par un électricien qualifié. Contactez le service clientèle
Labconco pour commander. (Non acceptable sur antidéflagrants hottes).
8' Dual Exhaust Adapters – Field Installation
For other special sizes, consult Labconco. The performance specifications for the
8' Dual Exhaust Adapters are listed below.
Catalog
No.
9595108
9595109
Product Service 1-800-522-7658
The Type 304 stainless steel single exhaust adapter
allows 8' Protector Hoods to be exhausted from two
fume hood exhaust collars spaced 48" apart to a
single 12" (12.81 ID) exhaust, centered on the hood.
The single centered exhaust outlet is located 9.3"
from the rear of the hood for all 8' Protector Hoods.
Description Dimensions
(w x d x h)
Dual Exhaust 12 x 12 x 63" x 14.2" x
12 x 6 High Flush
Dual Exhaust 12 x 12 x 63" x 14.2" x
12 x 9 High
Chapter 7: Modifying Your Protector XL
Figure 7-6
Height Above
Hood (inches)
0
8.5"
3
11.5"
Equivalent Shipping
Resistance (feet) Wt. (lbs.)
150 60
120 70
