Chapter 3: Getting Started
Upper Cabinet Installation of the
Protector XL Floor-Mounted Hood
Remove the upper cabinet assembly side panels and front panels prior to cabinet
placement. Then place the upper cabinet assembly on top of the lower base
assembly, being careful to clear the lower base assembly during placement. To
prevent spillage from seeping between the two liner assemblies, run a bead of
white RTV sealant between the sections once they have been properly aligned.
Mount the lower base to the upper cabinet using the ¼-20 hex head screws,
lockwashers, and nuts included in your hood package. See Figure 3-2.
Front Vertical
Upper Sash with
Outer Weights
Rear Vertical
Lower Sash with
inner wide weight
14
Figure 3-1
Product Service 1-800-522-7658
Original instructions

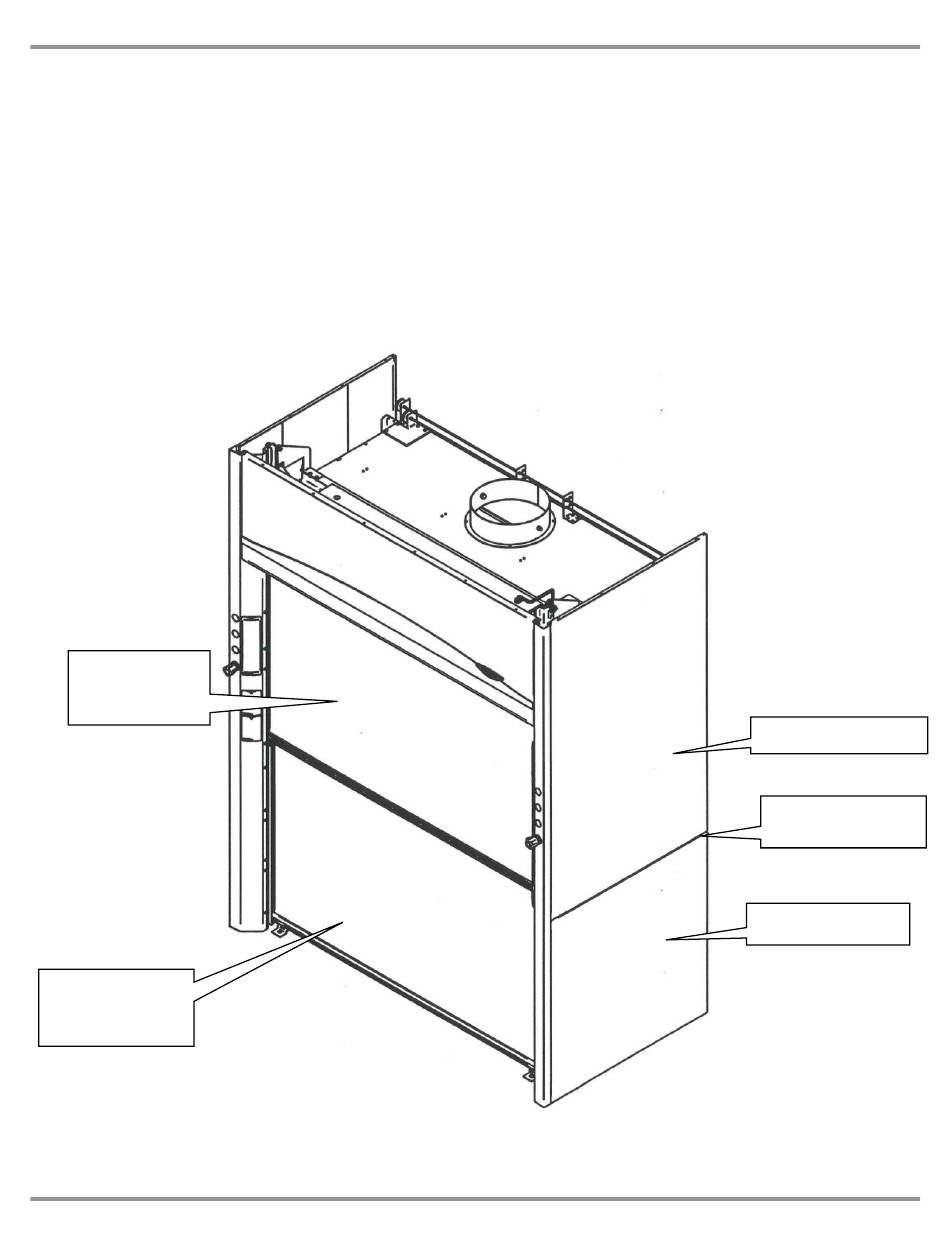

Upper Cabinet Assy.
Apply bead of RTV
at inner joint.
Lower Base Assy.
