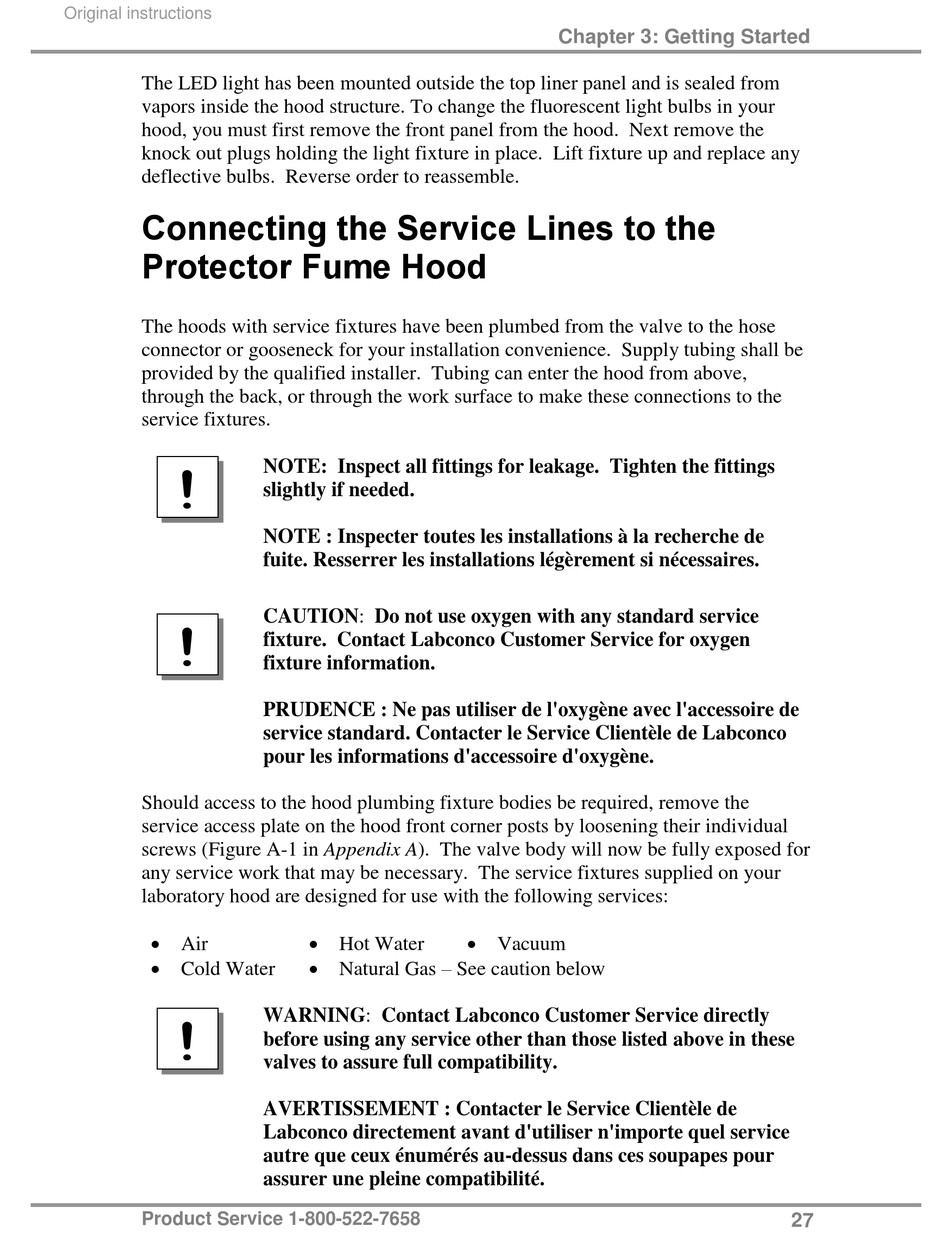

The LED light has been mounted outside the top liner panel and is sealed from
vapors inside the hood structure. To change the fluorescent light bulbs in your
hood, you must first remove the front panel from the hood. Next remove the
knock out plugs holding the light fixture in place. Lift fixture up and replace any
deflective bulbs. Reverse order to reassemble.
Connecting the Service Lines to the
Protector Fume Hood
The hoods with service fixtures have been plumbed from the valve to the hose
connector or gooseneck for your installation convenience. Supply tubing shall be
provided by the qualified installer. Tubing can enter the hood from above,
through the back, or through the work surface to make these connections to the
service fixtures.
!
!
Should access to the hood plumbing fixture bodies be required, remove the
service access plate on the hood front corner posts by loosening their individual
screws (Figure A-1 in Appendix A). The valve body will now be fully exposed for
any service work that may be necessary. The service fixtures supplied on your
laboratory hood are designed for use with the following services:
 Air
 Cold Water
!
Product Service 1-800-522-7658
NOTE: Inspect all fittings for leakage. Tighten the fittings
slightly if needed.
NOTE : Inspecter toutes les installations à la recherche de
fuite. Resserrer les installations légèrement si nécessaires.
CAUTION: Do not use oxygen with any standard service
fixture. Contact Labconco Customer Service for oxygen
fixture information.
PRUDENCE : Ne pas utiliser de l'oxygène avec l'accessoire de
service standard. Contacter le Service Clientèle de Labconco
pour les informations d'accessoire d'oxygène.
 Hot Water
 Natural Gas – See caution below
WARNING: Contact Labconco Customer Service directly
before using any service other than those listed above in these
valves to assure full compatibility.
AVERTISSEMENT : Contacter le Service Clientèle de
Labconco directement avant d'utiliser n'importe quel service
autre que ceux énumérés au-dessus dans ces soupapes pour
assurer une pleine compatibilité.
