End Support for
Header Sash Track
Sliding Sash Door
Corner Post Installation for the Floor-
Mounted Hoods
Both left and right corner posts have been shipped uninstalled. The one-piece
corner posts are to be installed once the upper and lower cabinet assemblies have
been properly positioned.
The edges on the corner posts fit directly onto the side frames. The front inner
edge of both corner posts are held in place by stainless steel machine screws. The
outer back edge of both corner posts are held in place with steel self-drilling
screws. The screws are included in the hood manual packet. See Figure 3-2 and
Figure 3-3.
Baffle Installation for the Floor-Mounted
Hoods
The baffles are critical to the proper airflow and performance of the hood. Be
sure the baffles are resting in the proper baffle mount supports. See Figure 3-7 for
various sizes of baffles and their orientation.
Product Service 1-800-522-7658
Chapter 3: Getting Started

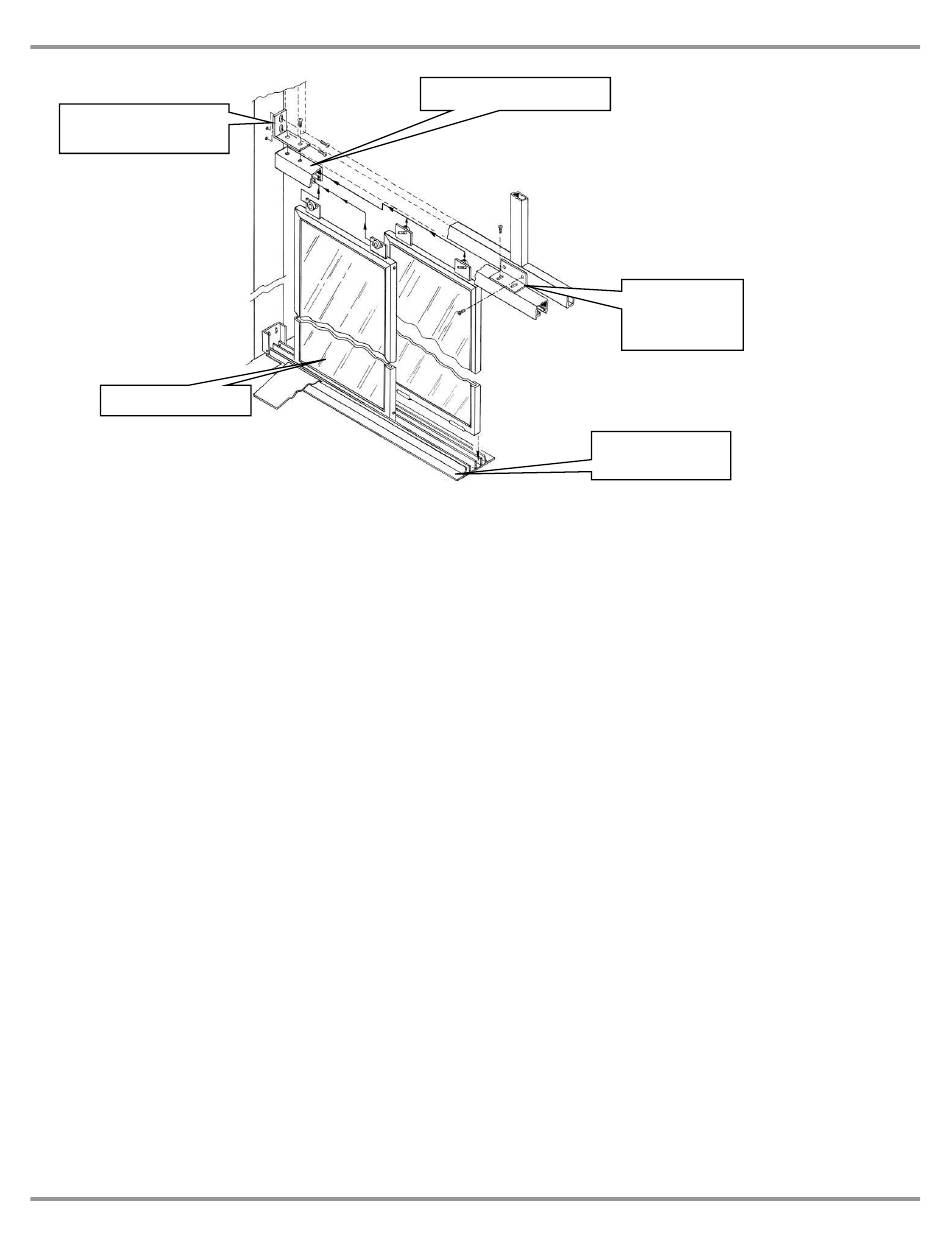

Upper Header Sash Track
Lower Sash Track
Threshold
Figure 3-6
Center Support
for Header
Sash Track
