TPM 165/22
Version 2022-12-20

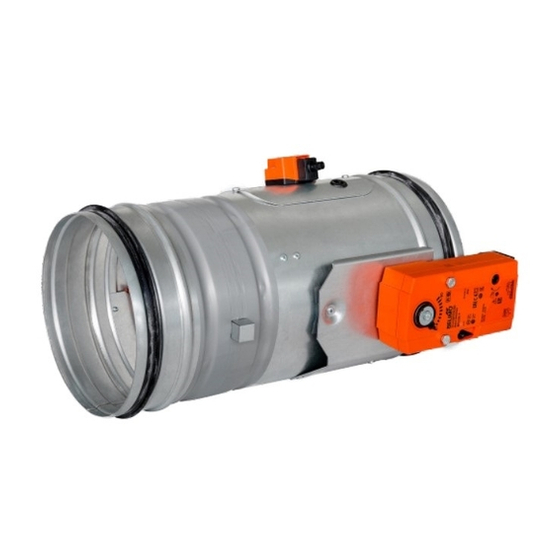

FDMR
Fire damper
Technical Documentation
Installation, Commissioning, Operation, Maintenance and Service Manual
www.mandik.co.uk
Manufacturer
MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz
Authorized representative
MANDIK UK Ltd • 130 Aztec West • Bristol BS32 4UB • United Kingdom • Tel.: +44 117 4526376 • E-Mail: help@mandik.co.uk

Advertisement

Table of Contents
loading

Related Manuals for Mandik FDMR

Summary of Contents for Mandik FDMR

  • Page 1 Manufacturer MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz Authorized representative MANDIK UK Ltd • 130 Aztec West • Bristol BS32 4UB • United Kingdom • Tel.: +44 117 4526376 • E-Mail: help@mandik.co.uk...

  • Page 2: Table Of Contents

    TPM 165/22 These technical specifications state a row of manufactured sizes and models of fire dampers FDMR. It is valid for production, designing, ordering, delivery, maintenance and operation. CONTENT I. GENERAL.....................................3 Description....................................3 Design.....................................4 Design with mechanical control............................4 Design with actuating mechanism............................6 Communication and control module MDCM........................11...

  • Page 3: General

    Certificate of constancy of performance UKCA No. TBD* & UKNI No. TBD* ■ Certificate of constancy of performance CE No. 1391-CPR-2021/0145 ■ ■ Declaration of Perfomance UKCA & UKNI No. PM/FDMR/02/22/1 Declaration of Perfomance CE No. PM/FDMR/01/22/1 ■ Hygienic assessment of fire dampers - Report No. 1.6/pos/19/19c ■...

  • Page 4: Design

    "CLOSED" and "OPEN". Limit switch detail → see page 5 ■ Limit switch Limit switch “OPEN” “CLOSED” Design .80 Page 4 FDMR - Fire damper Version 2022-12-20...
  • Page 5 Class of protection IP 67 CUT-OFF if the arm is moving … connect wire 1+2 ■ Working temperature -25°C … +120°C SWITCH-ON if the arm is moving … connect wire 1+4 ■ Version 2022-12-20 FDMR - Fire damper Page 5...

  • Page 6: Design With Actuating Mechanism

    The time of displacing the blade from the position "OPEN" ■ to the position "CLOSED" takes maximum 20 sec. Actuating mechanism Thermoelectrical starting mechanism BAT Design .40 and .50 Page 6 FDMR - Fire damper Version 2022-12-20...
  • Page 7 1 m, 2 x 0,75 mm² (BFL 24-T-ST) with 3-pin plug-in connectors - auxiliary switch cable 1 m, 6 x 0,75 mm² (BFL 24-T-ST) with 6-pin plug-in connectors duct outside temperature +72°C Thermal trips duct inside temperature +72°C Version 2022-12-20 FDMR - Fire damper Page 7...
  • Page 8 1 m, 2 x 0,75 mm² (BFN 24-T-ST) with 3-pin plug-in connectors - auxiliary switch cable 1 m, 6 x 0,75 mm² (BFN 24-T-ST) with 6-pin plug-in connectors duct outside temperature +72°C Thermal trips duct inside temperature +72°C Page 8 FDMR - Fire damper Version 2022-12-20...
  • Page 9 1 m, 2 x 0,75 mm² - auxiliary switch cable 1 m, 6 x 0,75 mm² (BF 24-T-ST) with plug-in connectors Tf1: duct outside temperature Duct +72°C Thermal trips Tf2/Tf3: duct intside temperature Duct +72°C Version 2022-12-20 FDMR - Fire damper Page 9...
  • Page 10 Ambient humidity Max. 95% RH, non-condensing Connection supply Cable 1 m, 2 x 0.5 mm², Betaflam cable heatresistant up to 145°C Duct inside temperature 72°C Response temperature thermal fuse Duct outside temperature 72°C Page 10 FDMR - Fire damper Version 2022-12-20...

  • Page 11: Communication And Control Module Mdcm

    FCC. This accessory is only required with MANDIK control systems. ■ Each MDCM has a 230v local spur to power the damper actuator. ■...

  • Page 12: Dimensions

    TPM 165/22 Dimensions SPIRO design with mechanical control Damper casing Mechanics Damper blade Inspection hole covering Sensor sticker Hole for camera Page 12 FDMR - Fire damper Version 2022-12-20...
  • Page 13 TPM 165/22 FLANGE design with mechanical control Ød Ød1 Ød2 number of holes [mm] [mm] [mm] in the flange Damper casing Mechanics Damper blade Inspection hole covering Sensor sticker Hole for camera Version 2022-12-20 FDMR - Fire damper Page 13...
  • Page 14 X=78 mm (BF) * Damper casing Actuating mechanism Damper blade Inspection hole covering BAT thermoelectrical starting mechanism Hole for camera * Assignment of actuating mechanisms to individual sizes → see page 17 Page 14 FDMR - Fire damper Version 2022-12-20...
  • Page 15 X=78 mm (BF) * Damper casing Actuating mechanism Damper blade Inspection hole covering BAT thermoelectrical starting mechanism Hole for camera * Assignment of actuating mechanisms to individual sizes → see page 17 Version 2022-12-20 FDMR - Fire damper Page 15...
  • Page 16 Values "a" and "c" has to be respected when projecting related air-conditioning ducts. Fire damper with installation brackets Weight of installation brackets is 0,04 kg. ■ Number of brackets for individual sizes → see page 17 ■ Page 16 FDMR - Fire damper Version 2022-12-20...

  • Page 17: Technical Parameters

    16,7 0,2463 15,5 17,7 0,2735 29,2 0,3446 32,4 34,6 0,4448 * Weight of installation brackets is 0,04 kg. ** Only spiro design SL or SK, can be ordered → see page 37 Version 2022-12-20 FDMR - Fire damper Page 17...

  • Page 18: Placement And Assembly

    No other services should pass through the dampers ■ building work opening. For lightweight walls always consult the wall manufac- ■ turer specific guidelines for penetrations sizes and dis- tances. Page 18 FDMR - Fire damper Version 2022-12-20...
  • Page 19 The damper must be installed so that the entire damper blade - in the closed position - is located inside the fire separating structure (wall) and at the same time the control mechanism and inspection openings are freely accessible. Version 2022-12-20 FDMR - Fire damper Page 19...

  • Page 20: Statement Of Installations

    EI 120 (v i↔o) S Mortar or gypsum In gypsum wall construction EI 90 (v i↔o) S Ablative Coated Batt In solid ceiling construction Mortar or gypsum EI 120 (h i↔o) S Page 20 FDMR - Fire damper Version 2022-12-20...

  • Page 21: Installation In Solid Wall Construction

    British gypsum thistle bond 60 (or equivalent can by used) minimum density 670 kg/m³ Damper bracket → see page 27 Circular suspension with threaded rod → see pages 26 to 28 Duct Version 2022-12-20 FDMR - Fire damper Page 21...
  • Page 22 Fire resistant mastic - fill the gap on both sides of the fire separation construction and around the perimeter of penetration and damper body. (e.g. HILTI CFS-S ACR) Damper bracket → see page 27 Circular suspension with threaded rod → see pages 26 to 28 Page 22 FDMR - Fire damper Version 2022-12-20...

  • Page 23: Installation In Gypsum Wall Construction

    British gypsum thistle bond 60 (or equivalent can by used) minimum density 670 kg/m³ Damper bracket → see page 27 Circular suspension with threaded rod → see pages 26 to 28 Duct Version 2022-12-20 FDMR - Fire damper Page 23...
  • Page 24 Fire resistant mastic - fill the gap on both sides of the fire separation construction and around the perimeter of penetration and damper body. (e.g. HILTI CFS-S ACR) Damper bracket → see page 27 Circular suspension with threaded rod → see pages 26 to 28 Page 24 FDMR - Fire damper Version 2022-12-20...

  • Page 25: Installation In Solid Ceiling Construction

    British gypsum thistle bond 60 (or equivalent can by used) minimum density 670 kg/m³ Damper bracket → see page 27 Circular suspension with threaded rod → see pages 26 to 28 Duct Version 2022-12-20 FDMR - Fire damper Page 25...

  • Page 26: Suspension Systems

    Washer for M8 - M20 Coupling Nut M8 - M20 Anchor Hinge plate - min. thickness 10 mm Concrete screw tested for fire resistance R30-R90, max. Tension up to 0.75 KN (length 35 mm) Page 26 FDMR - Fire damper Version 2022-12-20...
  • Page 27 Screw with hexagon head M8x45 mm Dimension elements of the suspension system ■ acc. to the weight of the damper, → see page 26 Connecting air duct 10 Gypsum grid from "C" profile Version 2022-12-20 FDMR - Fire damper Page 27...

  • Page 28: Duct Connection

    TPM 165/22 Duct connection FDMR Connecting air duct Extension piece (if required) Damping pad or breakaway connection as DW 144 Page 28 FDMR - Fire damper Version 2022-12-20...

  • Page 29: Technical Data

    Determination of pressure loss by using diagram ρ = 1,2 kg/m Coefficient of local pressure loss ξ 2,736 2,099 1,781 1,527 1,272 0,929 0,636 0,892 0,747 0,627 0,576 ξ 0,531 0,471 0,455 0,393 0,344 0,307 0,273 0,258 0,243 0,111 0,099 Version 2022-12-20 FDMR - Fire damper Page 29...

  • Page 30: Noise Data

    -16,7 -24,1 -33,2 -5,2 -3,9 -4,3 -6,4 -10,1 -15,6 -22,7 -31,5 -5,5 -4,1 -5,9 -9,4 -14,6 -21,5 -5,9 -4,1 -5,6 -8,9 -13,8 -20,4 -28,8 -6,2 -4,3 -3,9 -5,3 -8,4 -13,1 -19,5 -27,6 Page 30 FDMR - Fire damper Version 2022-12-20...

  • Page 31: Material, Finishing

    Any other requirements for the design shall be considered atypical and shall be addressed on an individual basis. IV. INSPECTION, TESTING The appliance is constructed and preset by the manufacturer, its operation is dependent on proper installation and ■ adjustment. Version 2022-12-20 FDMR - Fire damper Page 31...

  • Page 32: Transportation And Storage

    (manually or by stopped, in every position, the actuator will be locked. applying power supply). Unlocking is possible even manually as per instructions on the actuator, or by the activation of the supply voltage. Page 32 FDMR - Fire damper Version 2022-12-20...
  • Page 33 Use struts or wedges to prevent collapse of casing and its ovality, above all in DN over 400mm! WRONG! Brace with wooden blocks Brace reinforcement wedges Version 2022-12-20 FDMR - Fire damper Page 33...
  • Page 34 Mounting plate Actuating mechanism Temperature sensor Mounting plate cover Seal plates Mechanics Fusible link Sensor sticker 10 Hole for temperature sensor / Sensor sticker 11 Inspection hole covering 12 Hole for camera Page 34 FDMR - Fire damper Version 2022-12-20...

  • Page 35: Entry Into Service And Revisions

    M6. Removing the thermal fuse from the fuse holder of initiation device, checks its correct functionality. ■ The mechanism is identified as M1 to M5, depending on the closing spring strength. ■ Version 2022-12-20 FDMR - Fire damper Page 35...

  • Page 36: Spare Parts

    If fuses Tf2/Tf3 are initiated (duct inside temperature) than it's possible to change only part ZBAT72 → see page 10 ■ Spare parts Spare parts are supplied only on basis of an order. ■ Page 36 FDMR - Fire damper Version 2022-12-20...

  • Page 37: Product Data

    SL - spiro damper with rubber sealing SK - spiro damper with rubber sealing and installation brackets EXAMPLE: FDMR SL 200 - .40 - SL-spiro damper with rubber sealing, 200-damper size, .40-damper design Dampers design Additional digit Manual and thermal Manual and thermal with a terminal switch („CLOSED“)
  • Page 38 Manufacturer MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz Authorized representative MANDIK UK Ltd • 130 Aztec West • Bristol BS32 4UB • United Kingdom • Tel.: +44 117 4526376 • E-Mail: help@mandik.co.uk...
