- Page 2 These technical specifications state a row of manufactured sizes and models of fire dampers (further only dampers) FDMS / FDSM-VAV. It is valid for production, designing, ordering, delivery, assembly and operation. Description................................ Damper design FDMS............................Damper design FDMS-VAV..........................Dimensions and weights of FDMS........................
- Page 3 Fire dampers are shutters in ventilation duct systems that preventing spreading the fire and combustion gases from one fire compartment to the other one by shutting of closing the air duct in the positions of fire separating constructions. In the case of FDMS the fire dampers blade closes automatically air duct using a shutting spring or an return spring of its actuating mechanism in case of fire.
- Page 4 Design with mechanical control with a thermal protective fuse which actuates the shutting device within 120 seconds, when the nominal temperature reaches 72°C. Automatic initiation of the shutting device is not activated if the temperature does not exceed 70°C. Design with mechanical control can be complemented with a limit switch signaling the damper´s blade position "CLOSED". Limit switch is possible connect to the building management system or superordinate control system by wires, which are mounted to the switch.

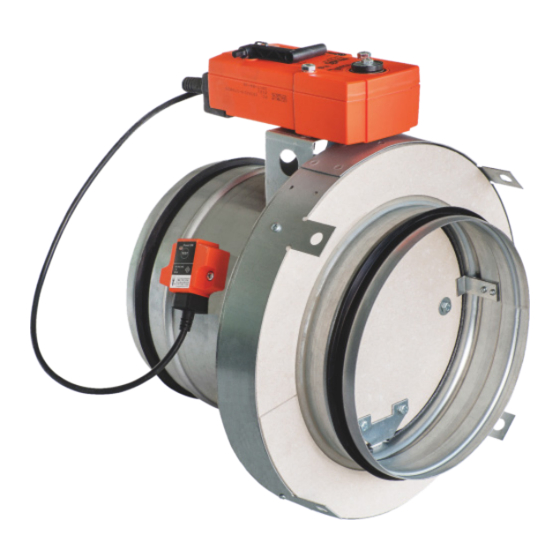

- Page 5 The damper can be equipped with electric actuating mechanism. There are several actuators: BELIMO BFL, BFN 230-T (version .40) or BFL, BFN 24-T (version .50). After connection to the power supply AC/DC 24V or AC230V, the actuating mechanism displaces the damper blade into operation position "OPEN".
- Page 6 AC 24 V 50/60 Hz AC 230 V 50/60 Hz DC 24 V - motoring 3,5/5 W 2,5/4 W - holding 1,1/2,1 W 0,8/1,4 W 6,5/10 VA (Imax 4 A @ 5 ms) 4/6 VA (Imax 8,3 A @ 5 ms) IP 54 - motor <60 s...
- Page 7 Bridge has been installed by the manufacturer. If needed, it can be removed ad replaced with a thermoelectric starting mechanism. If terminals 1 and 2 are not interconnected, safety function is initiated. Bridge can be used only for starting and without BKS24… ! Two conductor wiring to BKS24 BKS24-9A communication and control device is used for group control and checks of 1 to 9 fire dampers with the actuator BFL (BFN)24-T-ST in connection with the supply and communication device BKN230-24.
- Page 8 AC 24 V 50/60Hz 3,5 W (operating position) 5,5 VA III (safe small voltage) IP 30 0 … + 50 °C Terminals for conductor 2 x 1,5 mm...
- Page 9 The damper is equipped with electric actuating mechanism. There are several actuators depending on the damper size: GRUNER 340CTA-024D-XX-S2-V/8F12/ST06/BP8. To ensure the VAV function there is an Gruner universal actuator controller GUAC-DM3 for air flow control and GUAC-PM3 for pressure control. After connection to the power supply AC/DC 24V, the actuating mechanism displaces the damper blade into operation position given by the required air volume flow.
- Page 10 Connect through separating transformer! ● Parallel connection of other servo drives is possible. Respect power input data. ● Combination of mains voltage and use of signals from limit switches by very low ● voltage is not allowed. TA 72 TF1 TF2 test WH WH WH WH WH WH BU1 = blue...
- Page 11 24V AC/DC 50/60 Hz - motoring 6,5 W - holding 2,0 W 7,5 VA IP 54 - motor < 100 s - spring return < 20 s - normal duty -30 °C … +50 °C - safety duty > +75°C - non-operating temperature -30 °C …...
- Page 12 Actuating mechanism GUAC-DM3 flow direction p [ Pa ] - controller pressure loss ∆ Actuating mechanism Controller GUAC-PM3 flow direction p [ Pa ] - Static pressure difference between ∆ duct and surrounding environment Controller GUAC-PM3 Actuating mechanism air outlet Room p [ Pa ] - Static pressure difference between ∆...
- Page 13 = for the actuator - BFL 86mm, BFN 110mm = the height of the actuator - BFL 48mm, BFN 52mm – – – – – – – – – – 24,5 54,5 112,5 – – 49,5 79,5 137,5 – – 12,5 74,5 104,5...
- Page 14 2 x D 2 x D...
- Page 15 – – – – – – – – – – 24,5 54,5 112,5 – – 49,5 79,5 137,5 – – 12,5 74,5 104,5 162,5 – – 104,5 134,5 192,5 – – 37,5 139,5 169,5 227,5 – – 52,5 – – –...
- Page 16 The dimensions of installation opening for the connected air duct depends on the type of sealant- see the table. Mat: thick 13mm, Paper: thick: 6mm D+28, D+14 from outside Firestop Acrylic sealant CFS-S ACR or similar Mat: thick 9mm D+20 from outside Firestop Acrylic sealant CFS-S ACR or similar Firestop Acrylic sealant CFS-S ACR or similar...
- Page 17 Threaded rod and anchor to the wall (or ceiling) (e.g. threaded rod M8 and anchor type according pipe weight) Fire protection mastic min. thickness 1mm (e.g. PROMASTOP-P or K) Fire damper FDMS Anchor for damper collar (e.g. FISCHER - type ZYKON FZA M8x30) Fixing part of the pipe between wall and pipe (only recommended) Hanging ring (e.g.
- Page 18 Fire classification: ≥ 96 ≥ 47 ≥ 47 ≥ 96 ≥ 96...
- Page 19 Threaded rod and anchor to the wall (or ceiling) (e.g. threaded rod M8 and anchor type according pipe weight) Fire protection mastic min. thickness 1mm (e.g. PROMASTOP-P or K) Fire damper FDMS Pipe insulation with min. fire resistance EI60 (e.g. ISOVER Ulimate protect Wired MAT 4.0 ALU1, PAROC hvac Fire Mat BlackCoat)* Fixing part of the pipe between wall and pipe (optional) Hanging ring (e.g.
- Page 20 Threaded rod and anchor to the wall (or ceiling) (e.g. threaded rod M8 and anchor type according pipe weight) Fire protection mastic min. thickness 1mm (e.g. PROMASTOP-P or K) Fire damper FDMS Anchor for damper collar (threaded rod and nuts M8 or e.g. anchor FISCHER - type KD8) Fixing part of the pipe between wall and pipe (only recommended) Hanging ring (e.g.
- Page 21 Fire classification: ≥ 96 ≥ 47 ≥ 47 ≥ 96 ≥ 96...
- Page 22 Threaded rod and anchor to the wall (or ceiling) (e.g. threaded rod M8 and anchor type according pipe weight) Fire protection mastic min. thickness 1mm (e.g. PROMASTOP-P or K) Fire damper FDMS Pipe insulation with min. fire resistance EI60 (e.g. ISOVER Ulimate protect Wired MAT 4.0 ALU1, PAROC hvac Fire Mat BlackCoat)* Fixing part of the pipe between wall and pipe (optional) Hanging ring (e.g.
- Page 23 Threaded rod and anchor to the wall (or ceiling) (e.g. threaded rod M8 and anchor type according pipe weight) Fire protection mastic min. thickness 1mm (e.g. PROMASTOP-P or K) Fire damper FDMS Anchor for damper collar (e.g. FISCHER - type ZYKON FZA M8x30) Fixing part of the pipe between wall and pipe (optional) Hanging ring (e.g.
- Page 24 Fire classification: ≥ 96 ≥ 47 ≥ 47 ≥ 96 ≥ 96...
- Page 25 Threaded rod and anchor to the wall (or ceiling) (e.g. threaded rod M8 and anchor type according pipe weight) Fire protection mastic min. thickness 1mm (e.g. PROMASTOP-P or K) Fire damper FDMS Pipe insulation with min. fire resistance EI60 (e.g. ISOVER Ulimate protect Wired MAT 4.0 ALU1, PAROC hvac Fire Mat BlackCoat)** Fixing part of the pipe between wall and pipe (optional) Hanging ring (e.g.
- Page 26 Threaded rod and anchor to the wall (or ceiling) (e.g. threaded rod M8 and anchor type according pipe weight) Fire protection mastic min. thickness 1mm (e.g. PROMASTOP-P or K) Fire damper FDMS Anchor for damper collar (threaded rod and nuts M8) Fixing part of the pipe between wall and pipe (only recommended) Hanging ring (e.g.
- Page 27 Threaded rod and anchor to the wall (or ceiling) (e.g. threaded rod M8 and anchor type according pipe weight) Fire protection mastic min. thickness 1mm (e.g. PROMASTOP-P or K) Fire damper FDMS Pipe insulation with min. fire resistance EI60 (e.g. ISOVER Ulimate protect Wired MAT 4.0 ALU1, PAROC hvac Fire Mat BlackCoat)* Fixing part of the pipe between wall and pipe (optional) Hanging ring (e.g.
- Page 28 The insulation of the pipe must cover the damper collar from back side. Insulation edge 100,0 10,0 14000 14000 1000 10000 Air flow (m Air flow (m...
- Page 29 100,0 10,0 14000 14000 1000 10000 Air flow (m Air flow (m ≈ ≈ 1000 1000 1250 1250 1550 1550 2000 2000 2500 2500 3200 3200 5000 5000 1120 7900 7900...
- Page 30 Through connecting the power supply to BU+BN (1+2) and a The selector allows the changing of values. The position of the reference signal Y to BK (3) in the range of (0)2…10 VDC, arrow shows the value set. The changes are displayed as soon the connected actuator regulates to the set point.
- Page 31 - acoustic power level corrected with filter A (dB(A)) - frequency in octave range (Hz) - air flow velocity (m/s) < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 <...
- Page 32 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 <...
- Page 33 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 <...
- Page 34 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 < 2 <...
- Page 35 Damper bodies are supplied in the design made of galvanized steel plate without any other surface finishing. The round duct joint is made of galvanized steel and boards from mineral fibers. Damper blades are made of fire resistant asbestos free boards made of mineral fibers.
- Page 36 Dobříšská 550, 267 24 Hostomice, Czech Republic DIMENSION: ACTUATING SYSTEM: WEIGHT (kg): YEAR/SER.NO.: MANUAL FIRE PROTEC. CLASS: TPM 125/17 EN 15650:2010 Cert. No.: 1391-CPR-2020/0131, DoP: PM/FDMS(FDMS-VAV)/01/20/2 1391 (placed on the casing of fire damper) (placed on the casing of fire damper)
- Page 37 - damper without rubber sealing - damper with rubber sealing (EPDM gasket) on both ends Thermal with mechanical control Thermal with mechanical control and limit switch (“CLOSED”) Thermal with mechanical control and two limit switches (“CLOSED” and “OPEN”) With actuating mechanism BFL(BFN)230-T (AC 230 V) With actuating mechanism BFL(BFN)24-T (AC/DC 24 V) With actuating mechanism BFL(BFN)230-T, sensor BAT is not mounted on the damper´s body, only connected with actuator by cable...
- Page 38 Ø 80 Ø 100 - 125...
- Page 39 MANDÍK, a.s. Dobříšská 550 26724 Hostomice Czech Republic Tel.: +420 311 706 706 E-Mail: mandik@mandik.cz www.mandik.com The producer reserves the right for innovations of the product. For actual product information see www.mandik.com...
