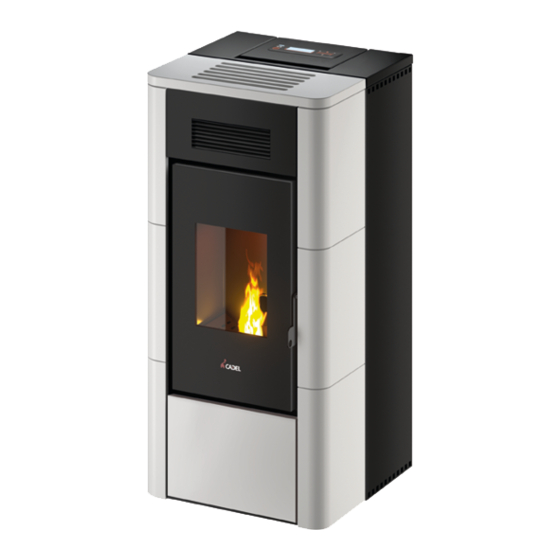

Cadel RIVER IDROTECH 18 Installer Manual

Pellet thermostove
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER MANUAL
PELLET THERMOSTOVE
EN
new
Original Instructions | ©2022 CADEL srl | All rights reserved - Tutti i diritti riservati
RIVER IDROTECH 18 - RIVER IDROTECH 24
RIVER IDROTECH 24H
O
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIVER IDROTECH 18 and is the answer not in the manual?

Questions and answers

Related Manuals for Cadel RIVER IDROTECH 18

Summary of Contents for Cadel RIVER IDROTECH 18

  • Page 1 INSTALLER MANUAL PELLET THERMOSTOVE Original Instructions | ©2022 CADEL srl | All rights reserved - Tutti i diritti riservati RIVER IDROTECH 18 - RIVER IDROTECH 24 RIVER IDROTECH 24H...

  • Page 2: Table Of Contents

    7.6 FILLING THE SYSTEM ..........18 7.7 WATER CHARACTERISTICS ........19 7.8 SYSTEM CONFIGURATION ........19 7.9 CONFIGURATION 1..........19 7.9.1 SYSTEM WITH: DIRECT PELLET STOVE AND ROOM PROBE OR EXTERNAL THERMOSTAT** (OPTIONAL) ...19 7.10 CONFIGURATION 2..........21 RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 3: Manual Simbology

    The packaging materials are neither toxic nor harmful. To take the stove off the pallet, remove the two “U” screws and slide the “S” plate out from the stove foot. There are four “S” brackets (see below). RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 4 Forcing the stove smoke exhaust or using it improperly to lift or position the stove will irreversibly compromise its function. Turning the feet clockwise lowers the stove. Turning the feet anticlockwise raises the stove (see below). Fig. 4 - Foot adjustment RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 5: Stove Handling

    The Manufacturer declines all liability for malfunctions caused by a badly sized and non-compliant smoke expulsion system. CHIMNEY COMPONENTS Fig. 5 - Chimney components LEGEND Fig. 5 Chimney pot Fume outlet Chimney flue Termal insulation External wall Chimney union Fume pipe Heat generator Inspection door T-union with inspection plug RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 6: Smoke Duct (Smoke Fitting)

    It is forbidden to use the direct drain on the wall or towards indoor spaces and any other form of drain not provided for by the regulation in force in the country of installation. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 7: Chimney Pot

    (**) unless there are specific national derogations (clearly specified in the corresponding instruction manual in English) which under appropriate conditions allow it; in this case, strictly follow the product/installation requirements of the relative regulations/technical specifications/legislation in force in that country. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 8: Maintenance

    It is possible to duct the air required for combustion to the outside by connecting the external air inlet directly with the combustion air inlet which is usually found on the back of the appliance. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 9: Combustible Air Inlet For Sealed-Chamber

    Fig. 10|Fig. 11 Room to ventilate External air inlet Shield grid Curve inlet to turn downwards COMBUSTIBLE AIR INLET FOR SEALED-CHAMBER INSTALLATION How to connect to the stove in the sealed chamber with concentric system: RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 10: Examples Of Installation (Diameters And Lengths To Be Sized)

    • Connect the air intake pipe to the combustion air pipe of the stove and tighten everything with a clamp (see [Fig. 12). EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) Fig. 13 - Chimney flue RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 11: Installation

    NBN B 61-002 (BE) - Real Decreto 1027/2007 (ES) - Paesi Bassi (NL) Bouwbesluit - Danmark (DK) BEK n° 541 del 27/04/2020. In particular, it is recommended to strictly observe the safety distances from combustible materials to avoid se- rious harm to people and to the integrity of the home. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 12: Minimum Distances

    (lower distance) 0 mm dC (upper distance) 750 mm dP (front radiation) 1000 mm dF (floor radiation) 1000 mm dL (side radiation) 1000 mm FLOOR FRONT FLAMMABLE MATERIAL AREA SUBJECT TO RADIATION RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 13: Overall Dimensions

    (1*) The national reference standard for the installation of domestic appliances is UNI 10683 (IT) - DTU NF 24.1 (FR) - DIN 18896 (DE) - NBN B 61-002 (BE) - Real Decreto 1027/2007 (ES) Paesi Bassi (NL) Bouwbesluit - Danmark (DK) BEK n° 541 del 27/04/2020. OVERALL DIMENSIONS Fig. 15 - RIVER IDROTECH 18 - 24 - 24 H2O LEGEND Fig. 15 Exhaust fumes d.8 cm...

  • Page 14: Fitting The Metal Frame Of River- Idrotech

    ASSEMBLING THE TOP CLADDING AND BOTTOM DOOR To assemble the cladding, proceed as follows: Place the top panel on the stove (if maiolica). Attach the top in the specific slots (if in metal). RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 15: Fitting The Maiolica Frame Of River- Idrotech

    • Connect the supply cable first on the back of the stove (see Fig. 30 and Fig. 31) and then at a wall electric socket. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 16: Stove Calibration And Depression Measurement

    45 Pa - 190 °C 60 Pa - 220 °C 75 Pa - 250 °C 24H2O kW NB: for good combustion, the depression values must be between ± 5 Pa and the temperature values between ± 10°C. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 17: Plumbing Connection

    CONNECTION DIAGRAM RIVER - IDROTECH 18 - 24 (SENZA DHW) Fig. 34 - Connection diagram (senza DHW) LEGEND Fig. 34 3/4”M heating water delivery 3/4”M heating water return System filling System draining B=150 - C=260 RIVER-IDROTECH RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 18: Connection Diagram River - Idrotech 24 H

    Fig. 36 - Discharge valve LEGEND Fig. 36 3 bar CE PN10, TMAX 110°C safety valve ATTENTION: 110°C !! RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 19: Washing The System

    Fig. 38 - Manual bleed valve (located under the top) (Idro Prince 16-23-23 H2O, Aquos 16-23-23 H2O, Idron 16-22 Airtight, Hidrofire 22.8) SETTING VALUES Water temperature probe Flue gas temperature probe Air venting valve RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 20: Water Characteristics

    All activities relating to electrical connections in the electronic board must be carried out by authorised personnel. ** If the external thermostat is used, activate the “EXT THERMOSTAT” function on the control panel and con- nect it directly to the electronic board (see electrical system below). RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 21 Electronic board Stove Zone valve Expansion vessel Wiring diagram for connecting external thermostat and zone valve (in the case of several val- ves, connect in parallel) Wiring diagram for connecting the external thermostat RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 22: Configuration 3

    75°C SEASON WINTER (summer may be activated) OFF (with winter setting) AUTO ECO ON (with summer setting, cannot be deactivated) Parameters to set SETTING VALUES CONFIGURATION Hydraulic diagram Fig. 40 - Configuration 2 RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 23 30°C - 80°C DHW TEMP 75°C SEASON WINTER (summer may be activated) OFF (with winter setting) AUTO ECO ON (with summer setting, cannot be deactivated) Parameters to set SETTING VALUES CONFIGURATION Hydraulic diagram RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 24: Configuration 4

    7.11.1 System with: direct pellet stove and room probe or external thermostat** (optional) with external DHW production controlled by box probe (optional) All activities relating to electrical connections in the electronic board must be carried out by authorised personnel. RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 25 Adjustable setting SETTING VALUES CONFIGURATION Hydraulic diagram Fig. 42 - Configuration 3 LEGEND Fig. 42 Anti-condensation valve External thermostat Room probe Electronic board Stove Zone valve Storage tank Box NTC probe Expansion vessel RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 26: Configuration 5

    ON (it may not be disabled) BOILER WATER TEMP. 80 °C (to be adjusted according to the temperature SETTING chosen for the storage tank) Parameters to set SETTING VALUES CONFIGURATION Hydraulic diagram Fig. 43 - Configuration 4 RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 27 AUTO ECO ON (it may not be disabled) BOILER WATER TEMP. 80 °C (to be adjusted according to the temperature chosen for SETTING the storage tank) Parameters to set SETTING VALUES CONFIGURATION Hydraulic diagram RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 28: Configuration With Storage Tank And Auxiliary Wall-Mounted Boiler (Example)

    All activities relating to electrical connections in the electronic board must be carried out by authorised personnel. Parameters to set SETTING VALUES CONFIGURATION 1 - 2 - 3 - 4 - 5 AUXILIARY BOILER RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 29: Operating Mode

    “System configuration” of the room probe placed on the rear of the appliance (see drawing), by the external thermo- stat, by the boiler water temperature or by the NTC probes. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 30: Electrical Connections

    If maintenance must be performed on a component of the stove, the rear panel can be removed (if the distances from the walls allow it), otherwise, the maintenance can be performed by removing the side of the stove. To remove the rear panel, remove the seven rear screws “a” and pull panel “L” away. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 31: Special Maintenance

    If the glass gets very dirty and the stove is not installed in a sealed chamber, there is the possibility of opening an air slot by remo- ving the top profile of the glass. Fig. 51 - Undo the 3 screws Fig. 52 - Remove the profile RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 32: Fume Conduit Cleaning

    The fume exhaust system cleaning frequency depends on stove use and its installation. We recommend contacting an authorised service centre for the end-of-season cleaning and maintenance operations because the centre will perform an overall check of the parts, as well as the above-mentioned operations. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 33: Door Closing Functionality Periodic Check

    • Clean with a pipe cleaner and suction any ash accumulated inside • After cleaning, repeat the operation in reverse making sure the gasket is intact and efficient: if necessary, provide for the replacement with original spare parts. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 34: Cleaner Blocked

    Now make sure that rubber spacer compression is correct, using the template supplied with the kit: • Place the template on the cover (fig.B); the head of the screw must barely touch the upper reference. Otherwise, tighten or loosen the screw until it does. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 35: Fume Pipes Annual Cleaning

    In case of doubts regarding the use of the stove, please contact ALWAYS the Authorized Technician on order to avoi irreparable damages! RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 36 (for Clean the auger. example nails) The auger geared motor is out of order Replace the geared motor. Check if on the display there is an Have the stove checked. "ACTIVE ALARM" RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 37 It can be noxious to health to let the stove running without fume fan. Faulty fume tempe- Replace the fume probe. rature probe The exchanger fan continues to turn even though the stove has just cooled Faulty mother board Replace the mother board. RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 38 When this flashing message appears upon start-up, it means that display showing ce alert (it does not the preset operating hours have elapsed before maintenance. "SERVICE" block the system) Contact the service centre. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 39: Problem Solving (Thermostove)

    Check and clean the boiler. Temperature does not increase with the boiler working Insufficient boiler Make sure the boiler is appropriately proportional to the system power. requirements. Poor quality pellets Use quality pellets RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 40 INCREASE PRESSURE and CHECK FOR LEAKS SYSTEM Noise and gurgling Air in the system Vent the air and fill the system DOMESTIC HOT 3-WAY VALVE WATER DOES NOT CHECK 3-WAY VALVE BLOCKED COME OUT RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 41: Technical Datas

    TECHNICAL DATAS 10.1 ELECTRONIC BOARD WITHOUT DHW Fig. 67 - Electrical board without DHW RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 42: Electronic Board With Dhw

    10.2 ELECTRONIC BOARD WITH DHW Fig. 68 - Electrical board with DHW RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 43 Recirculation pump phase 3-way valve DHW phase 3-way valve heating phase Cleaner power supply Cleaner neutral Note: external boiler thermostat N.B. The wiring of the individual components is fitted with pre-wired connectors of different sizes. RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 44: Repair Information

    (vedi Fig. 70), of the auger, remove the hand rejector inside the hopper and then unscrew the inner bolt of the auger. (vedi Fig. 71).To assembly proceed at the contrary. Fig. 70 - Remove the screws Fig. 71 - Remove the screw RIVER IDROTECH 18 - 24 - 24H2O...

  • Page 45: Features

    ** Heatable volume depending on the power required per m (respectively, 40-35-30 Kcal/h per m *** Value recommended by the manufacturer (not binding) for optimal product performance Tested according to EN 14785 in compliance with the European Construction Product regulation (EU 305/2011) RIVER IDROTECH 18 - 24 - 24H2O...
  • Page 46 NOTE...
  • Page 47 NOTE...
  • Page 48 Rev. 00 - 2022 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy www.pegasoheating.com Tel. +39.0438.738669 Fax +39.0438.73343...

This manual is also suitable for:

River idrotech 24River idrotech 24h2 o
