INSTALLER MANUAL
Pellet Stove
EN
new
©2023 CADEL srl | All rights reserved - Tutti i diritti riservati

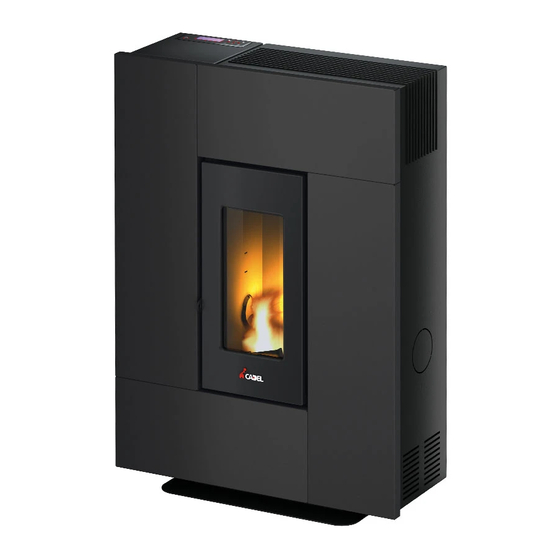

GRACE 7 - SPIRIT 5 - ROXY - ATRIUM 5 - TABLA - SOLO 5 - MADISON 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRACE 7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cadel GRACE 7

  • Page 1 INSTALLER MANUAL Pellet Stove ©2023 CADEL srl | All rights reserved - Tutti i diritti riservati GRACE 7 - SPIRIT 5 - ROXY - ATRIUM 5 - TABLA - SOLO 5 - MADISON 5...
  • Page 2: Table Of Contents

    7 SPECIAL MAINTENANCE ......24 SUMMARY 7.1 INTRODUCTION .............24 1 MANUAL SIMBOLOGY ........3 7.2 FUME CONDUIT CLEANING ........24 2 PACKAGING AND HANDLING ......3 7.3 FUME PASSAGES CLEANING ........24 2.1 PACKAGING .............3 7.4 HOW TO CLEAN THE ROOM FAN ......25 2.2 REMOVING THE STOVE FROM THE PALLET ....3 7.5 FUME PIPES ANNUAL CLEANING ......26 2.3 STOVE HANDLING............4 7.6 GASKET REPLACEMENT .........26...
  • Page 3: Manual Simbology

    MANUAL SIMBOLOGY USER AUTHORISED TECHNICIAN (ONLY to interpret or the Stove-manufacturer or the Authorized Technician of Technical Assistance Service approved by the Stove-manufacturer) SPECIALIZED STOVE-REPAIRER CAUTION: READ CAREFULLY THE NOTE CAUTION: DANGER OR IRREVERSIBLE DAMAGE POSSIBILITY • The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/ or the Authorized Technician and/or the Specialized Stove-repairer).
  • Page 4: Stove Handling

    STOVE HANDLING Both whether the stove is packed or not it is necessary to observe the following instructions for handling and transporting the stove from its sale point to its installation point and for any future movements: • The stove must be handled with idoneous means paying attention to the existing safety regulations; •...
  • Page 5: Smoke Duct (Smoke Fitting)

    SMOKE DUCT (SMOKE FITTING) The smoke duct is the pipe that connects the appliance to the flue. This smoke fitting must comply in particular with the following requirements: • comply with product standard EN 1856-2; • its cross-section must be of constant diameter and no less than that of the appliance outlet, from the firebox outlet up to the connection in the flue;...
  • Page 6: Chimney Pot

    Fig. 3 - Chimney Flues LEGEND Fig. 3 Chimney flue with insulated stainless-steel pipes Chimney flue on the existing chimney Inspection plug Inspection door • The chimney flue must be provided CE in accordance with EN 1443 regulation. Please find attached an example of label: Fig.
  • Page 7: Maintenance

    Fig. 5 - Anti-wind chimney pots Fig. 6 - Reflux area MAINTENANCE • The fumes extraction pipes (fumes conduit + chimney flue + chimney pot) must always be cleaned, scrubbed and checked by an expert stove-repairer, in compliance with current regulations, with the instructions of the stove-manufacturer and the directives of your insurance company.
  • Page 8: Combustible Air Inlet For Sealed-Chamber

    Air duct diameter Maximum length (smooth duct) Maximum length (corrugated duct) 100 mm 12 m Above 15 kW: Air duct diameter Maximum length (smooth duct) Maximum length (corrugated duct) 50 mm 60 mm 80 mm 100 mm Fig. 7 - Direct air inflow Fig.
  • Page 9: Examples Of Installation

    EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) Fig. 10 - Chimney flue 1. Flue installation with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by plate data) if next to flammable parts such as wood etc.
  • Page 10: Installation

    LEGEND Fig. 10 Insulation Possible diameter increase Inspection cap Inspection access panel Air inlet Tee fitting with inspection cap Distance from flammable material (smoke duct plate) Maximum 4 m Minimum 3° slope Distance from flammable material (appliance plate) Reflux area Air ducting The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683.
  • Page 11: Minimum Distances

    A sealed installation does not consume the room’s oxygen because it draws all the air from the outer environment (if suitably ducted) and makes it possible to install the product in all houses that require a high degree of insulation such as “passive” or “high energy efficiency”...
  • Page 12: Overall Dimensions

    This operation (1*) must be performed by a technician qualified to disconnect the combustion product expulsion ducts and their subsequent restoration. For generators connected to the hydraulic system, a connection must be provided between the system itself and the product so that, during extraordinary maintenance, carried out by a qualified technician, it is possible to move the generator 1 by at least 50 cm from adjacent walls without emptying the system (e.g.
  • Page 13 LEGEND Fig. 13 69 cm 95,2 cm 27,3 cm 13,3 cm 14 cm 29,7 cm 17,3 cm 76 cm 14,1 cm 76 cm 13,3 cm Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm 31 cm Fig. 14 - General dimensions: Atrium LEGEND Fig.
  • Page 14 Fig. 15 - General dimensions: Roxy LEGEND Fig. 15 72,7 cm 94,5 cm 27,4 cm 13,5 cm 17,1 cm 29,8 cm 19,7 cm 76 cm 17,3 cm 76 cm 13,2 cm Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm 31 cm Fig.
  • Page 15: Stove Door Removal/Installation

    LEGEND Fig. 16 Hole combustion air inlet d.6 cm 31 cm Fig. 17 - General dimensions: SOLO 5 - MADISON 5 LEGEND Fig. 17 60 cm 95,5 cm 27,5 cm 12,5 cm 6 cm 30 cm 17,5 cm 31,5 cm 6,5 cm 76 cm 13,2 cm...
  • Page 16: Grace Frame Assembling

    DOOR ASSEMBLY To assemble the door you must centre the pivots fixed to the door, on the structure bracket. After having mounted the door with the screwdriver, lift the lever so that the door is locked. GRACE FRAME ASSEMBLING METAL •...
  • Page 17 Fig. 26 - Lower bracket fixing Fig. 27 - Upper bracket fixing • Tighten the screws to the stone (see Fig. 28), the screw head must protrude about 1.5 mm (see Fig. 29). Fig. 28 - Tighten the screws Fig. 29 - The screw must protrude •...
  • Page 18: Frame Disassembly Spirit

    Fig. 33 - Lower bracket fixing Fig. 34 - Upper bracket fixing • Tighten the screws to the glass (see Fig. 35), the screw head must protrude about 1.5 mm (see Fig. 36). Fig. 35 - Tighten the screws Fig. 36 - The screw must protrude •...
  • Page 19: Roxy - Atrium Panel Disassembly

    Fig. 40 - Remove the screws Fig. 41 - Unhook frame ROXY - ATRIUM PANEL DISASSEMBLY • Remove the door (see the dedicated chapter). • Remove the 2 screws of the faceplates located under and above the door (see Fig. 42 and Fig. 43) and then take them out (see Fig.
  • Page 20: Upper Exhaust Grace

    UPPER EXHAUST GRACE Proceed as follows to install the Grace with the upper smoke exhaust: • With the help of clamps, break the grid near the exhaust (see Fig. 48). There are precuts under the grid that facilitate its removal. •...
  • Page 21: Grace 3 Wall Mounting (Optional)

    6.10 GRACE WALL MOUNTING (OPTIONAL) The stove is suitable for wall mounting. The can be attached to a load-bearing wall in masonry (NOT plasterboard, wood, etc...) suitable for the entire weight of the stove. Fig. 54 - Wall mounting LEGEND Fig.
  • Page 22: 6.11 Electric Connection

    LEGEND Fig. 55 - Fig. 56 - Fig. 57 Hole d.120 mm for fumes extraction Hole d.80 mm for combustion air inlet Wall support Metal dowels Clamping bracket Screw 6.11 ELECTRIC CONNECTION Warning: the appliance must be installed by an authorized technician! •...
  • Page 23: Connection To The External Thermostat

    • Press the "menu" button to confirm. 6.13 CONNECTION TO THE EXTERNAL THERMOSTAT Fig. 61 - 3-key display The stove works through a thermostat probe placed in its inner. If you desire, the stove can be connected to an external room thermostat.
  • Page 24: Special Maintenance

    DATA Stove depression - temperature 5,2 kW 20 Pa - 160°C 22 Pa - 170°C 24 Pa - 190°C 29 Pa - 195°C 33 Pa - 210°C Stove depression - temperature 7 kW 25/26 Pa - 190°C 29/30 Pa - 200°C 34/35 Pa - 220°C 40/41 Pa - 240°C 47/48 Pa - 250° NB: for good combustion, the depression values must be between + -5 Pa and the temperature values between + - 10°C.
  • Page 25: How To Clean The Room Fan

    Fig. 64 - Remove the inspection cap Fig. 65 - Vacuum out the ash • Remove the door and the front coating (see dedicated chapters). • Loosen the screws and remove the inspection cap (see Fig. 64). • Vacuum the ash accumulated inside (see Fig. 65). Fig.
  • Page 26: Fume Pipes Annual Cleaning

    Fig. 69 - Room fan cleaning MODELS (GRACE3 - ROXY - TABLA) • Remove the door and the front coating (see dedicated chapters). • The room fan is fixed to the back of the stove, to remove it loosen the 4 screws behind the stove (see Fig. 70). •...
  • Page 27: In Case Of Anomaly

    IN CASE OF ANOMALY PROBLEM SOLVING Before of every Authorized Technician intervention, the same Technician has the duty to check if the parame- ters of the mother board correspond to those of the table you own. In case of doubts regarding the use of the stove, please contact ALWAYS the Authorized Technician on order to avoi irreparable damages! PROBLEM CAUSE...
  • Page 28 PROBLEM CAUSE SOLUTION INTERVENTION Empty hopper Full the hopper. Auger blocked by a foreign object (for Clean the auger. example nails) Bad quality pellets Try other types of pellets. Pellet drop value too Adjust the pellet loading. low "phase 1" The fire extinguish and the stove stops Check if on the...
  • Page 29: Technical Datas

    PROBLEM CAUSE SOLUTION INTERVENTION The stove is at its Ambient temperatu- The stove is at its minimum value. Increase the desired ambient highest power but re reached. temperature. does not heat up. Stove running and display showing Reached fume outlet The stove runs at minimum.
  • Page 30: Features

    Fig. 73 - Remove the screws Fig. 74 - Remove the screw FEATURES DESCRIPTION GRACE ROXY TABLA WIDTH 69 cm 72,7 cm 71 cm DEPTH 27,5 cm 27,4 cm 27,5 cm HEIGHT 98,7 cm 94,5 cm 95,5 cm WEIGHT 63,5 - 80 kg 63 kg 60 kg INTRODUCED THERMIC POWER (Min/Max)
  • Page 31 DESCRIPTION SPIRIT - 5kW ATRIUM 5 AT SOLO5 - MADISON5 WIDTH 60 cm 64,5 cm 60 cm DEPTH 27,5 cm 27,7 cm 27,5 cm HEIGHT 95,8 cm 94 cm 95,5 cm WEIGHT 55 kg 59 kg 55 kg INTRODUCED THERMIC POWER (Min/Max) 2,9 - 5,8 kW 2,9 - 5,8 kW 2,9 - 5,8 kW...
  • Page 32 Rev. 01- 2023 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Martiri della Libertà, 74 - Italy www.pegasoheating.com Tel. +39 0438 1520200...
