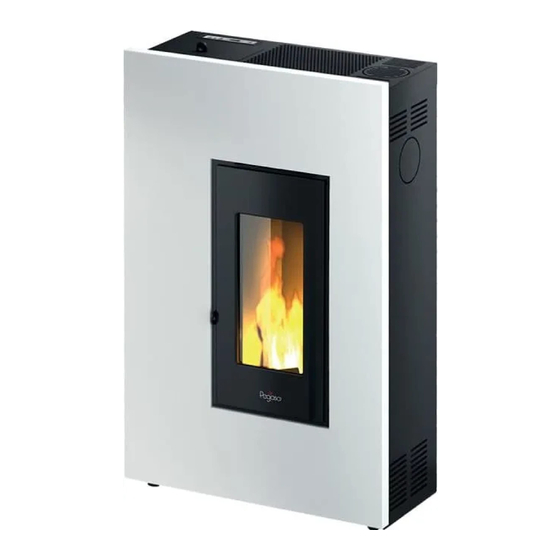

Cadel ROXY User Manual

Hide thumbs Also See for ROXY:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
Pellet Stove
EN
new
Original Instructions | ©2022 CADEL srl | All rights reserved - Tutti i diritti riservati
ROXY - ATRIUM 5 AIRTIGHT - TABLA - SOLO 5 - MADISON 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROXY and is the answer not in the manual?

Questions and answers

Related Manuals for Cadel ROXY

Summary of Contents for Cadel ROXY

  • Page 1 USER MANUAL Pellet Stove Original Instructions | ©2022 CADEL srl | All rights reserved - Tutti i diritti riservati ROXY - ATRIUM 5 AIRTIGHT - TABLA - SOLO 5 - MADISON 5...

  • Page 2: Table Of Contents

    8.8 POWER SETTING ...........20 8.9 SWITCHING OFF ............20 8.10 CONNECTION TO THE EXTERNAL THERMOSTAT ..20 9 FUEL ............21 9.1 FUEL ..............21 9.2 PELLET SUPPLY .............21 9.3 PELLET REFUELLING TIMER ........22 10 VENTILATION ..........22 11 REMOTE CONTROL (OPTIONAL) ....22 ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 3: Manual Simbology

    2014/53/EU (RED - Radio Equipment directive) 2011/65/EU (ROhS) Hereby CADEL S.r.l. declares that the radio equipment type Easy Connect Plus + Navel Stand Alone is in compliance with Directive 2014/53/EU. According to (EU) No. 305/2011 regulation, the " Declaration of Performance" and "Declaration of Conformity" are available online,...

  • Page 4: Revisions To The Publication

    No part of this manual may be translated into other languages, adapted and/or reproduced, even in part, in other mechanical and/ or electronic form or media, for photocopies, recordings or other, without the prior written authorisation of CADEL S.r.l. The company reserves the right to make changes to the product at any time without prior notice. The owner company reserves its rights according to law.

  • Page 5: Safety Requirements

    Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • Packaging are not toys and could cause suffocation or strangulation and other health ha- zards! People (childreen included) with reduced mobility, psycological deseases or without ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 6: Cautions - Warranty Conditions

    6 mm diameter and an average length of around 24 mm (avoid pellets that are too long or excessively crushed). • With wood-burning appliances, the fuel must comply with the current EN ISO 17225-5 class A1 regulation. Check the correct ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 7: Warranty Conditions

    WARRANTY CONDITIONS The duration, conditions and limitations of CADEL S.r.l. can be found on the guarantee card enclosed with the device. The company guarantees the product, with the exception of elements subject to normal wear listed below, for a period of 2 (two) years from the date of purchase attested by: •...

  • Page 8: Spare Parts

    More specifically, the electric and electronic components must be separated and disposed of in authorised centres, in compliance with the WEEE directive 2012/19/EU and the relative national transpositions. Fig. 1 - Exploded drawing ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 9: Information For Management Of Electric And

    The material that the appliance’s packaging is made of must be managed correctly, in order to make collection, reuse, recovery and recycling easier, where possible. The table below illustrates the possible components that the packaging is made of, and the relative instructions for correct disposal. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 10: Wifi - Bluetooth Connection

    The manufacturer will not be held responsible for injury to persons or damage to property or in the event of failed operation. The Wi-Fi module uses the domestic Wi-Fi network; ensure there is enough coverage in the place of installation. N.B.: for stoves with a 3-button display, the programmable thermostat cannot be configured via the App. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 11: Use

    Therefore varnish endurance in the combustion chamber cannot be guarantee. Oily plant waste and lacquers can cause smells and smoke during the first working hours: it is advisable to ventilate the room because they could be noxious to people and animals. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 12: Control Panel

    Pressed for 2 seconds, it turns the WORK stove on or off accordingly ON/OFF Allows you to select the parameters PROGRAMMING to be programmed Meaning of the LEDs that are on (see Fig. 6): Fig. 6 - Display: LEDs on ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 13: User Menu

    02 - Clock hours 0-23 02-tiME cLocK 03 - Clock minutes 0-59 03-MinutES cLocK 04 - Clock day 1-31 04-dAy cLocK 05 - Clock month 1-12 05-MontH cLocK 06 - Clock year 00-99 M2 - Chrono setting M2-SEt cHrono ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...
  • Page 14 17 - Friday Prg 2 on/oFF 17-Frid PrG2 18 - Saturday Prg 2 on/oFF 18-SAtu PrG2 19 - Sunday Prg 2 on/oFF 19-Sund PrG2 20 - start Prg 3 oFF-0-23:50 20-StArt PrG3 21 - stop Prg 3 oFF-0-23:50 21-StoP PrG3 ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...
  • Page 15 M2-5 - Exit M2-5-EScAPE M3 - Choose language M3-LAnGuAGE 01 - Italian 01-LinG itA 02 - English 02-LinG EnG 03 - French 03-LinG FrE 04 - German 04-LinG dEu 05 - Spanish 05-LinG SPA 06 - Portuguese 06-LinG Por ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 16: Menu M1 - Clock Setting

    The menu shown on the M2 - 1 chrono setting "cHrono EnAbLE " display allows you to globally enable and disable all the chro- nothermostat functions. Enable by pressing button P3 and then pressing P1 or P2 for the On or Off section. Confirm with the P3 button (see Fig. 8). ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...
  • Page 17 PrG1 reference day on/off M2-3-08 Frid PrG1 on/off M2-3-09 SAtu PrG1 on/off M2-3-10 Sund PrG1 on/off PROGRAM 2 MENU LEVEL SELECTION MEANING POSSIBLE VALUES M2-3-11 StArt PrG2 activation time off-0-23:50 M2-3-12 StoP PrG2 deactivation time off-0-23:50 ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 18: Menu M3 - Language Selection

    Menu M3 - LANGUAGE SELECTION Allows you to select the dialogue language from those available (see vedi Fig. 10). To switch to the next language press P2 (incre- ases), to go backwards press P1 (decreases), and to confirm press P3. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 19: Menu M4 - Stand-By

    Menu M8 - ENGINEER SETTINGS This menu item is reserved for the stove installer. After entering the password (see Fig. 15) it allows you to set the various opera- ting parameters of the stove using buttons P1 (decreases) and P2 (increases). ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 20: Menu M9 - Pellet Type

    ON/OFF LED flashes intermittently. In the first phase, the feed screw loads the pellet into the burn pot. After the temperature of the flue gas has reached and exceeded the contained value, the system goes into ignition mode and Fire present "FLAME LiGHt " appears on the display and the ON/OFF LED flashes. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 21: Failed Ignition

    8.10 CONNECTION TO THE EXTERNAL THERMOSTAT The stove works through a thermostat probe placed in its inner. If you desire, the stove can be connected to an external room thermostat. This operation must be executed by an authorized technician. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 22: Fuel

    It is necessary to avoid to fill the hopper with the pellet when the stove is running. • Do not get the bag of pellet in contact with hot stove surfaces. • Do not empty the hopper with remaining fuels (unburnt pellet) from the burning pot coming from ignition waster. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 23: Pellet Refuelling Timer

    Fig. 25 - Do not cover air slits REMOTE CONTROL (OPTIONAL) • The stove can be operated through a remote control (optional) • Operation requires 1 CR 2025 (3Volt) Lithium battery • Operating temperature 0 °C / 50 °C • 38 khz infrared signal ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 24: Safety Devices And Alarms

    The product is protected against sudden current surges by a main fuse in the power supply panel on the rear part of the product. Other fuses that protect the electronic boards are found on the latter. 12.5 SMOKE FAN If the fan stops, the electronic board promptly shuts off the pellets supply and an alarm message is displayed. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 25: Gear Motor

    It occurs if there is a fault in the flue gas fan. The stove goes into the alarm status and the message Al 4 alar al 4 Faulty extractor "AL 4 ALAr AL4 FAn FAiLurE " will scroll on the display (see Fig. 30). ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 26: Failed Ignition Alarm

    (alarm LED on). The display will show the message Al 8 alar al 8 No Negative Pressure "AL 8 ALAr FAiLurE dEPrESS " (see Fig. 34) and the stove will shut down. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 27: Alarm Alerts

    The pellets can burn also thanks to the chimney flue depression FAILURE and without the aid of the fume fan. Have the fume fan repla- Faulty fume fan ced immediately. It can be noxious to health to let the stove running without fume fan. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...
  • Page 28 SAFETY stat. Let the stove cooling, reset and start the stove up again. Faulty manual reset ther- Replace the manual reset thermostat. mostat Faulty mother board Replace the mother board. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 29: Alarm Reset

    • After a long ineffective time, before turning on the stove check if there are obstructions in the fume exhaust. • If the stove had been using continuously and intensely, the whole system (chimney included), must be cleaned and checked ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 30: Before Each Start-Up

    Fig. 38 - Burning pot cleaning • Extract the burning pot (see Fig. 37) from its seat and empty it from the ash. • If necessary clean with a pointed object the holes obstructed by encrustations (see Fig. 38). ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 31: Hopper Cleaning

    Some stove models has an external lining made up of ceramic or stone. These pieces are handmade therefore they could inevitably present crazings, seedinesses, shadings. To clean ceramic or stone panels use a soft and dry cloth. If using any cleaners this will seep through the crazings putting them in evidence. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 32: Gasket Replacement

    We recommend for this yearly maintenance to be carried out (with a scheduled service contract). This operation consists of a visual and functional inspection of the internal components. A summary of the checks and/or maintenance operations that are essential for the correct operation of the product is provided below. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 33: In Case Of Anomaly

    Replace the protection fuses in the electric socket (3.15A-250V). socket The control display Faulty control Replace the control display. does not switch on display Faulty flat cable Replace the flat cable. Faulty electronic Replace the mother board. board ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...
  • Page 34 Ignition step is not Empty the brazier and repeat ignition. completed The exhaust chimney is partially or totally obstructed. Call a skilled Clogged exhaust chimney technician to check from the stove exhaust to the chim- neypot. Clean immediately. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...
  • Page 35 Stove running and Routine maintenan- When this flashing message appears upon start-up, it means that display showing ce alert (it does not the preset operating hours have elapsed before maintenance. "SERVICE" block the system) Contact the service centre. ATRIUM AT 5kW-ROXY-MADISON-SOLO-TABLA...

  • Page 36: Technical Documentation For Local Space Heaters According To Commission Regulations (Eu) 2015/1185 - (Eu) 2015/1186 (Product Fiche)

    TECHNICAL DOCUMENTATION FOR LOCAL SPACE HEATERS ACCORDING TO COMMISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FI- CHE) Manufacturer CADEL srl - Via Foresto Sud 7 - 31025 Santa Lucia di Piave (TV) - Italy CADEL: GRACE3 Trademak: model identifier FREEPOINT: ROXY...
  • Page 37 TECHNICAL DOCUMENTATION FOR LOCAL SPACE HEATERS ACCORDING TO COMMISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FI- CHE) Manufacturer CADEL srl - Via Foresto Sud 7 - 31025 Santa Lucia di Piave (TV) - Italy CADEL: SPIRIT3 5kW Trademak: model identifier FREEPOINT: ATRIUM 5 AIRTIGHT...
  • Page 38 NOTE...
  • Page 39 NOTE...
  • Page 40 Rev. 00 - 2023 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Martiri della Libertà, 74 - Italy www.pegasoheating.com Tel. +39 0438 1520200...
