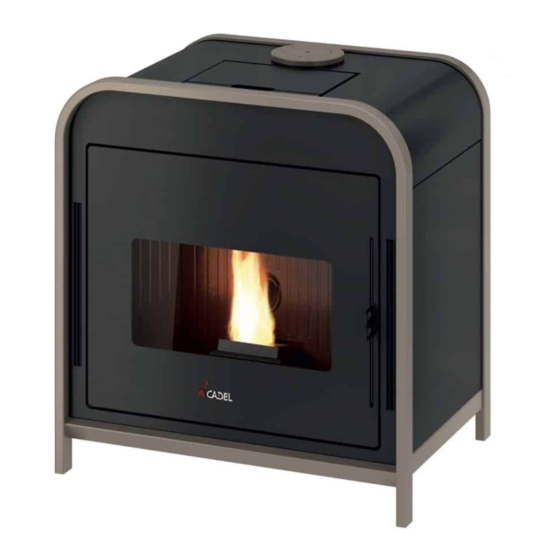

- Page 1 INSTALLER MANUAL Pellet Stove Original Instructions | ©2022 CADEL srl | All rights reserved - Tutti i diritti riservati FRAME - FRAME UP - QUASIMODO UP -MODO AIRTIGHT...
-
Page 2: Table Of Contents
6.11 FRAME HOT AIR DUCTING (OPTIONAL) ....18 SUMMARY 6.12 MODO AIRTIGHT CONCENTRIC PIPE INSTALLATION ... 19 1 MANUAL SIMBOLOGY ........3 6.13 ELECTRIC CONNECTION .........21 2 PACKAGING AND HANDLING ......3 6.14 CONNECTION TO THE EXTERNAL THERMOSTAT ..21 2.1 PACKAGING .............3 6.15 STOVE CALIBRATION DEPRESSION 2.2 REMOVING THE STOVE FROM THE PALLET ....3... -
Page 3: Manual Simbology
MANUAL SIMBOLOGY USER AUTHORISED TECHNICIAN (ONLY to interpret or the Stove-manufacturer or the Authorized Technician of Technical Assistance Service approved by the Stove-manufacturer) SPECIALIZED STOVE-REPAIRER CAUTION: READ CAREFULLY THE NOTE CAUTION: DANGER OR IRREVERSIBLE DAMAGE POSSIBILITY • The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/ or the Authorized Technician and/or the Specialized Stove-repairer). -
Page 4: Stove Handling
STOVE HANDLING Both whether the stove is packed or not it is necessary to observe the following instructions for handling and transporting the stove from its sale point to its installation point and for any future movements: • The stove must be handled with idoneous means paying attention to the existing safety regulations; •... -
Page 5: Smoke Duct (Smoke Fitting)
SMOKE DUCT (SMOKE FITTING) The smoke duct is the pipe that connects the appliance to the flue. This smoke fitting must comply in particular with the following requirements: • comply with product standard EN 1856-2; • its cross-section must be of constant diameter and no less than that of the appliance outlet, from the firebox outlet up to the connection in the flue;... -
Page 6: Chimney Pot
Fig. 3 - Chimney Flues LEGEND Fig. 3 Chimney flue with insulated stainless-steel pipes Chimney flue on the existing chimney Inspection plug Inspection door • The chimney flue must be provided CE in accordance with EN 1443 regulation. Please find attached an example of label: Fig. -
Page 7: Maintenance
Fig. 5 - Anti-wind chimney pots Fig. 6 - Reflux area MAINTENANCE • The fumes extraction pipes (fumes conduit + chimney flue + chimney pot) must always be cleaned, scrubbed and checked by an expert stove-repairer, in compliance with current regulations, with the instructions of the stove-manufacturer and the directives of your insurance company. -
Page 8: Combustible Air Inlet For Sealed-Chamber
Below 15 kW: Air duct diameter Maximum length (smooth duct) Maximum length (corrugated duct) 50 mm 60 mm 80 mm 100 mm 12 m Above 15 kW: Air duct diameter Maximum length (smooth duct) Maximum length (corrugated duct) 50 mm 60 mm 80 mm 100 mm... -
Page 9: Examples Of Installation
EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) Fig. 10 - Chimney flue 1. Flue installation with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by plate data) if next to flammable parts such as wood etc. -
Page 10: Installation
LEGEND Fig. 10 Insulation Possible diameter increase Inspection cap Inspection access panel Air inlet Tee fitting with inspection cap Distance from flammable material (smoke duct plate) Maximum 4 m Minimum 3° slope Distance from flammable material (appliance plate) Reflux area Air ducting The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. -
Page 11: Minimum Distances
A sealed installation does not consume the room’s oxygen because it draws all the air from the outer environment (if suitably ducted) and makes it possible to install the product in all houses that require a high degree of insulation such as “passive” or “high energy efficiency”... -
Page 12: Overall Dimensions
subsequent restoration. For generators connected to the hydraulic system, a connection must be provided between the system itself and the product so that, during extraordinary maintenance, carried out by a qualified technician, it is possible to move the generator 1 by at least 50 cm from adjacent walls without emptying the system (e.g. - Page 13 LEGEND Fig. 13 70,3 cm 83 cm 61 cm 35,1 cm 12,5 cm 36,4 cm 21,2 cm Exhaust fumes d.8 cm Hole combustion air inlet d.13 cm Ducting outlet d.8 cm (optional) Hot air outlet 32x2 cm Fig. 14 - General dimensions: QUASIMODO LEGEND Fig.
-
Page 14: Mounting Modo At And Quasimodo Up Stand
Fig. 15 - General dimensions: MODO AT LEGEND Fig. 15 70 cm 56 cm 58 cm 42,5 cm 35 cm 10,6 cm Exhaust fumes d.8 cm Hole combustion air inlet d.13 cm 70 cm 30 cm 60 cm 42,5 cm 65 cm 30 cm MOUNTING MODO AT AND QUASIMODO... -
Page 15: Mounting Modo At Legs
Fig. 16 - Stand fastening • Set the machine body above the stand and fix it all with the supplied screws (see Fig. 16). MOUNTING MODO AT LEGS Assembly operations must always be carried out by 2 people! To assemble the legs, proceed as follows: Fig. -
Page 16: Remove Side Panels Modo Airtight / Quasimodo
REMOVE SIDE PANELS MODO AIRTIGHT / QUASIMODO Proceed as follows to remove the stove side panels: Fig. 22 - Remove the screws Fig. 23 - Unhook the side • Loosen the 2 screws (see Fig. 22). • Release the 2 teeth on the bottom of the side panel and remove it (see Fig. 23). DOOR ADJUSTMENT To centre the door, proceed as follows: Fig. -
Page 17: 6.10 Ducting Data
Fig. 25 - Ring removal Air regulator opening 35 mm for nominal power with flue 11 Pa. 6.10 DUCTING DATA Fig. 26 - Ducting system example • If the stove is not fitted with ducting system, it provide a hot air capacity ranging from a minimum of 61 m /h to a maximum of 120 m /h with a temperature ranging between 90°C and 136°C. -
Page 18: Frame Hot Air Ducting (Optional)
6.11 FRAME HOT AIR DUCTING (OPTIONAL) WITH THE INSTALLATION OF THE DUCTING, IT IS NECESSARY TO LOAD THE NEW DATABASE IN THE BOARD (DA- TABASE NO. 07). SEE “SERVICE MANUAL”. By default, the insert inserts the hot air into the environment from both the front vents. It is possible to channel the left air on the back of the stove, through a ducting kit. -
Page 19: 6.12 Modo Airtight Concentric Pipe Installation
Fig. 32 - Fix the cover Fig. 33 - Fix the fan to the casing Fig. 34 - Fix with screws • Fix the casing + fan to the stove with the screws (see Fig. 35). • Position the fitting at 45° to the fan fitting (see Fig. 36). •... - Page 20 Fig. 38 - Removing the back Fig. 39 - Unscrewing the exhaust Fig. 40 - Removing the ring • Position the pipe for the upper exhaust with the concentric pipe on the top part (see Fig. 41). • Fasten the concentric pipe (see Fig. 42). •...
-
Page 21: 6.13 Electric Connection
6.13 ELECTRIC CONNECTION Warning: the appliance must be installed by an authorized technician! • The electric connection occurs through a cable with plug put in an electric socket which is able to support charge and tension specific of every model, as described in the technical datas table (see FEATURES a pag. 29). •... -
Page 22: Special Maintenance
• Start the stove and set "Set flame" to power 1 (the start-up time of this stove lasts between 8 and 10 minutes to ensure mini- mum draught). • Compare the read values with those on the table. • Change power every 10 minutes and wait for it to stabilise. •... -
Page 23: Fume Fan Cleaning
Clean every the year the fume fan from ash or dust which can cause a blade unbalance and a greater noise. • Remove the right side panel (see REMOVE SIDE PANELS FRAME3 a pag. 15) and loosen the screw behind the right fan (see Fig. -
Page 24: Fume Conduit Cleaning
Fig. 57 - Loosen the screw Fig. 58 - Remove screw 1 Fig. 59 - Remove screw 2 • Disconnect the wiring and remove the fan (see Fig. 60). • Remove the flue gas extractor screws (see Fig. 61) and proceed with cleaning. Fig. -
Page 25: Fume Passages Cleaning
Fig. 64 - Fume conduit cleaning Fig. 65 - Fume conduit cleaning • Remove the inspection lid of the T-union (see Fig. 64, Fig. 65). • Extract the ash which has accumulated in the inner. • After cleaning repeat the operation in reverse order, checking the condition and efficiency of the gasket, and if necessary replace it. -
Page 26: Fume Pipes Annual Cleaning
• After cleaning, repeat the operation in reverse making sure the gasket is intact and efficient: if necessary, provide for the replacement with original spare parts. Fig. 71 - Vacuum out the ash Fig. 70 - Clean with pipe cleaner •... - Page 27 PROBLEM CAUSE SOLUTION INTERVENTION The stove is without Check if the plug is connected. power supply Burned protection fuse in the electric Replace the protection fuses in the electric socket (3.15A-250V). socket The control display Faulty control Replace the control display. does not switch on display Faulty flat cable...
- Page 28 PROBLEM CAUSE SOLUTION INTERVENTION Check as following: probable obstructions of the combustible air Not sufficient com- inlet from the back or from the bottom of the stove; burning pot bustion air obstructed holes with too ash remains. Have the fan blades and auger cleaned.
-
Page 29: Technical Datas
TECHNICAL DATAS FUSE REPLACEMENT For fuse replacement in the electric socket which stands on the back of the stove, extract the fuses to change with the aid of a screwdriver for opening the shutter (see Fig. 72). Fig. 72 - Shutter with fuses to remove FEATURES DESCRIPTION FRAME... - Page 30 DESCRIPTION MODO AIRTIGHT QUASIMODO UP . WIDTH 70 cm 70 cm DEPTH 58 cm 58 cm HEIGHT 56 cm 56 cm WEIGHT 95 kg 108 kg INTRODUCED THERMAL POWER (Min/Max) 2,85 - 10,51 kW 2,85 - 10,51 kW NOMINAL THERMAL POWER (Min/Max) 2,7 - 9,3 kW 2,7 - 9,3 kW EFFICIENCY (Min/Max)
- Page 31 NOTE...
- Page 32 Rev. 00 - 2022 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy www.pegasoheating.com Tel. +39.0438.738669 Fax +39.0438.73343...
