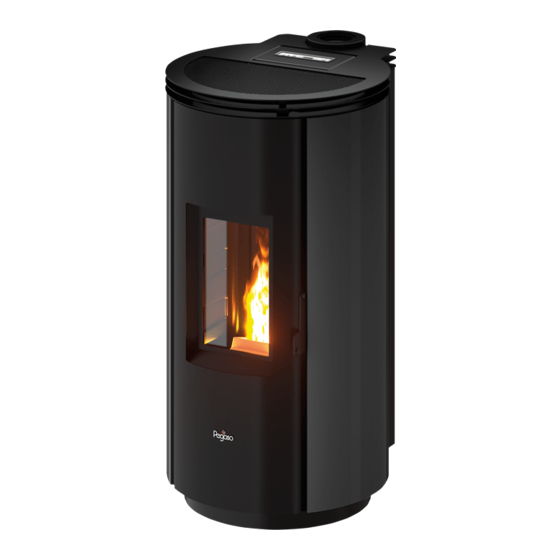

Cadel SOUND3 5 UP Installer Manual
  1. Manuals
  2. Brands
  3. Cadel Manuals
  4. Stove
  5. SOUND3 5 UP
  6. Installer manual

Cadel SOUND3 5 UP Installer Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER MANUAL
Pellet Stove
EN
new
©2022 CADEL srl | All rights reserved - Tutti i diritti riservati
LORD 7/7.0 - SWEET
7/7.0 - PERLA
7/7.0, - CRISTAL
7/7.0 -
3
3
3
ONE AIRTIGHT - BEAM AIRTIGHT - ACCENT AIRTIGHT
SHARP AIRTIGHT - LEE AIRTIGHT - SOUND
5/7 UP
3
CHROME 5/7 AIRTIGHT - ROUND 5/7 AIRTIGHT - FLOYD 5.0/7.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOUND3 5 UP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cadel SOUND3 5 UP

Summary of Contents for Cadel SOUND3 5 UP

  • Page 1 INSTALLER MANUAL Pellet Stove ©2022 CADEL srl | All rights reserved - Tutti i diritti riservati LORD 7/7.0 - SWEET 7/7.0 - PERLA 7/7.0, - CRISTAL 7/7.0 - ONE AIRTIGHT - BEAM AIRTIGHT - ACCENT AIRTIGHT SHARP AIRTIGHT - LEE AIRTIGHT - SOUND 5/7 UP CHROME 5/7 AIRTIGHT - ROUND 5/7 AIRTIGHT - FLOYD 5.0/7.0...

  • Page 2: Table Of Contents

    UP - CHROME AT - FLOYD MODELS) ........22 SUMMARY 6.15 INSTALLATION OF SHARP AIRTIGHT REAR EXHAUST 1 MANUAL SIMBOLOGY ........3 ................22 2 PACKAGING AND HANDLING ......3 6.16 INSTALLATION OF THE FUMES OUTLET CONCENTRIC 2.1 PACKAGING .............3 PIPE SHARP/LEE/CRISTAL/ONE/BEAM/ACCENT/PERLA/ 2.2 REMOVING THE STOVE FROM THE PALLET ....3 SWEET/LORD ..............22 2.3 STOVE HANDLING............4 6.17 INSTALLATION OF CONCENTRIC SMOKE OUTLET WITH...

  • Page 3: Manual Simbology

    MANUAL SIMBOLOGY USER AUTHORISED TECHNICIAN (ONLY to interpret or the Stove-manufacturer or the Authorized Technician of Technical Assistance Service approved by the Stove-manufacturer) SPECIALIZED STOVE-REPAIRER CAUTION: READ CAREFULLY THE NOTE CAUTION: DANGER OR IRREVERSIBLE DAMAGE POSSIBILITY • The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/ or the Authorized Technician and/or the Specialized Stove-repairer).

  • Page 4: Stove Handling

    STOVE HANDLING Both whether the stove is packed or not it is necessary to observe the following instructions for handling and transporting the stove from its sale point to its installation point and for any future movements: • The stove must be handled with idoneous means paying attention to the existing safety regulations; •...

  • Page 5: Smoke Duct (Smoke Fitting)

    SMOKE DUCT (SMOKE FITTING) The smoke duct is the pipe that connects the appliance to the flue. This smoke fitting must comply in particular with the following requirements: • comply with product standard EN 1856-2; • its cross-section must be of constant diameter and no less than that of the appliance outlet, from the firebox outlet up to the connection in the flue;...

  • Page 6: Chimney Pot

    Fig. 3 - Chimney Flues LEGEND Fig. 3 Chimney flue with insulated stainless-steel pipes Chimney flue on the existing chimney Inspection plug Inspection door • The chimney flue must be provided CE in accordance with EN 1443 regulation. Please find attached an example of label: Fig.

  • Page 7: Maintenance

    Fig. 5 - Anti-wind chimney pots Fig. 6 - Reflux area MAINTENANCE • The fumes extraction pipes (fumes conduit + chimney flue + chimney pot) must always be cleaned, scrubbed and checked by an expert stove-repairer, in compliance with current regulations, with the instructions of the stove-manufacturer and the directives of your insurance company.

  • Page 8: Combustible Air Inlet For Sealed-Chamber

    Below 15 kW: Air duct diameter Maximum length (smooth duct) Maximum length (corrugated duct) 50 mm 60 mm 80 mm 100 mm 12 m Above 15 kW: Air duct diameter Maximum length (smooth duct) Maximum length (corrugated duct) 50 mm 60 mm 80 mm 100 mm...
  • Page 9 EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) Fig. 10 - Chimney flue 1. Flue installation with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by plate data) if next to flammable parts such as wood etc.

  • Page 10: Installation

    LEGEND Fig. 10 Insulation Possible diameter increase Inspection cap Inspection access panel Air inlet Tee fitting with inspection cap Distance from flammable material (smoke duct plate) Maximum 4 m Minimum 3° slope Distance from flammable material (appliance plate) Reflux area Air ducting The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683.

  • Page 11: Minimum Distances

    A sealed installation does not consume the room’s oxygen because it draws all the air from the outer environment (if suitably ducted) and makes it possible to install the product in all houses that require a high degree of insulation such as “passive” or “high energy efficiency”...

  • Page 12: Overall Dimensions

    This operation (1*) must be performed by a technician qualified to disconnect the combustion product expulsion ducts and their subsequent restoration. For generators connected to the hydraulic system, a connection must be provided between the system itself and the product so that, during extraordinary maintenance, carried out by a qualified technician, it is possible to move the generator 1 by at least 50 cm from adjacent walls without emptying the system (e.g.
  • Page 13 LEGEND Fig. 13 95 cm 47 cm 45,2 cm 17,9 cm 32,4 cm 13,1 cm 20,5 cm Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm Fig. 14 - General dimensions: PERLA 7 - 7.0 LEGEND Fig. 14 94 cm 52,1 cm 45,6 cm 21,3 cm...
  • Page 14 LEGEND Fig. 15 Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm Fig. 16 - General dimensions: SHARP AIRTIGHT - LEE AIRTIGHT LEGENDE Fig. 16 Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm Fig. 17 - General dimensions: SOUND3 5UP - 7UP LEGENDE Fig.
  • Page 15 Fig. 18 - Dimensioni generali: SOUND 5PS - 7PS LEGENDE Fig. 18 Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm Fig. 19 - General dimensions: CHROME 5-7 AIRTIGHT - ROUND 5-7 AIRTIGHT LEGEND Fig. 19 Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm Stufe a pellet...
  • Page 16 Fig. 20 - General dimensions: FLOYD 5.0 - 7.0 LEGEND Fig. 20 Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm Fig. 21 - General dimensions: ONE/BEAM AIRTIGHT LEGEND Fig. 21 95,2 cm 46 cm 45,2 cm 18,9 cm 31,4 cm 13,6 cm 20,2 cm...

  • Page 17: Stove Door Removal/Installation

    Fig. 22 - General dimensions: ACCENT AIRTIGHT LEGEND Fig. 22 98,8 cm 46 cm 45,2 cm 18,9 cm 35 cm 13,6 cm 23,7 cm Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm STOVE DOOR REMOVAL/INSTALLATION For some operations (e.g.: side panel assembly and cleaning) you must remove the stove door. To remove the door: •...

  • Page 18: Removal/Assembly Of The Frame

    REMOVAL/ASSEMBLY OF THE FRAME (SWEET 7.0 - ONE AT - BEAM AT - ACCENT AT - ACCENT K AT) To assemble the frame, proceed as follows: • Remove the 2 screws at the bottom of the frame (see Fig. 26). •...

  • Page 19: Lee At)

    Fig. 32 - Remove the screws Fig. 33 - Rotate the side panels Fig. 34 - Remove the side panels REMOVAL/ASSEMBLY OF SIDE PANELS (SHARP AT - LEE AT) To disassemble the side panels, proceed as follows: • Unscrew the black rear profile (see Fig. 35) •...

  • Page 20: Tiles Assembly (Perla 7.0)

    6.10 TILES ASSEMBLY (PERLA 7.0) To disassemble the tiles, proceed as follows: • Place the tiles on a worktop and set the tile support above it. • Have the holes of the profile match those of the tiles and apply all the screws (see Fig. 40). •...

  • Page 21: Removal/Assembly Of Curved Side Panels

    Fig. 43 - Mounting the stand 6.13 REMOVAL/ASSEMBLY OF CURVED SIDE PANELS (CHROME - SOUND - ROUND - FLOYD) To disassemble the side panels, proceed as follows: • Unscrew the side screws (see Fig. 44). • Open the side panel (see Fig. 45) and release the fastening teeth. •...

  • Page 22: Installation Of The Fumes Outlet Concentric

    Fig. 48 - SHARP rear exhaust 6.16 INSTALLATION OF THE FUMES OUTLET CONCENTRIC PIPE SHARP/LEE/CRISTAL/ONE/BEAM/ ACCENT/PERLA/SWEET/LORD Install the concentric pipe Ø 80/130 mm complete with T fitting (see Fig. 49) Connect the combustion air pipe Ø 60 mm (see Fig. 50) Fig.

  • Page 23: 6.18 Electric Connection

    Fig. 51 - Remove casing Fig. 52 - Break ring Fig. 53 - Remove flexible hose • Feed the flexible hose through the hole below the tank (see Fig. 54) and through the previously opened hole of the casing (see Fig. 55). •...

  • Page 24: 6.19 Connection To The External Thermostat

    • Do not use extension cables. • If the feeder cable is damaged, it must be replaced by an authorized technician. • When the stove is not going to be used for a long period of time, it advisable to remove the plug from the socket on the wall. •...

  • Page 25: Measurement

    • Press P1 (temperature setting) and set t-e “t-E” value. The external thermostat is now enabled. 6.21 STOVE CALIBRATION AND DEPRESSION MEASUREMENT This stove has a pickup point positioned on the tank in order to measure the depression of the combustion chamber and verify its proper operation.

  • Page 26: Fume Conduit Cleaning

    • In case of replacement of damaged pieces please ask for the original spare part at the Autorized Retailer. FUME CONDUIT CLEANING The exhaust system must be cleaned every 2/3 months. Fig. 64 - Fume conduit cleaning • Remove the inspection lid of the T-union (see Fig. 64). •...

  • Page 27: Fume Passages Cleaning

    FUME PASSAGES CLEANING Clean the fume passages every year. Fig. 68 - Remove the screws Fig. 69 - Remove the inspection cap • Open the door. • Remove the 4 screws (see Fig. 68) and remove the inspection cap (see Fig. 69). Fig.

  • Page 28: Room Fan Cleaning

    ROOM FAN CLEANING Clean every the year the room fan from ash or dust which can cause a blade unbalance and a greater noise. Fig. 74 - Room fan cleaning • Unscrew the side screws. (see dedicated chapters). • Remove dust build-up using a brush or a vacuum cleaner (see Fig. 74). FUME PIPES ANNUAL CLEANING Clean annually from soot with brushes.
  • Page 29 PROBLEM CAUSE SOLUTION INTERVENTION The stove is without Check if the plug is connected. power supply Burned protection fuse in the electric Replace the protection fuses in the electric socket (3.15A-250V). socket The control display Faulty control Replace the control display. does not switch on display Faulty flat cable...
  • Page 30 PROBLEM CAUSE SOLUTION INTERVENTION Check as following: probable obstructions of the combustible air Not sufficient com- inlet from the back or from the bottom of the stove; burning pot bustion air obstructed holes with too ash remains. Have the fan blades and auger cleaned.

  • Page 31: Technical Datas

    TECHNICAL DATAS REPAIR INFORMATION Now we give some instructions for the Authorized Technician to take into consideration to have access to stove mechanical com- ponents. • For fuse replacement in the electric socket which stands on the back of the stove, extract the fuses to change with the aid of a screwdriver for opening the shutter (see Fig.

  • Page 32: Features

    FEATURES DESCRIPTION LORD 7 SWEET PERLA WIDTH 45,2 cm 47 cm 52,1 cm DEPTH 45,7 cm 45,2 cm 45,6 cm HEIGHT 90,7 cm 95 cm 93,8 cm WEIGHT 55 kg 56 kg 60 - 67 kg INTRODUCED THERMIC POWER (Min/Max) 2,8 - 7,7 kW 2,8 - 7,7 kW 2,8 - 7,7 kW...
  • Page 33 DESCRIPTION LORD 7.0 SWEET PERLA WIDTH 45,2 cm 47 cm 52,1 cm DEPTH 45,7 cm 45,2 cm 45,6 cm HEIGHT 90,7 cm 95 cm 93,8 cm WEIGHT 55 kg 56 kg 60 - 67 kg INTRODUCED THERMIC POWER (Min/Max) 2,8 - 7,7 kW 2,8 - 7,7 kW 2,8 - 7,7 kW NOMINAL THERMIC POWER (Min/Max)
  • Page 34 DESCRIPTION CRISTAL CRISTAL WIDTH 47,7 cm 47,7 cm DEPTH 45,4 cm 45,4 cm HEIGHT 91 cm 91 cm WEIGHT 56 kg 56 kg INTRODUCED THERMIC POWER (Min/Max) 2,8 - 7,7 kW 2,8 - 7,7 kW NOMINAL THERMIC POWER (Min/Max) 2,6 - 7 kW 2,5 - 7 kW EFICIENCY (Min/Max) 92 - 90 %...
  • Page 35 LEE AT - SHARP DESCRIPTION ONE AT- BEAM AT ACCENT AT WIDTH 46 cm 46 cm 46 cm DEPTH 45,2 cm 45,2 cm 45,2 cm HEIGHT 95,2 cm 95,2 cm 98,7 cm WEIGHT 56 kg 56 kg 59 kg INTRODUCED THERMIC POWER (Min/Max) 2,8 - 7,7 kW 2,8 - 7,7 kW 2,8 - 7,7 kW...
  • Page 36 CHROME 5AT - DESCRIPTION SOUND3 5 UP FLOYD 5.0 ROUND5 AT WIDTH 50 cm 50 cm 50 cm DEPTH 59 cm 59 cm 59 cm HEIGHT 95 cm 95 cm 95 cm WEIGHT 76 kg 73 kg 65 kg INTRODUCED THERMIC POWER (Min/Max)
  • Page 37 CHROME/ROUND DESCRIPTION SOUND3 7 UP FLOYD 7.0 - 7AT WIDTH 50 cm 50 cm 50 cm DEPTH 59 cm 59 cm 59 cm HEIGHT 95 cm 95 cm 95 cm WEIGHT 76 kg 73 kg 65 kg INTRODUCED THERMIC POWER (Min/Max) 2,8 - 7,7 kW 2,8 - 7,7 kW 2,8 - 7,7 kW...
  • Page 38 NOTE...
  • Page 39 NOTE...
  • Page 40 Rev. 02 - 2022 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy www.pegasoheating.com Tel. +39.0438.738669 Fax +39.0438.73343...
