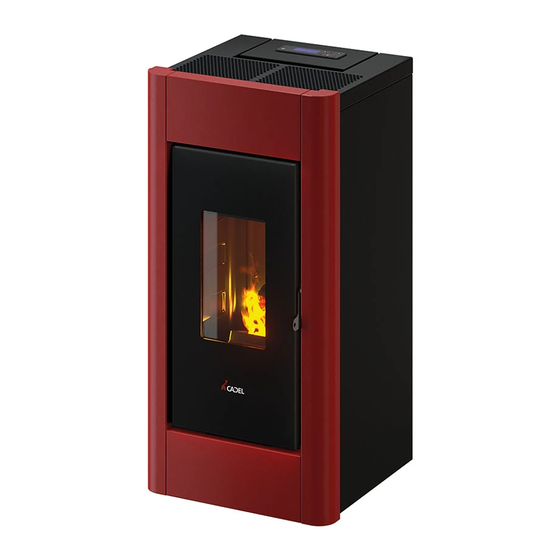

Cadel SWEET3 7 User Manual
Hide thumbs
Also See for SWEET3 7:
- Installer manual (40 pages) ,
- User manual (40 pages) ,
- Installer manual (40 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cadel SWEET3 7
Summary of Contents for Cadel SWEET3 7
- Page 1 USER MANUAL Pellet Stove ©2020 CADEL srl | All rights reserved - Tutti i diritti riservati SWEET 7, 7.0 - PERLA 7, 7.0 - CRISTAL 7, 7.0, 7.0 UP ONE AIRTIGHT - BEAM AIRTIGHT - ACCENT AIRTIGHT SHARP AIRTIGHT - LEE AIRTIGHT - CHROME 5, 7 AIRTIGHT...
- Page 2 89CD220010EN CADEL SRL - Via Foresto Sud, 7 - 31025 Santa Lucia di Piave (TV) - ITALY - Tel. +39 0438 738669 - Fax +39 0438 73343 - customercare@cadelsrl.com - www.cadelsrl.com Iscr. registro imprese / Partiva Iva IT 03202180265 - R.E.A. TV 227665 - Capitale Sociale i.v. € 30.000,00...
- Page 3 89CD220014EN CADEL SRL - Via Foresto Sud, 7 - 31025 Santa Lucia di Piave (TV) - ITALY - Tel. +39 0438 738669 - Fax +39 0438 73343 - customercare@cadelsrl.com - www.cadelsrl.com Iscr. registro imprese / Partiva Iva IT 03202180265 - R.E.A. TV 227665 - Capitale Sociale i.v. € 30.000,00...
- Page 4 89CD220015EN CADEL SRL - Via Foresto Sud, 7 - 31025 Santa Lucia di Piave (TV) - ITALY - Tel. +39 0438 738669 - Fax +39 0438 73343 - customercare@cadelsrl.com - www.cadelsrl.com Iscr. registro imprese / Partiva Iva IT 03202180265 - R.E.A. TV 227665 - Capitale Sociale i.v. € 30.000,00...
- Page 5 89CD220009EN CADEL SRL - Via Foresto Sud, 7 - 31025 Santa Lucia di Piave (TV) - ITALY - Tel. +39 0438 738669 - Fax +39 0438 73343 - customercare@cadelsrl.com - www.cadelsrl.com Iscr. registro imprese / Partiva Iva IT 03202180265 - R.E.A. TV 227665 - Capitale Sociale i.v. € 30.000,00...
- Page 6 DISPOSAL OF MATERIALS WARNINGS FOR THE CORRECT DISPOSAL OF THE PRODUCT The owner is the sole party responsible for demolishing and disposing of the product. This must be performed in compliance with laws related to safety and environmental protection in force in his/her country. At the end of its working life, the product must not be disposed of as urban waste.
- Page 7 LEGENDA WHERE TO DISPOSE MATERIALS To be disposed of separately in authorised centres, as D. ELECTRIC AND ELECTRO- Wiring, motors, fans, circulators, display panels, sen- indicated in the WEEE directive 2012/19/EU and the NIC COMPONENTS sors ignition plug, electronic cards, batteries. relative national transposition.
-
Page 8: Table Of Contents
10.1 FUEL ..............17 SUMMARY 10.2 PELLET SUPPLY .............17 1 MANUAL SIMBOLOGY ........3 10.3 PELLET REFUELLING TIMER ........17 2 DEAR CUSTOMER ..........3 10.4 VENTILATION ............18 3 CAUTIONS ............3 10.5 REMOTE CONTROL (OPTIONAL) ......18 SAFETY REQUIREMENTS ......4 11 SAFETY DEVICES AND ALARMS ....19 5 WARRANTY CONDITIONS .......5 11.1 SAFETY DEVICES ...........19 6 SPARE PARTS ..........6... -
Page 9: Manual Simbology
The products also comply with the essential requirements of Directive 2009/125/EC (Eco Design) and, where applicable, Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2011/65/EU (ROhS). • Hereby CADEL S.r.l. declares that the radio equipment type Easy Connect Plus + Navel Stand Alone is in compliance with Directive 2014/53/EU. -
Page 10: Safety Requirements
SAFETY REQUIREMENTS • Installation, electrical connection, functional verification and maintenance must only be performed by qualified or authorised personnel. • Live electrical parts: disconnect the product from the 230V power supply before performing any maintenance operation. Only power the product after completing assembly. •... -
Page 11: Warranty Conditions
your safety please use appropriate fireproof devices, such as heat-protecting gloves. • The stove is equipped with a safety device that stops the feed screw immediately when the pellet loading door is opened. This safety device (standard EN 60335-2-102) prevents the user from coming into contact with the moving parts of the appliance. -
Page 12: Spare Parts
• Variations in colour of the painted or ceramic/serpentine parts and craquelure ceramics as they are natural characteristics of the material and product use. • Masonry work. • Plant parts (if present) not supplied by the manufacturer. Any technical interventions on the product to eliminate the above-said defects and consequent damages must be agreed upon with the Technical Assistance Centre, who reserves the right to accept the relative appointment or not. -
Page 13: Wifi - Bluetooth Connection
natural resources and to guarantee that this waste is processed in a manner that is safe for health and the environment. For more information about how to collect electric and electronic equipment and appliances, batteries and accumulators, please contact your local Council or Public Authority competent to issue the relevant permits. WIFI - BLUETOOTH CONNECTION EASY CONNECT PLUS Procedure if only valid for models with EASY CONNECT PLUS Wi-Fi technology. -
Page 14: Navel Stand Alone
NAVEL STAND ALONE Procedure if only valid for models with NAVEL STAND ALONE Wi-Fi technology. ATTENTION! Installation must ONLY be carried out by specialised personnel. The manufacturer will not be held responsible for injury to persons or damage to property or in the event of failed operation. -
Page 15: Use
INTRODUCTION To have the best performance with the lowest consumption please follow the here descripted instructions. • The lightning of the pellets occurs very easily if the installation is correct and if the chimney flue is efficient. • Switch on the stove at Power 1 for at least 2 hours in order to enable the materials which make up the boiler and the fireplace to adjust the inner springing stress. -
Page 16: Settings Menu
Date and time setting To set the date and time act as follows: • Press the “menu” button. • Select “Time and Date”. • Select by pressing “menu” • Scroll with the arrows and select the variables to be modified one at a time: Day, Hours, Minutes, Day number, Month, Year. •... - Page 17 d - Tone This function is disabled by default, so to enable act as follows: • Press the “menu” button. • Scroll to “Settings” using the arrows • Press “menu” to confirm. • Scroll to “Tone” using the arrows. • Press “menu” to confirm. •...
-
Page 18: Info Menu
• Press “menu” to confirm. • Select the test to be performed with the + - keys • Press “menu” to confirm and “esc” to exit k - “Chimney Sweep Function" To activate the “Chimney Sweep Function” function act as follows: •... -
Page 19: Failed Ignition
Fig. 8 - Big flame Fig. 9 - Small flame FAILED IGNITION If pellets should not ignite, the lack of ignition will be signalled by the A01 "No Ignition" warning. If the ambient temperature is below 5°C, the resistance may not heat up enough to guarantee the pallet ignition. In this case, remove the unburned pellets from the burning pot and restart ignition. -
Page 20: Programmed Mode (Timer) - Main Menu
Note: The full stop to the right of the ambient temperature shown in the control panel display (upper right) indicates the half degree (e.g. 23.° means 23.5°C). Air Fan Speed - this function allows selecting the desired speed for the ambient fans from 1 to 5 or A. A means automatic, venti- lation depends on power, recommended setting (see Fig. -
Page 21: Programming Examples
At this point it will propose 00:00 as starting time, with key + - adjust the starting time and press the “menu” key to confirm. The next step proposes a shutdown time of 10 minutes above that set for start-up: press the + key and adjust the shutdown time, confirm with the “menu”... -
Page 22: Sleep Function (Main Menu)
Fig. 14 - Active eco 1 Fig. 15 - Active eco 2 Fig. 16 - Active eco 3 On the upper display the minutes for the Eco Stop countdown are shown. The flame goes to P1, where it remains until the set "t Off Time Eco"... -
Page 23: Chimney Sweep Function
9.18 CHIMNEY SWEEP FUNCTION (FOR MAINTENANCE TECHNICIANS ONLY) - SEE SECTION K SET- TINGS MENU A PAG. 10 This function can be activated only when the boiler is on and with power output and heating operation power with parameters P5, with fan (if present) in V5. Any loading/smoke ventilation percentage corrections must be taken into account. This status lasts 20 minutes, the countdown is displayed on the panel. -
Page 24: Ventilation
Fig. 20 - Door open Fig. 21 - deteriorated gasket Fig. 22 - Timer: 90 seconds To operate correctly, the stove must work with the pellet hopper door always closed; should it remain open for more than 90 seconds, the stove switches off. •... -
Page 25: Safety Devices And Alarms
Used batteries contain metals which are harmful for the environment; they must therefore be disposed of separately in the special containers. Fig. 24 - Remote control LEGEND Fig. 25 Button 1 Increase the desired temperature (5÷35 °C) Button 2 Decrease the desired temperature (35÷5 °C) Button 3 On / off Button 4... -
Page 26: Electrical Safety
11.5 ELECTRICAL SAFETY The product is protected against sudden current surges by a main fuse in the power supply panel on the rear part of the product. Other fuses that protect the electronic boards are found on the latter. 11.6 SMOKE FAN If the fan stops, the electronic board promptly shuts off the pellets supply and an alarm message is displayed. -
Page 27: Alarm Reset
PANEL ALERT TYPE OF PROBLEM SOLUTION Wait for the cooling stage to end, cancel the alarm and restart the boiler setting the fuel loading at minimum (SETTINGS menu - Pellet Recipe). The temperature of the pellets hopper or the A03 Thermostat water temperature exceed the envisioned Check that dust does not clog the aeration grid on the alarms... -
Page 28: Hopper Cleaning
Check that there is no excessive ash accumulated under the burning pot compartment. If it exceeds 2 cm of height, we recommend sucking it. REMEMBER THAT ONLY A CORRECTLY POSITIONED AND CLEAN BRAZIER CAN GUARANTEE START-UP AND OPTI- MAL OPERATION OF YOUR PELLET PRODUCT. For the brazier to be cleaned properly, remove it from its housing completely and thoroughly clean all the holes and the grate on the bottom. -
Page 29: Glass Cleaning
To clean ceramic or stone panels use a soft and dry cloth. If using any cleaners this will seep through the crazings putting them in evidence. 12.8 GLASS CLEANING The glass-ceramic of the fire door is able to stand till 700°C but not to thermal shocks. The probable cleaning with usual sale product for glass cleaning must be effected at cool glass in order to avoid explosions. - Page 30 PROBLEM CAUSE SOLUTION INTERVENTION Empty hopper Full the hopper. Open fire door or Close fire door and pellet door and check that there are no open pellet door pellet grains at the gasket level. Clogged stove Fume chamber cleaning Pellets do not reach the combu- Auger blocked by a stion chamber...
- Page 31 PROBLEM CAUSE SOLUTION INTERVENTION Check as following: probable obstructions of the combusti- Not sufficient ble air inlet from the back or from the bottom of the stove; combustion air burning pot obstructed holes with too ash remains. Have the fan blades and auger cleaned. The exhaust chimney is partially or totally obsturcted.
- Page 32 Rev. 00 - 2022 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy www.pegasoheating.com Tel. +39.0438.738669 Fax +39.0438.73343...
