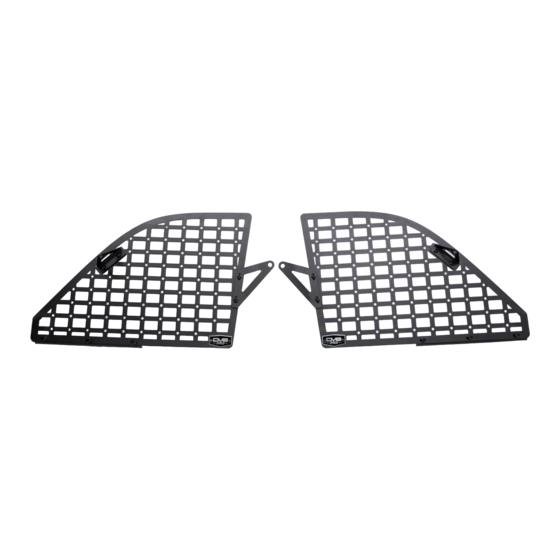

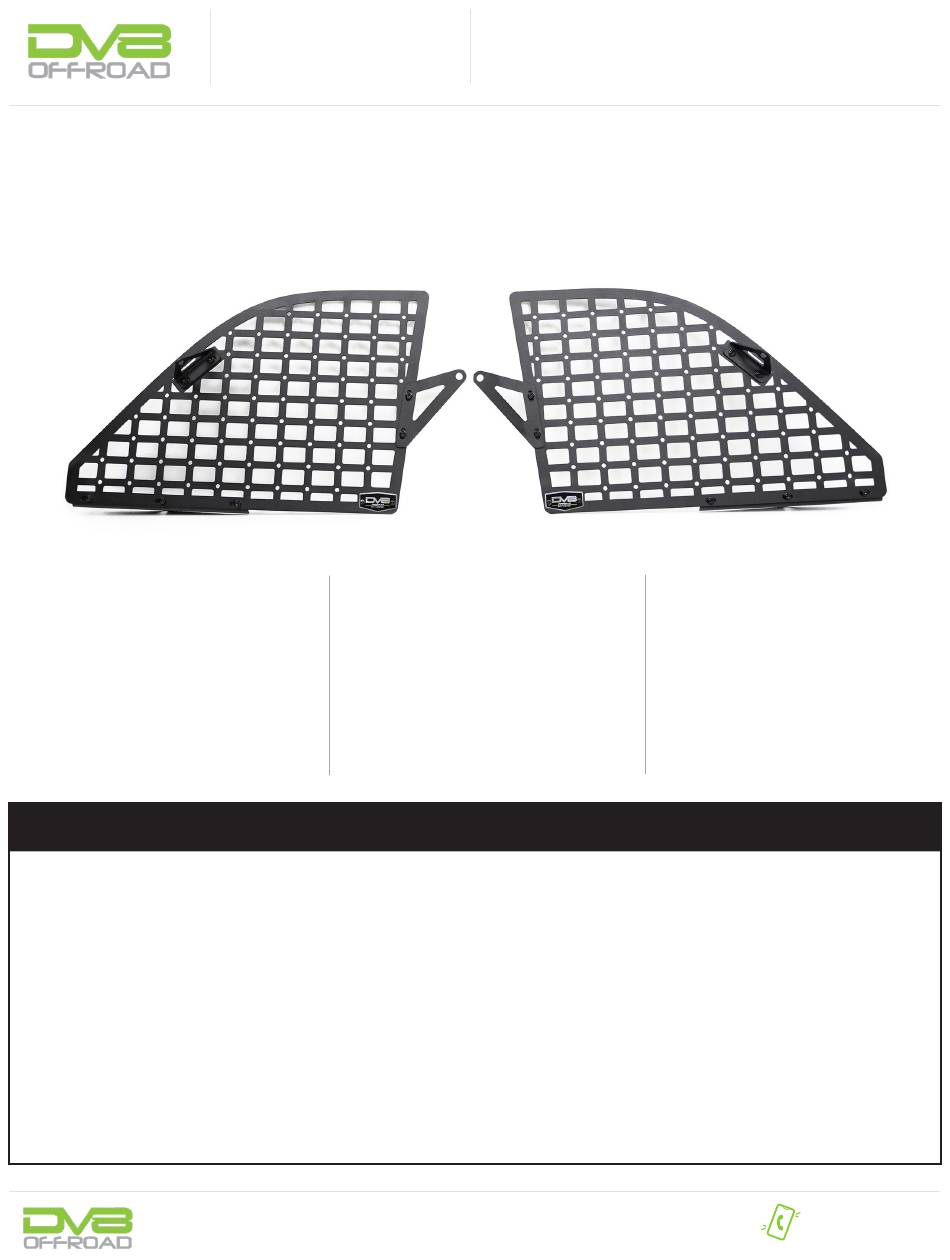

Rear Interior Window Molle Panel
2021+ FORD BRONCO
MPBR-01
TOOLS
REQUIRED
-Ratchet
-4mm Allen Bit
-13mm Socket
-T50 Torx Bit
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1.5 Hours
Time to install this should only
take about an hour and a half.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DV8 MPBR-01
Summary of Contents for DV8 MPBR-01
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concens, please contact the company the product was purchased from. HARDWARE INCLUDED (2) M8x30 Hex (2) M8 Flat Washers (14) M6x20 (14) M6 Flat Washers STEP 1 | Install the small “L”...
- Page 3 INSTALLATION MANUAL STEP 2 | Install the other smaller bracket in the orientation shown on the same side that the logo is located. Use a 4mm allen bit and the provided M6 hardware. Leave loose to allow for adjustment. STEP 3 | Install the larger bracket on the side of the molle panel without the logo, in the orientation shown.
- Page 4 INSTALLATION MANUAL STEP 4 | Moving to the interior of the vehicle, remove the plastic trim from the seat belt to access the bolt. Use a T50 torx bit the remove the seat belt pulley. STEP 5 | Use a T50 to remove the two factory bolts securing the hardtop.
- Page 5 INSTALLATION MANUAL STEP 6 | Maneuver the molle panel into the approximate location install and loosely secure with a T50 and the factory hardtop bolts. This will allow for adjustment until installation is finished. STEP 7 | Secure the mount at the seat belt by placing the spacer behind the mount and installing the seatbelt over it using a T50 and the factory bolt.
- Page 6 INSTALLATION MANUAL STEP 8 | Secure the small “L” bracket at the rear of the roll bar using the provided M8 hardware and a 13mm socket. STEP 9 | Finish securing all M6 hardware using a 4mm allen bit. Secure the factory hardtop bolts using a T50.
- Page 7 INSTALLATION MANUAL STEP 10 | To remove the top and run the molle panel is very simple. Remove the hardtop bolts using a T50. Remove the bottom three M6x20 using a 4mm allen head. Remove the bracket and proceed with removal of hardtop.
- Page 8 INSTALLATION MANUAL STEP 11 | Congratulations, you are finished with the install of the 21+ Ford Bronco Rear Window Interior Molle Panels. NEED HELP? 855-680-9595...
