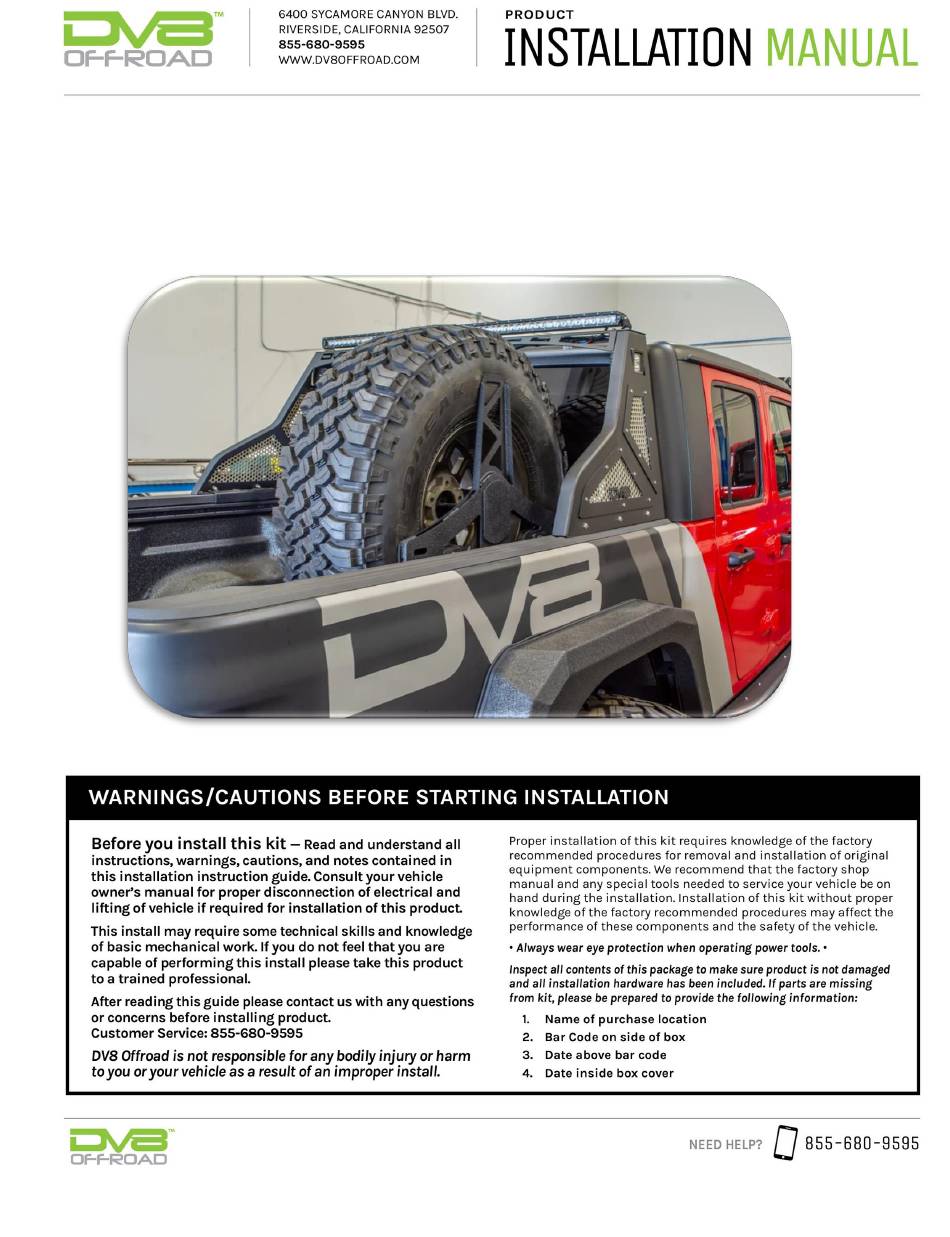

- Page 1 TCGL-02 Jeep Gladiator JT In-Bed Stand Up Tire Carrier...
- Page 2 (NOTE: This requires the use of the Jeep “Trail Rail Management System”) 2. Depending on the side of the vehicle you intend to mount the TCGL-02, reference images below for the layout of the lower floor bracket.
- Page 3 4. Move the lower bottom bracket in place. In the side of the JT, you have two holes, a threaded and non-threaded. Using the supplied hardware, loosely thread lower bottom bracket into side of bed. 5. Next, install the two slide brackets into the rail. You will need to use the large access hole in the front to fit the mounts into the rail.
- Page 4 6. Using the provided hardware, mount the main carrier to the lower bottom bracket. Keep carrier loose at this point. 7. Once carrier is loosely attached to the lower bottom bracket, attached the rail bracket to the carrier and the two slide brackets.
- Page 5 8. Maneuver carrier into desired position and tighten all hardware. Ensure to tighten slide bracket bolts to lock position. After ALL hardware it secure, mark hole at end of lower bottom bracket. Drill ½” hole and secure with bolt and nut. (Drilled stability hole recommended for 35” or larger tires) 9.
