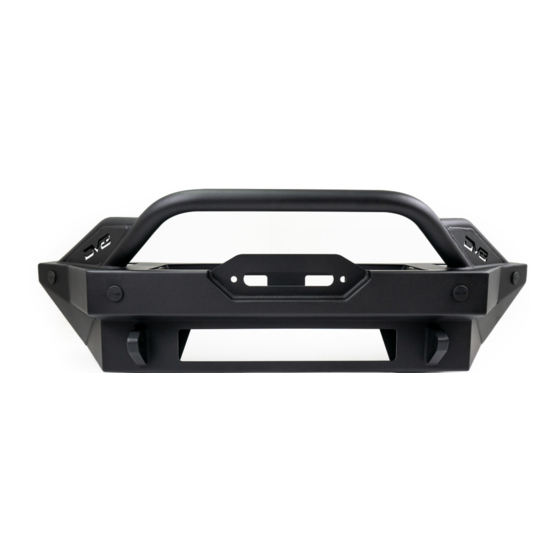

FS-15 Series Front Bumper
2021 FORD BRONCO
FBBR-02
TOOLS
REQUIRED
- #3 Allen
- Zip Ties
- 18mm & 21mm Socket
- 21mm Wrench
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 2 to 3 people
Intermediate skill level required.
Additional help will be needed
when removing factory bumper.
Read and understand all
PRODUCT
INSTALLATION
TIME
- Approximately 2.5 Hours
Time to install this should
take about 2.5 hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Related Manuals for DV8 FS-15 Series
Summary of Contents for DV8 FS-15 Series
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP REMOVAL OF FACTORY STEEL BUMPER Begin by removing the front plastic d-ring guards. Using a screwdriver or push pin remover, remove the (2) pins on the bottom and (2) near the top of the d-ring mount. Pull the top half away from the Bronco and set to the side.
- Page 3 INSTALLATION MANUAL STEP Once all bolts are loose, remove the plug for the fog lights and front sensors if equipped. This is located at the back end of the grill on the driver side. STEP Once unplugged, remove all (6) bumper bolts and d-rings mounts.
- Page 4 INSTALLATION MANUAL STEP Remove the rubber/plastic shroud under the grill by pulling the tabs on the shroud away (up/down) from vehicle while pulling the shroud from the vehicle. STEP If you do not have adaptive cruise control, remove the plastic cover by pushing the clip on the top down while pulling away from Bronco, and set off to the side.
- Page 5 INSTALLATION MANUAL STEP If equipped with sensors, remove the main bumper brackets from the backside of the bumper using a 13mm socket, remove the (4) hex head bolts. STEP Next, using a T40 torx bit, remove the (6) bolts securing the mount in place. Once removed, gently separate mount from bumper, and set off to the side.
- Page 6 INSTALLATION MANUAL STEP To remove the wire harness, using a flat head screwdriver or pin puller, remove all the retaining clips securing the harness to the bumper. STEP To remove the sensors, spread the two tabs on the sensor bezel and gently pull up on the sensor.
- Page 7 INSTALLATION MANUAL STEP INSTALLATION OF DV8 BUMPER Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Hardware Included: (6) M12x50mm Bolts (4) M6x20mm Bolts...
- Page 8 INSTALLATION MANUAL STEP Lean the bumper back and fit the sensor bezels into place. Note: Our bumpers are designed to accept both factory metal bumper and plastic bumper sensor bezels. All cutouts are cut differently to ensure each bezel is placed into the correct hole.
- Page 9 INSTALLATION MANUAL STEP If you will be installing a winch, you will want to install that now. Using the hardware provided with your winch, secure the winch into place according to the winch manufacturers specifications. Secure the wiring up and away from the back of the bumper.
- Page 10 INSTALLATION MANUAL STEP Install light onto mount using hardware provided with light and secure wiring using zip tie tabs onto the bumper. STEP Reinstall the factory nut plates on the backside of the frame mounting plates. 855-680-9595 NEED HELP?
- Page 11 INSTALLATION MANUAL STEP With assistance, hold the bumper up to the frame plates and install using the provided M12 hardware using a 18mm socket. STEP As you tighten the hardware, level the bumper to your preference and secure the bolts to 70ft lbs. STEP If running a winch, run the wiring through the rear access holes of the...
- Page 12 Align with the bumper and the grill, and secure. STEP Double check all hardware and connect lights and winch to power supplies. You are now done with the install of your new DV8 FS-15 Series Front Bumper. 855-680-9595 NEED HELP?
