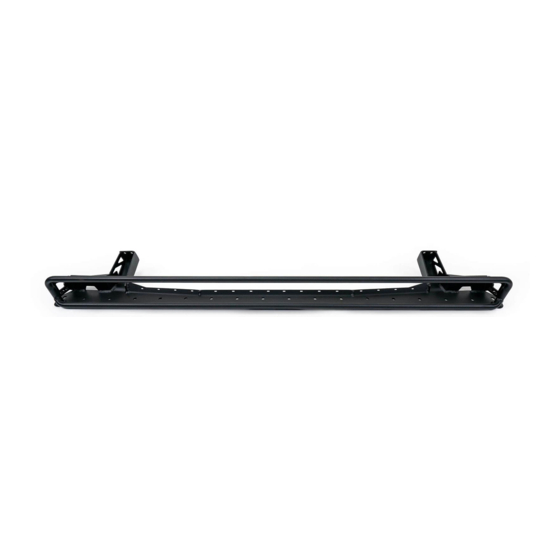

Light Bar Bracket
2021+ FORD BRONCO
LBBR-01
TOOLS
REQUIRED
- 10mm & 13mm socket
- #5 Allen head
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 person
Little skill level required - you can
easily install it by yourself.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Table of Contents
Related Manuals for DV8 LBBR-01
Summary of Contents for DV8 LBBR-01
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Hardware Included: (2) M8x15 Bolts (2) M8 Lock Nuts (4) M8 Flat Washers STEP Remove the factory accessory mount cover over the windshield by pressing...
- Page 3 Install the light to the mount and secure. If using a light bar, use the two M8 bolts provided for a cleaner look. Note: We used a DV8 elite 52” Dual Light Bar for our install. 855-680-9595 NEED HELP?
- Page 4 INSTALLATION MANUAL STEP If using the DV8 elite light bar, use the two provided mounting feet and the provided M8 hardware and slide the bracket under the side support. Use the most outside mounting hole to secure the brackets. Install the light bar using the hardware provided with the light.
- Page 5 Your wiring may vary. Note: Do not hide wiring that will obstruct any airbags equipped on vehicle to prevent possibly injury. STEP You are now done with the install of your new DV8 Light Bar Bracket. 855-680-9595 NEED HELP?
