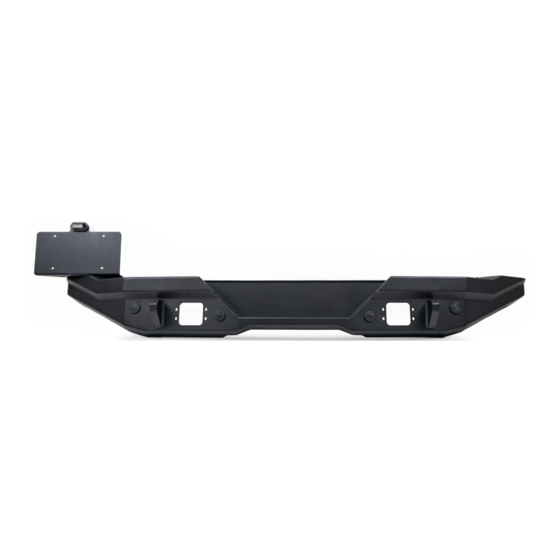

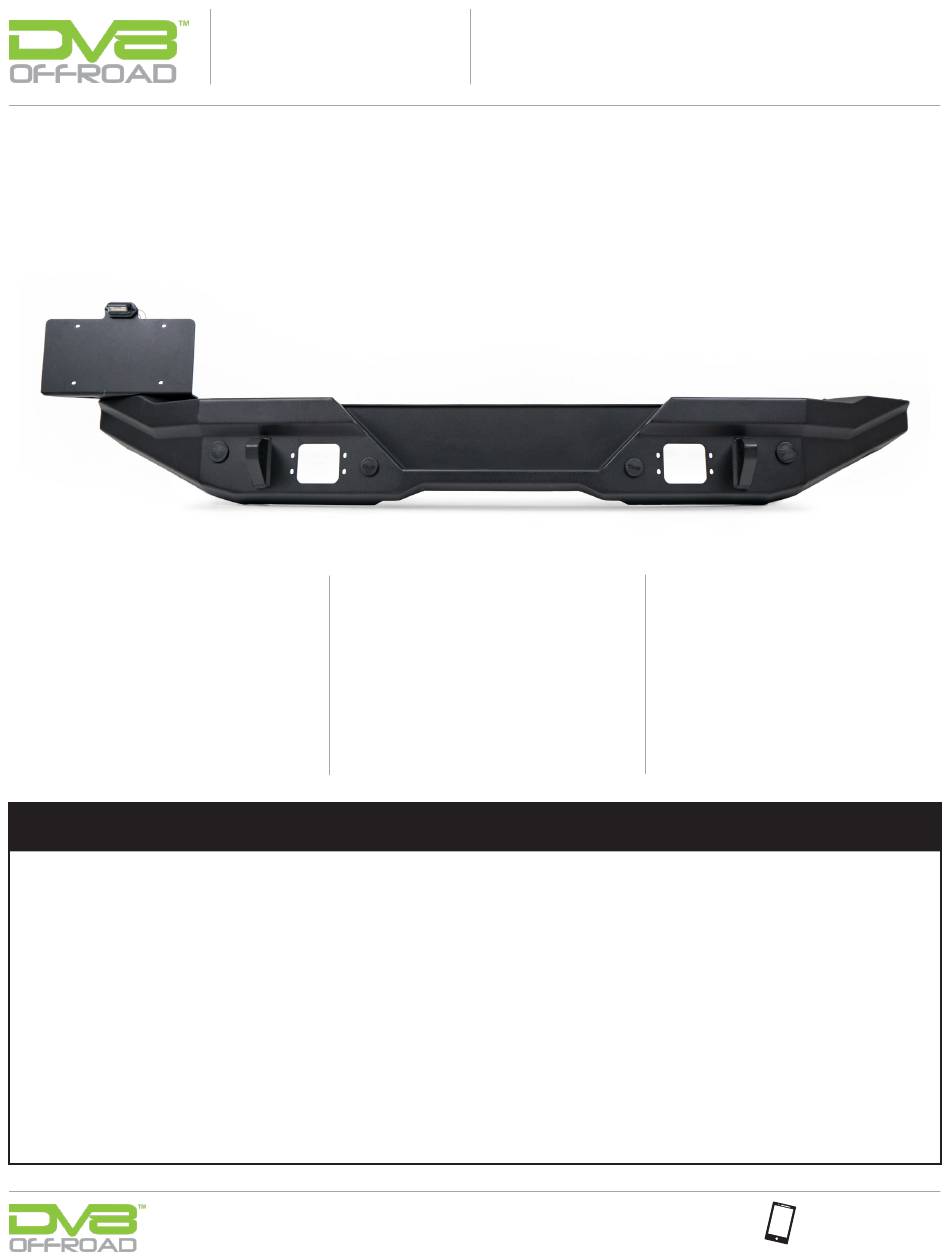

High Clearence Rear Bumper
2021+ Bronco
RBBR-02
TOOLS
REQUIRED
- 10,13,18, 21mm Sockets
- #4 Allen Head
- Zip Ties
- Silicone (Optional)
- Electrical Tape
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 to 2 People
Little skill level required.
Read and understand all
PRODUCT
INSTALLATION
TIME
- Approximately 2.5 Hours
Time to install this should
take about 2.5 hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Related Manuals for DV8 RBBR-02
Summary of Contents for DV8 RBBR-02
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP Unplug the factory bumper from the Bronco. Locate the small plug just to the rear of the rear wheel wells on each side of the bumper. STEP Using a 13mm socket, unbolt the side bumper supports on each side of the bumper just outside of the frame rails.
- Page 3 INSTALLATION MANUAL STEP Once bumper is removed, lay on soft surface face down. Unclip the license plate light by squeezing the plug and pulling away from the bumper. STEP Remove the thirteen bolts holding the three center brackets using a 13mm socket.
- Page 4 INSTALLATION MANUAL STEP Using a push pin removal tool, remove point where the wire harness is connected to the bumper or brackets. STEP Remove the two center sensors from the sensor bezels by spreading the two tabs on the bezels and pull the sensor up.
- Page 5 STEP Carefully, pull the wire harness away to be used on your new DV8 bumper. You are now done with the removal of your Bronco bumper. 855-680-9595...
- Page 6 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Hardware Included: (4) M14x35mm Bolts (4) M6 Lock Nuts (4) M14 Nuts (8) M6 Flat Washers (4) M14 Split Nuts (8) M14 Flat Washers...
- Page 7 INSTALLATION MANUAL STEP To install the sensor bezels into the bumper, identify the location of the bezel by reading the identifier on the bezel. For example, our image shows “ROR” which stands for rear outer right. STEP On the two center bezels, you will need to trim down the tabs on the side to allow for the thicker material our bumper uses.
- Page 8 INSTALLATION MANUAL STEP Lean the bumper back and fit the two inner sensor bezels into place. Note: Our bumpers are designed to accept both factory metal bumper and plastic bumper sensor bezels. All cutouts are cut differently to ensure each bezel is placed into the correct hole STEP Install the sensors by holding the face...
- Page 9 You can also utilize a small dab of silicone between the backside of the bezel and the front face of the bumper. Note: On the DV8 bumper, these should be oriented down. 855-680-9595 NEED HELP?
- Page 10 STEP We are installing two 3” flush mount pods (not included). Note: We are running two 3” Flush Mount DV8 elite lights. STEP To wire up the license plate light you will need to cut off the factory connector and wire it to our new LED light, or you can opt to wire in a new plug for easy on and off connection.
- Page 11 INSTALLATION MANUAL STEP To install the license plate bracket, using a #4 allen head, remove the four screws holding on the driver side mesh. Place the bracket into place and reuse the hardware to secure the bracket to the bumper. The mesh can be removed or reused with the bracket based on your preference.
- Page 12 INSTALLATION MANUAL STEP Using a 21mm socket and 21mm wrench, use the M14 hardware to loosely install the main bumper bracket to the bumper. 855-680-9595 NEED HELP?
- Page 13 INSTALLATION MANUAL STEP With assistance, lift the bumper to the truck and reusing the factory M12 bolts, install the lower four bolts tightening to 70 ft lbs. STEP After the bumper is aligned with the vehicle, tighten all six M14 bracket bolts to the bumper to 70 ft lbs.
- Page 14 INSTALLATION MANUAL STEP Plug in connectors on both sides of the bumper and check the function of the license plate light and sensors. STEP Double check all hardware and connections. Wire rear lights to your preference. 855-680-9595 NEED HELP?
